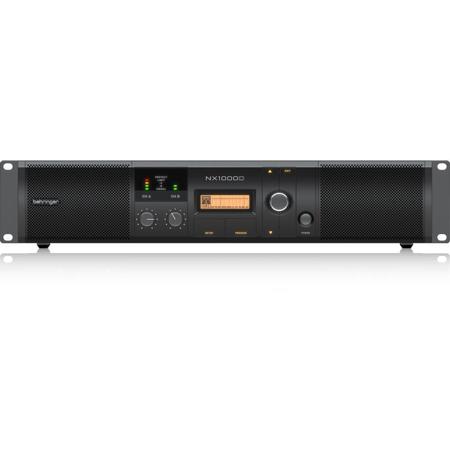

Behringer NX1000D 2-Channel 1000W Class-D Power Amplifier with DSP Control and Impedance Compensation

SKU: BENX1000D MFR: 000-CHV02-00010
Earn VIP Reward Points

Key Features

  • Experience powerful, reliable sound with this 1000W Class-D power amplifier.
  • Optimize your audio with DSP control, featuring EQ and delay for each channel.
  • Achieve superior sound quality with a high damping factor for clear audio output.
  • Ensure consistent performance with comprehensive protection against DC faults.
  • Enjoy low distortion (<0.05% THD+N) for pristine audio across the frequency range.
  • Versatile connectivity with XLR/1/4" inputs and speakON outputs for easy setup.
See More Product Details
On Backorder?Expected Availability: 10/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Behringer NX1000D Specifications

Amplifier

Amplifier

Jump to...
  • Number of Channels

    2

  • Amplifier Power Rating

    2 Ohms:
    500 W Peak per Channel
    4 Ohms:
    300 W Peak per Channel
    1000 W Peak Bridged
    8 Ohms:
    160 W Peak per Channel
    620 W Peak Bridged

  • Amplifier Class

    Class-D

Performance

Jump to...
  • Protections

    DC Fault, DC Offset, On/Off Muting, Thermal

  • Frequency Response

    20 Hz to 20 kHz +0/-1 dB

  • Damping Factor

    > 155 at 8 Ohms

  • Input Sensitivity

    0.775 V

  • Input Impedance

    20 Kilohms (Balanced)
    10 Kilohms (Unbalanced)

  • Max Input Level

    +26 dBu

  • SNR

    > 100 dB

  • THD+N

    < 0.05% (20 Hz to 20 kHz for 1 W)
    < 0.04% (1 kHz and 1 dB Below Clipping)

  • Distortion

    0.1%

Signal Processing

Jump to...
  • Audio Delay

    Adjustable Up to 300 ms per Channel

  • EQ

    8-Band Parametric EQ per Channel

  • Limiting

    Zero-Attack

Connectivity

Jump to...
  • Analog Audio I/O

    2x Combo XLR-1/4" 3-Pin Female Balanced/Unbalanced Line Input
    2x speakON NL4 Speaker Output

  • Digital I/O

    No

  • Network I/O

    No

  • USB I/O

    1x USB-B (Host Connection, Remote)

  • Mobile App Compatible

    No

  • Wireless

    No

  • AC Input Power

    100 to 120 VAC, 50 / 60 Hz

  • AC Power Connector

    1x IEC 15 A / NEMA 5-15

  • Power Consumption

    120 VAC, 2 Ohms:
    150 W (1/8 Power)

Physical

Jump to...
  • Display & Indicators

    Front Panel:
    1x Amber LCD (Backlit)
    3x LED (Limit/Protect/Signal, per Channel)

  • Rackmount Size

    2 U

  • Cooling

    Fan (Variable Speed)

  • Color

    Black

  • Dimensions

    19 x 3.7 x 0.4" (48.3 x 9.4 x 0.91cm)

  • Weight

    7.5 lbs (3.4kg)

  • UPC Code

    653341314437

About Behringer NX1000D

The NX1000D power amplifier packs 1000 Watts (2 x 500 Watts @ 2 Ohms; 2 x 300 Watts @ 4 Ohms; 1000 Watts into 4 Ohms bridge mode) into exceptionally lightweight (7.5 lbs / 3.4 kg) and rack-mountable packages. Plus, the built-in DSP and 24-bit/ 96 kHz converters ensure the ultimate signal integrity with an extremely broad dynamic range. And because the NX1000D is so much more efficient than conventional designs, it runs cooler and doesn't require the massive heat sinks and heavy toroid transformers typically associated with its conventional counterparts. Thanks to our "Zero-Attack" limiters that offer maximum output level with exceptionally-reliable overload protection and SmartSense Loudspeaker impedance compensation, which provides fully linear frequency response at any speaker load impedance, you can run the NX1000D full-out for hours on-end. Our revolutionary high-density Class-D technology, combined with an ultra-efficient, switch-mode power supply ensure this feather-light powerhouse will drive your rig effortlessly for many years to come.

Class-D - Massive Power, Perfect Sound
Thanks to our High-Density Class-D amplifier Technology, we are able to provide you with enormous power and incredible sonic performance in an easy-to-use, ultra-portable and lightweight package. Class-D amplification makes all the difference, offering the ultimate in energy efficiency - and eliminating the need for heavy power supplies and massive heat sinks. This amazing technology makes it possible to design and build extremely-powerful products that are significantly lighter in weight than their traditional counterparts, while using less energy and protecting the environment.

Sublimely Simple Operation
The front panel controls and indicators provide your system's vital signs at a glance. After pressing the Power button, the Power LED lights to show the amp is ready for action. All channels feature positive-detent Gain controls with Signal LEDs that light when a signal is present, as well as Limit LEDs to indicate when the amplifier is running at full capacity. Just as elegant as the front, the rear panel is home to the combo XLR and 1/4" TRS Input connectors, making the NX1000D compatible with virtually any source, balanced or unbalanced. Professional twist-lock speaker sockets are provided to ensure every drop of output power gets to your loudspeakers.

NX DSP
For sound engineers requiring high-level control capability, the NX1000D amplifier comes ready for action right out-of-the-box. The built-in DSP and 24-bit/96 kHz converters ensure the ultimate signal integrity with an extremely broad dynamic range. DSP section features sophisticated delay, crossover (3 filter types, up to 48 dB/octave), EQ (8 parametric, 2 dynamic), dynamics processing and lockable security settings. A convenient front panel LCD display allows you to setup and make adjustments directly at the amplifier, without the need for a PC.

SmartSense Impedance Compensation
Our new SmartSense Technology puts the punch back into Class-D amplification, providing vastly improved full-range frequency response with more powerfully-dynamic bass, and smoother high-frequency reproduction. The resulting output is no longer dependent on the actual load, but is rendered perfectly ruler flat via impedance compensation. NX1000D's design also incorporates a significantly-higher damping factor that yields better amplifier control over the loudspeaker for stronger audio reproduction - especially in the LF area.

NX EDIT Remote Control Software
You can also set up, control and monitor your NX1000D amplifier using your computer via USB - and immediately gain access to a whole new level of amplifier control. NX EDIT is the ideal way to manage installed systems, and to create custom presets for live sound and production environments.

Sound Value
Sporting massive output ratings, built-in DSP and 24-bit/96 kHz converters, lightweight Class-D technology and an equally lightweight price tag - plus all the amenities a professional audio engineer could ask for - the BEHRINGER NX1000D power amplifier is a serious amp for your most demanding applications.

Behringer NX1000D Features

  • Delivers 2 x 500 Watts into 2 Ohms; 2 x 300 Watts into 4 Ohms; 1000 Watts into 4 Ohms (bridge mode) and weighs less than 7.5 lbs (3.4kg)
  • Ultimate reliability through revolutionary cool-running High-Density Class-D technology with "near-zero" thermal buildup
  • Ultra-efficient switch-mode power supply for noise-free audio, superior transient response and low power consumption
  • High-performance DSP and 24-bit/96 kHz converters deliver ultimate signal integrity and extreme dynamic range
  • DSP section features sophisticated delay, crossover (3 filter types, up to 48 dB/octave), EQ (8 parametric, 2 dynamic), dynamics processing and lockable security settings
  • SmartSense Loudspeaker impedance compensation features fully linear frequency response at any speaker load impedance
  • Front panel LCD display enables setup and adjustment without PC
  • Can be set up, controlled and monitored via rear panel USB connector. Powerful remote software downloadable at behringer.com
  • "Zero-Attack" limiters offer maximum output level with reliable overload protection
  • Built-in Subwoofer/Satellite crossover for perfect subwoofer operation
  • Detented gain controls for precise level setting
  • Precise 4-segment Signal and Limit LEDs to monitor performance
  • XLR and 1/4'' TRS combination input connectors for compatibility with any source
  • Professional twist-lock speaker connectors for ultimate reliability
  • Independent DC, LF and thermal overload protection on each channel automatically protects amplifier and speakers without shutting down the show
  • "Back-to-front" ventilation system prevents thermal buildup for reliable operation

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Product Documents

User Manual

Key Features

  • Experience powerful, reliable sound with this 1000W Class-D power amplifier.
  • Optimize your audio with DSP control, featuring EQ and delay for each channel.
  • Achieve superior sound quality with a high damping factor for clear audio output.
  • Ensure consistent performance with comprehensive protection against DC faults.
  • Enjoy low distortion (<0.05% THD+N) for pristine audio across the frequency range.
  • Versatile connectivity with XLR/1/4" inputs and speakON outputs for easy setup.

What's in the box:

  • Behringer NX1000D 2-Channel 1000W Class-D Power Amplifier
  • AC Power Cord
  • Adorama 1 Year Limited Warranty
