Kit Savings

Behringer XENYX Q1204USB Premium 12-Input 2/2-Bus Mixer, Bundle with TAPH100 Headphones and 2x 50' XLR Microphone Cable

SKU: BEQ1204USBK MFR: 000-AKV02-00010 K
$290.89
Earn VIP Reward Points

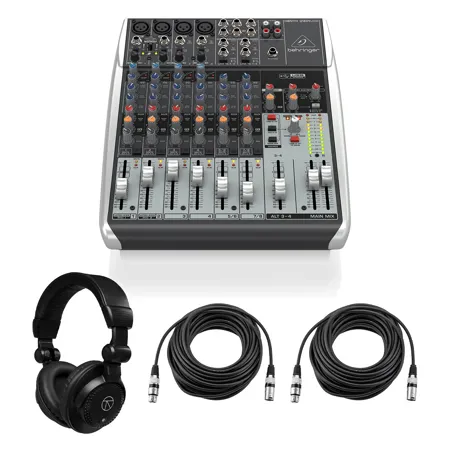

PACKAGE INCLUDES:

  • Behringer Xenyx Q1204USB Premium 12-Input 2/2-Bus Mixer
    Behringer Xenyx Q1204USB Premium 12-Input 2/2-Bus Mixer
  • +
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
    Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • +
  • H&A Value Series XLR M to F Professional Microphone Cable - 50'
    H&A Value Series XLR M to F Professional Microphone Cable - 50'

    Qty: 2

  • +
  • Show more

Key Features

  • Achieve crystal-clear sound for your podcasts and live streams with premium XENYX Mic Preamps.
  • Effortlessly integrate with your computer for recording and playback using the built-in USB audio interface.
  • Shape your audio precisely with the 3-band equalizer, perfect for any recording or live sound scenario.
  • Enjoy versatile connectivity with 12 inputs, ideal for bands, home studios, or public speaking events.
  • Experience professional-grade audio quality with low-latency monitoring, enhancing your production workflow.
  • This portable mixer, bundled with headphones and XLR cables, offers a complete solution for on-the-go audio needs.
See More Product Details
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Behringer Q1204USB Specifications

Mono Inputs

Mono Inputs

Jump to...
  • Microphone inputs

    4x (XENYX Mic preamp)

  • Type

    XLR connector, balanced, discrete input circuit

  • Mic E.I.N. (20 Hz - 20 kHz)

    0 Ohm source resistance: -132 dB / -134 dB A-weighted
    50 Ohm source resistance: -131 dB / -132 dB A-weighted
    150 Ohm source resistance: -128 dB / -131 dB A-weighted

  • Frequency response

    <10 Hz - 150 kHz (-1 dB)
    <10 Hz - 200 kHz (-3 dB)

  • Gain range

    +10 dB to +60 dB

  • Max. input level

    +12 dBu @ +10 dB gain

  • Impedance

    2 k Ohm balanced

  • Signal-to-noise ratio

    108 dB / 110 dB A-weighted (0 dBu In @ +22 dB gain)

  • Distortion (THD+N)

    0.005% / 0.004% A-weighted

  • Phantom power

    Switchable, +48 V

Line Input

Jump to...
  • Type

    1/4" TRS connector, balanced

  • Impedance

    20 k Ohm balanced, 10 k Ohm unbalanced

  • Gain range

    -10 dB to +40 dB

Frequency Response

Jump to...
  • Max. input level

    30 dBu

  • Mic In/ Main Out

    <10 Hz - 160 kHz: +/-3 dB

Stereo Inputs

Jump to...
  • Type

    2x 1/4" TRS connector, balanced

  • Impedance

    20 k Ohm balanced, 10 k Ohm unbalanced

  • Gain range

    -20 dB to +20 dB

  • Max. input level

    +22 dBu

2-Track In

Jump to...
  • Type

    RCA connector

  • Impedance

    10 k Ohm

  • Max. input level

    +22 dBu

Equalizer 3-Band

Jump to...
  • Low

    80 Hz / +/-15 dB

  • Mid

    2.5 kHz / +/-15 dB

  • High

    12 kHz / +/-15 dB

AUX Sends

Jump to...
  • Type

    2x 1/4" TRS connector, balanced

  • Impedance

    120 Ohm

  • Max. output level

    +22 dBu

AUX Returns

Jump to...
  • Type

    2x 1/4" TRS connector, balanced

  • Impedance

    20 k Ohm balanced, 10 k Ohm unbalanced

  • Max. input level

    +22 dBu

Main Outputs

Jump to...
  • Type

    XLR connector, balanced

  • Impedance

    240 Ohm balanced, 120 Ohm unbalanced

  • Max. output level

    +28 dBu

Control Room Output

Jump to...
  • Type

    1/4" TRS connector, balanced

  • Impedance

    120 Ohm

  • Max. output level

    +22 dBu

Phones Output

Jump to...
  • Type

    1/4" TRS connector, unbalanced

  • Impedance

    25 Ohm

  • Max. output level

    +21 dBu / 150 Ohm (+25 dBm)

2-Track Out

Jump to...
  • Type

    RCA connector

  • Impedance

    1 k Ohm

  • Max. output level

    +22 dBu

Wireless Input

Jump to...
  • USB dongle

    Accepts signals from 2 independent Behringer ULM mics

Main Mix System Data (Noise)

Jump to...
  • Main mix/channel fade

    -105 dB / -108 dB A-weighted @ -Infinite
    95 dB / -97 dB A-weighted @ 0 dB, -Infinite
    83 dB / -85 dB A-weighted @ 0 dB

Power Supply

Jump to...
  • Mains voltage

    100 - 240 V, 50/60 Hz

  • Power consumption

    40W

  • Fuse (100 - 240 V,50/60 Hz)

    T 1.6 A H 250 V

  • Mains connector

    Standard IEC receptacle

  • Connector

    Type-B

  • Audio

    Stereo in/out

  • Converter

    16-bit

  • Sample rate

    48 kHz

Physical

Jump to...
  • Dimensions (W x D x H)

    10.4 x 13 x 3.50" (264.16 x 330.2 x 88.9mm)

  • Weight

    6.2 lbs (2.81kg)

  • UPC Codes

    192223287181, 713757153911, 192223075504, 192223227576

About Behringer Q1204USB

The compact Q1204USB mixer allows you to effortlessly achieve premium-quality sound, thanks to its 4 onboard studio-grade XENYX Mic Preamps and ultra-musical "British" channel EQs. And our easy-to-use "one-knob" compressors provide total dynamic control for the ultimate in punch and clarity, while respecting all the power and emotion you pack into every note.

Add to this, the sweet forgiveness of our British-style EQs and "Wireless-ready" performance of our high-quality ULM digital Wireless Microphone System (mic not included) - and the Q1204USB becomes an incredibly versatile mixer for your live performances. But the XENYX Q1204USB isn't just designed to handle your live gigs; it also provides the state-of-the-art tools you need to make stunning, professional-quality recordings. Along with its built-in USB/audio interface, the Q1204USB mixer comes with all the recording and editing software needed to turn your computer system into your own personal high-performance home recording studio.

Sonically Superior Mic Preamps
The XENYX Q1204USB gets its name from our legendary, high headroom XENYX mic preamps, which have been praised by audio engineers all over the world. These state-of-the-art mic Preamps represent a major step in the evolution of audio technology - and they can easily hold their own, even when compared to the most expensive stand-alone mic preamps. XENYX preamps off er a staggering 130 dB of dynamic range, with a bandwidth that extends from below 10 Hz to well above 200 kHz. Armed with these outstanding mic preamps, the XENYX Q1204USB provides such transparent, crystal-clear performance you just might think someone upgraded your mics while you weren't looking.

One-Knob Compression
Ask professional sound engineers what their favorite piece of external processing gear is and the majority response will be virtually unanimous - dynamic compression. What is compression? We're glad you asked. Compression essentially limits the dynamic range of a signal, lowering the level of loud sounds and turning up softer sounds, to achieve sonic balance.

But applying compression is a delicate art that many novice, and even intermediate, sound techs fi nd challenging. Our "one-knob" compression is available on all mono channels and is easy to operate, even for entry-level users. With this one knob, you can easily dial in the perfect amount of compression for instruments and vocals, creating powerful mixes with punch and clarity. This is indeed a rare feature for products in this class - but standard on the XENYX Q1204USB mixer.

Sublimely Musical British EQ
The British consoles of the 1960s and '70s changed the sound of rock and roll - without them the British Invasion might not have happened. Those legendary mixing desks soon became the envy of engineers and producers all over the world. The channel EQ on our XENYX Q1204USB is based on that very same circuitry, allowing you to imbue signals with incredible warmth and detailed musical character. Even when applied generously, these equalizers exhibit sweet forgiveness and superb audio quality.

Recording Bliss
There was a time when the recording process called for lots and lots of expensive gear, which meant the average musician had to buy time at a recording studio - and that time was pricey indeed. But modern technology has put personal recording well within the reach of virtually anyone with access to a computer.

How do you get all that music flying around your brain into your computer? That's where the XENYX Q1204USB comes in. Thanks to the built-in, bi-directional stereo USB audio interface, you can connect any of these mixers directly to your PC or Mac computer via a single USB cable. Now any signal source you connect to the mixer can be recorded directly to your hard drive.

Behringer Q1204USB Features

  • Premium ultra-low noise, high headroom mixer
  • 4 state-of-the-art, phantom-powered XENYX Mic Preamps comparable to stand-alone boutique preamps
  • 4 studio-grade compressors with super-easy "one-knob" functionality and control LED for professional vocal and instrumental sound
  • "Wireless-ready" for high-quality Behringer digital wireless system (not included)
  • Built-in stereo USB/Audio Interface to connect directly to your computer
  • Neo-classic "British" 3-band EQs for warm and musical sound
  • 2 aux sends per channel: 1 pre fader for monitoring applications, 1 post fader for external FX devices
  • Clip LEDs and mute/alt 3-4 function on all channels
  • 2 subgroups with separate outputs for added routing flexibility
  • 2 multi-functional stereo aux returns with flexible routing
  • Balanced main mix outputs with gold-plated XLR connectors plus separate control room, headphones and 2-track outputs
  • Control room/phones outputs with multi-input source matrix
  • Long-wearing 60-mm logarithmic-taper faders and sealed rotary controls
  • "Planet Earth" switching power supply for maximum flexibility (100 - 240 V), noise-free audio, superior transient response plus low power consumption for energy saving
  • Designed and engineered in Germany

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Achieve crystal-clear sound for your podcasts and live streams with premium XENYX Mic Preamps.
  • Effortlessly integrate with your computer for recording and playback using the built-in USB audio interface.
  • Shape your audio precisely with the 3-band equalizer, perfect for any recording or live sound scenario.
  • Enjoy versatile connectivity with 12 inputs, ideal for bands, home studios, or public speaking events.
  • Experience professional-grade audio quality with low-latency monitoring, enhancing your production workflow.
  • This portable mixer, bundled with headphones and XLR cables, offers a complete solution for on-the-go audio needs.

What's in the box:

  • Behringer XENYX Q1204USB Premium 12-Input 2/2-Bus Mixer
  • Power Supply
  • Adorama 1 Year Limited Warranty
  • Bundle Includes:
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • 2x H&A 50' Value Series XLR Male to Female Professional Microphone Cable
