18 inputs
6 x XLR microphone inputs
8 x 1/4" TRS line-level inputs
4 x 1/4" TRS left & right paired inputs
3
3 stereo returns
4
2 sub groups
2 x balanced XLR outputs
2 x 1/4" TRS outputs
2 x 1/4" TRS sub outputs
Stereo RCA 2-track outputs
2 x 1/4" TRS control room outputs
1 x 1/4" Stereo headphone output
3-Band EQ with mid sweep on every channel
9-Band stereo graphic EQ
Mute and solo buttons on every channel
60mm faders
Yes
+48 V phantom
12-segment stereo LED meters
Clip LEDs on every channel
XLR, electronically balanced, discrete input circuit
20 to 20000Hz
At 0Ohms source resistance: -134 dB/135.7 dB A-weighted
At 50Ohms source resistance: -134 dB/133.3 dB A-weighted
At 150Ohms source resistance: -129 dB/130.5 dB A-weighted
Preamp:
< 10 to 150,000 Hz (-1 dB)
< 10 to 200,000 Hz (-3 dB)
Mic input to main output:
<10 to 90,000 Hz (+0 dB / -1 dB)
<10 to 160,000 Hz (+0 db / -3 dB)
10 to 60 dB
+12 dBu at +10 dB Gain
Approximately 2.6kOhms balanced
110 dB A-weighted (0 dBu In at +22 dB gain)
0.005% / 0.004% A-weighted
1/4" TRS connector, electronically balanced
Approximately 20kOhms
10kOhms unbalanced
-10 to +40 dB
30 dBu
Main fader closed: 90 dB
Channel muted: 89 dB
Channel fader closed: 89 dB
1/4" TRS connector, electronically balanced
Approximately 20kOhms
22 dBu
Low: 80 Hz, +/- 15 dB
Mid: 100 to 8,000 Hz, +/- 15 dB
High: 12,000 Hz, +/- 15 dB
Low: 80 Hz, +/- 15 dB
Low Mid: 500 Hz, +/- 15 dB
Mid: 3,000 Hz, +/- 15 dB
High: 12,000 Hz, +/- 15 dB
Type: 1/4" TS connector, unbalanced
Impedance: Approximately 120OhmsMaximum Output Level: 22 dBu
Type: 1/4" TRS connector, electronically balanced
Impedance: Approximately 20kOhms balanced, 10kOhms unbalanced
Maximum Input Level: 22 dBu
Type: XLR, electronically balanced and 1/4" TRS balanced
Impedance: Approximately 240Ohms symmetrical, 120Ohms unbalanced
Maximum Output Level: 28 dBu
Type: 1/4" TS unbalanced
Impedance: Approximately 120Ohms
Maximum Output Level: 22 dBu
Type: 1/4" TRS connector, unbalanced
Maximum Output Level: 19 dBu at 150Ohms (+25 dBm)
Converter: 24-bit Sigma-Delta, 64/128-times oversampling
Sampling Rate: 40 kHz
Audio: Stereo In/Out
Connector: Type B
Converter: 16-bit
Sample Rate: 48 kHz
Main mix at -infinity with channel fader at -infinity: -101 dB
Main mix at 0 dB with channel fader at -infinity: -93 dB
Main mix at 0 dB with channel fader at 0 dB: -81 dB
100 to 240 V, 50/60 Hz
50 W
100 to 240 V 1.6 A H 250 V
Standard IEC receptacle
3.54 x 13.98 x 16.92" / 89.91 x 355.09 x 429.76mm
10.9lbs / 4.94kg
192223202993, 713757154215, 192223075498

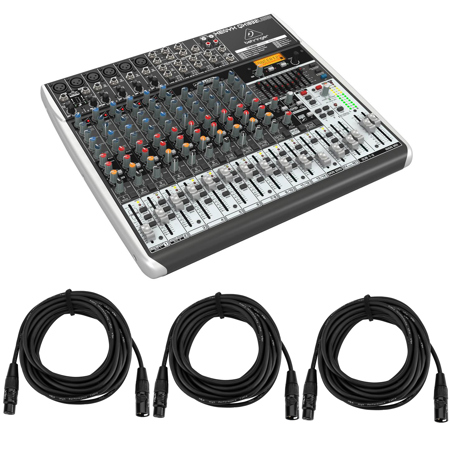

If you're seeking a versatile and high-quality audio mixer, the Behringer Xenyx QX1832USB Premium 18-Input 3/2-Bus Mixer is the perfect choice. This premium mixer is equipped with 6 onboard studio-grade Xenyx Mic Preamps and ultra-musical "British" channel EQs, delivering a warm and musical sound that is sure to impress.
The Xenyx QX1832USB is not just for live performances; it's also an excellent tool for creating professional-quality recordings. With its built-in USB/audio interfaces and accompanying recording and editing software, you can transform your computer system into a high-performance home recording studio.
The mixer's name is derived from the legendary Xenyx mic preamps, renowned by audio engineers worldwide for their high headroom and dynamic range. These state-of-the-art mic preamps can easily compete with the most expensive standalone mic preamps, offering a dynamic range of 130 dB and a bandwidth extending from below 10 Hz to well above 200 kHz.
The Xenyx QX1832USB also features a studio-quality compressor based on classic studio equipment from the 70s. This transparent and musical compressor design allows your full dynamic range to shine through until your signal reaches the compression threshold.
The mixer also includes a KLARK TEKNIK FX processor with 32 studio-grade presets, dual addressable parameters, and storable user parameter settings. This processor is a product of KLARK TEKNIK, a prestigious British audio company with a 40-year pedigree.
The Xenyx QX1832USB is also wireless-ready, thanks to the built-in connectivity of the ULTRALINK ULM Series wireless microphone system. This system provides the highest-quality sound thanks to its digital, license-free 2.4 GHz frequency spectrum.
The mixer also incorporates Behringer's revolutionary FBQ Feedback Detection System, which helps you recognize and tame feedback frequencies immediately.
The Xenyx QX1832USB comes equipped with channel Inserts, 3-band EQs with semi-parametric mid band on all mono channels, 4-band fixed EQ on the stereo channels, and 2 Aux Sends.
With the Xenyx QX1832USB, you can easily connect to your PC or Mac computer via a single USB cable, allowing you to record any signal source directly to your hard drive. The mixer also comes with free software for audio recording, editing, and podcasting.
In conclusion, the Behringer Xenyx QX1832USB Premium 18-Input 3/2-Bus Mixer offers professional sound quality, versatile features, and user-friendly operation, making it an ideal choice for both live performances and home recording.
