PACKAGE INCLUDES:
Qty: 3
Note: 1 or more items are unavailable for immediate shipping
See Options
2 Year
$119.99
3 Year
$154.99
5 Year
$269.99
Need help? Ask our experts.
Review Summary
2022-06-07T09:28:03
Customer service was great and expedient. They had the package in the mail the day we ordered it.
JOE S.
2022-05-25T12:44:16
Rater buy it directly from adorama than amazon.
FERNANDO G.
Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.
If we can’t fix it, we’ll replace it at no additional cost.
Protect your product from drops, spills, and more.
Enjoy your gear without fear. We have you covered!
When regular use of your product over time results in mechanical or electrical failure.
We will never charge you a deductible after the purchase of a plan.
Our claims process is simple & easy and our customer service team is happy to help.
Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500
Browse our FAQ
24-bit at 44.1 / 48 kHz, 114 dB dynamic range (Cirrus Logic A/D CS5368, D/A CS4385)
1.1 ms (stagebox in > console processing > stagebox out)
32 (designed by MIDAS, balanced XLR)
16 (balanced XLR )
2
2 (SuperMAC networking, NEUTRIK etherCON)
1, RJ45 (no power supplied)
1/1
2 (Toslink)
1 (type B)
MIDAS
5 / 10 kOhms ( unbal. / bal.)
+23 dBu (XLR)
< 0.008% (< 0.006% A-weighted) (20 dB gain, 0 dBu out)
48 V (switchable per input)
-128 dBu, XLR (input shorted)
> 70 dB (at 20 dB gain (typical))
10 Hz - 22 kHz (at 48 kHz sample rate, 0 dB to -1 dB)
104 dB (analog mic in to analog out (typical))
106 dB (mic preamp and converter (typical))
106 dB (converter and output)
100 dB (at 1 kHz, adjacent channels)
+4 dBu / +21 dBu (XLR, nom./max)
75 / 75 Ohms (XLR, unbal. / bal.)
-83 dBu, XLR (-85 dBu, A-weighted)
2x 48 channels, bidirectional (at 48 or 44.1 kHz, 24-bit PCM)
Up to 100m / 328.08' (CAT5e shielded)
1x 16 channels, unidirectional (at 48 or 44.1 kHz, 22-bit PCM)
Up to 75m / 246.06' (CAT5 shielded)
2x 8 channels, unidirectional (at 48 or 44.1 kHz, 24-bit PCM)
16.40' (5m), typical (Toslink optical)
2x 2 channels, unidirectional ( at 48 or 44.1 kHz, 24-bit PCM)
5 m, typical (110 Ohms balanced)
100-240 V (50/60 Hz)
55 W
41 to 104 deg. F (5 to 40 deg. C) (Standard)
19 x 9.5 x 5.4" (482.60 x 241.30 x 137.16mm)
12.35 lbs (5.6kg)
192223239722, 748252156648, 192223075498
Great customer service
By JOE S.
Customer service was great and expedient. They had the package in the mail the day we ordered it.
Well packed and arrived on time.
By FERNANDO G.
Rater buy it directly from adorama than amazon.

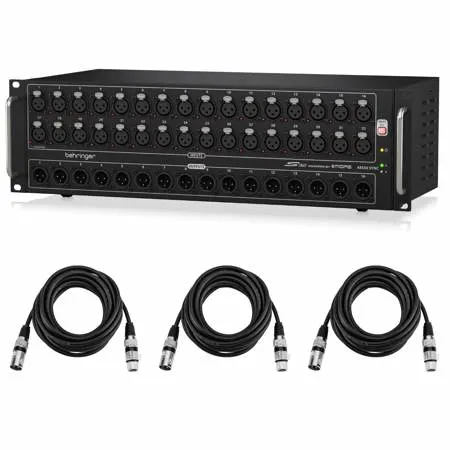

Just imagine the power and versatility of a digital mixing system that revolutionizes your live-entertainment production workflow. The S32 I/O Box with 32x Remote-Controllable Midas Preamps is a high-quality, durable, and reliable stage box that serves as a bridge between the onstage talent, the Front of House (FOH) console, and the rest of the world.
This professional-grade device offers ultra-fast and rock-solid performance, featuring 32 Midas-designed remote-controllable mic preamps and 16 balanced analog XLR returns at the stage end. All it takes is a single Cat 5e cable (up to 328 ft / 100 m) to connect this versatile device.
The S32 I/O Box is a product of Klark Teknik, the industry-leader in high-end digital audio processing, and Midas, a company with a long history of innovation and leadership in the world of audio mixing consoles. The Midas-designed mic preamp incorporated in the S32 ensures the ultimate in high-quality audio reproduction in both live and studio environments.
When used as part of a complete X32 system, two S32 Stage Boxes can be connected via the mixer's built-in dual AES50 ports, providing connectivity for up to 64 remote mic/line inputs, 32 balanced outputs, and the POWERPLAY P-16 Personal Monitoring System. This system can feed up to 16 individual monitor mixes via CAT5 to every musician on stage.
The S32 I/O Box also features 2 optical ADAT outputs and two AES-3 (AES/EBU) stereo outputs for digitally connecting to outboard devices, such as PA system controllers. A convenient USB port is included for system updates via your PC, plus MIDI I/O for your lighting systems and sound module control.
The S32 was initially designed with our flagship X32 Digital Mixing Console in mind, but any mixing board with AES50 networking capability can tap directly into the S32's powerful feature set. This device is not just a stage box, but a powerful digital eco-system that gives you unparalleled ease of deployment, performance, and control.
The S32 I/O Box with 32x Remote-Controllable Midas Preamps is a testament to the power of innovative design and high-quality construction. It's built tough enough to withstand the rigors of the road, taking up only three rack spaces and connecting to FOH with a single, inexpensive Cat 5e cable. This is the missing link between the stage and FOH that you've been looking for, all at a price that's within reach.
