24-bit at 44.1/48kHz, 114dB dynamic range
1.1ms
8 (Programmable mic preamps, designed by Midas, balanced XLR/TRS combo)
8 (balanced XLR)
AES50 SuperMac Networking, Neutrik etherCON: 2
Type B port (for system updates)
24
24
Ultranet: 2x
Midas
<0.005%, A-weighted (20dB gain, 0dBu out)
+48 V, switchable per input
-128dB, A-weighted, XLR (input shorted)
At 20dB gain (typical): >60dB
At 40dB gain: >65dB
10 to 22000Hz
Analog mic in to analog out (typical): 105dB
A/D Dynamic range, mic preamp to converter (typical): 109dB
D/A Dynamic range, converter and output: 108dB
90dB at 1kHz, adjacent channels
Mic input XLR jack, unbalanced/balanced: 10kOhms
Hi-Z input TRS jack, unbalanced/balanced: 2MOhms
Line input impedance TRS jack, unbalanced/balanced: 40kOhms
Non clip maximum level, TRS: +21dBu
50Ohms, XLR, unbalanced/balanced
+21dBu, XLR, nominal/maximum
XLR: -88dBu, A-weighted
AES50 SuperMac networking at 48 or 44.1kHz, 24-bit PCM: 2x 48 channels, bidirectional
AES50 SuperMac Cable Length: Up to 328' (100m)
Ultranet networking at 48 or 44.1kHz, 16-bit PCM: 1x 16 channels, unidirectional
Ultranet Cable Length: up to 246' (75m)
Ultranet Phantom power for P16-M personal mixers: 2x powered outputs
100 to 240V (50/60Hz)
35W
41 - 104 Degree F (5 - 40 Degree C)
13.1 x 5.9 x 3.7" (332.74 x 149.86 x 93.98mm)
5.5 lbs (2.49kg)
192223275874, 748252154248, 192223075498
SD8

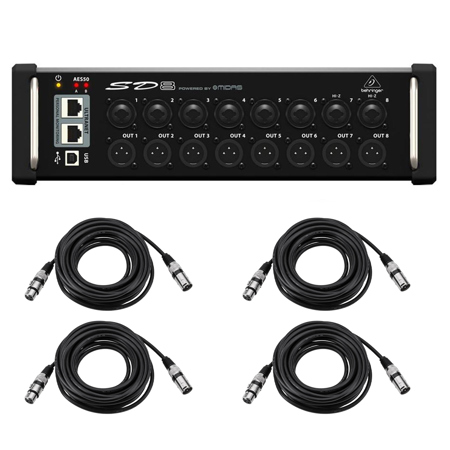

Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. Now we've come up with the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world - the ultra-cool and ultra-affordable SD8 Stage Box! The SD8 provides 8 MIDAS -designed remote-controllable mic preamps, 8 balanced analog XLR returns at the stage end, plus an integrated 2-port ULTRANET distribution hub for direct connection to our P16-M personal monitor mixers - without any additional hardware required.
Plus the SD8 is extremely compact and comes with rugged protective bumpers, so you can toss them directly on stage wherever you need them. The best part - all it takes is a single shielded CAT5e cable per stage box. And If you need more inputs, or just want to keep your cable runs short and tidy, putting an SD8 at stage front and another behind the drum riser gives you an additional 8 inputs for drum and guitar/ bass amp mic'ing.
When used as part of a complete X32 system, as many as six SD8 Stage Boxes can be cascaded via the built-in AES50 ports to provide up to 48 balanced XLR Combo inputs and 48 balanced XLR outputs. An onboard ULTRANET distribution hub provides power and 16 channels of audio to 2 Behringer POWERPLAY P16-M personal monitor mixers per SD8, all via inexpensive shielded CAT5e cabling - and without any additional hardware. Two of the programmable inputs are also compatible with Hi-Z sources, so you can connect keyboards, acoustic and bass guitars, etc., with no DI box required. The SD8 also features a USB port for fast and easy system updates via your PC.
MIDAS - The Legend in Sound Quality
Ever since its formation in the 1970s, MIDAS has had a long history of innovation and leadership in the world of audio mixing consoles. Employed by the most famous touring acts and installations world-wide, legendary MIDAS consoles such as the XL4 and Heritage H3000 quickly became industry standards.
MIDAS has earned their impeccable reputation due to their no-compromise approach for audio and build quality and in particular for their Award-winning Mic Preamps which are considered by industry experts as the industry's best sounding designs. Building on this legacy, the XL8 and PRO Series of Live Mixing Systems continue this great heritage of Award-winning audio quality.
Behringer is proud to incorporate MIDAS designed mic preamps for the ultimate in high-quality audio reproduction in both live and studio environments.
Remotely Controllable Preamps Make Setup a Breeze
The SD8 Stage Box is a studio/live sound engineer's dream come true. Setup is extremely easy, with virtually all parameter control taking place at the console including the award-winning MIDAS-designed mic preamps, +48 V phantom power, destination routing, etc. Just put the SD8 where you want it, run a few CAT5e, mic and instrument cables and head for the console. The SD8 makes setting the stage up virtually foolproof!
