Behringer EURODESK SX2442FX Ultra-Low Noise Design 24-Input 4-Bus Studio/Live Mixer, Bundle with TAPH100 Headphones and 2x 25' XLR M to F Microphone Cable

SKU: BESX2442FXA MFR: 0601-ACN86-US1 A
Earn VIP Reward Points

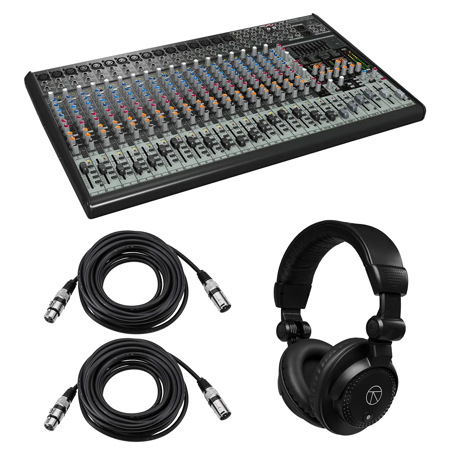

PACKAGE INCLUDES:

  • Behringer EURODESK SX2442FX 24-Ch Recording Console
    Behringer EURODESK SX2442FX 24-Ch Recording Console
  • +
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
    Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • +
  • H&A Value Series XLR M to F Professional Microphone Cable - 25'
    H&A Value Series XLR M to F Professional Microphone Cable - 25'

    Qty: 2

  • +
  • Show more

Key Features

  • Experience pristine sound quality with 24 low-noise inputs, perfect for studio recordings.
  • Effortlessly manage complex audio setups using the intuitive 4-bus mixer design.
  • Enhance your live performances with built-in effects, adding depth to vocals and instruments.
  • Connect seamlessly to your computer for recording and playback with USB connectivity.
  • Rely on the durable construction of this mixer for consistent, long-lasting performance.
  • Enjoy straightforward operation with an easy-to-use interface, ideal for any skill level.
See More Product Details
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Behringer EURODESK SX2442FX Specifications

Mono Inputs

Mono Inputs

Jump to...
  • Microphone inputs Type

    XLR connector, electronically balanced, discrete input circuit

  • Mic E.I.N. (20 Hz - 20 kHz)

    @ 0 Ohm source resistance: -134 dB / 135.7 dB A-weighted
    @ 50 Ohm source resistance: -131 dB / 133.3 dB A-weighted
    @ 150 Ohm source resistance: -129 dB / 130.5 dB A-weighted

Frequency Response

Jump to...
  • <10 Hz - 160 kHz

    -1 dB

  • <10 Hz - 200 kHz

    -3 dB

  • Gain range

    +10 dB to +60 dB

  • Max. input level

    +12 dBu @ +10 dB GAIN

  • Impedance

    approx. 2.6 k Ohm balanced

  • Signal-to-noise ratio

    110 dB / 112 dB A-weighted (0 dBu In @ +22 dB GAIN)

  • Distortion (THD + N)

    0.005 % / 0.004 % A-weighted

Line Input

Jump to...
  • Type

    1/4" TRS jack, electronically balanced

  • Impedance

    approx. 20 k Ohm balanced, approx. 10 k Ohm unbalanced

  • Gain range

    -10 dB to +40 dB

  • Max. input level

    +22 dBu @ 0 dB GAIN

  • Fade-Out Attenuation

    Main fader closed: 90 dB
    Channel muted: 84 dB
    Channel fader muted: 85 dB (Crosstalk Attenuation)

  • Frequency response (Mic In - Main Out)

    <10 Hz - 90 kHz: +0 dB / -1 dB
    <10 Hz - 160 kHz: +0 dB / -3 dB

Stereo Inputs

Jump to...
  • Type

    2x 1/4" TRS jack, balanced

  • Impedance

    approx. 20 k Ohm balanced, approx. 10 k Ohm unbalanced

  • Gain range

    -20 dB to +20 dB

  • Max. input level

    +22 dBu @ 0 dB GAIN

CD/Tape In

Jump to...
  • Type

    RCA connector

  • Impedance

    approx. 10 k Ohm

  • Max. input level

    +22 dBu

Equalizer

Jump to...
  • EQ Mono Channels

    LOW: 80 Hz / +/-15 dB
    MID: 100 Hz to 8 kHz / +/-15 dB
    HIGH: 12 kHz / +/-15 dB
    LOW CUT: 80 Hz, 18 dB/oct.

  • EQ Stereo Channels

    LOW: 80 Hz / +/-15 dB
    LOW MID: 500 Hz / +/-15 dB
    HIGH MID: 3 kHz / +/-15 dB
    HIGH: 12 kHz / +/-15 dB

Main Outputs (XLR)

Jump to...
  • Type

    XLR connector, electronically balanced

  • Impedance

    approx. 240 Ohm balanced, approx. 120 Ohm unbalanced

  • Max. output level

    +28 dBu

Main Outputs (1/4")

Jump to...
  • Type

    1/4" TRS jack, electronically balanced

  • Impedance

    approx. 240 Ohm balanced, approx. 120 Ohm unbalanced

  • Max. output level

    +28 dBu

Main Inserts

Jump to...
  • Type

    1/4" TRS jack, unbalanced

  • Max. input level

    +22 dBu

Mono Output

Jump to...
  • Type

    1/4" mono jack, unbalanced

  • Impedance

    approx. 120 Ohm

  • Max. output level

    +22 dBu

  • Low pass

    variable, 30 Hz to 200 Hz, 18 dB/oct.

Phones/CTRL Room Output

Jump to...
  • Type

    1/4" TRS jack, unbalanced

  • Max. output level

    +19 dBu / 150 Ohm (+25 dBm)

CD/Tape Out

Jump to...
  • Type

    RCA connector

  • Impedance

    approx. 1 k Ohm

  • Max. output level

    +22 dBu

  • Type

    Texas Instruments

  • Converter

    24-bit delta-sigma, 64/128-times oversampling

  • Sampling rate

    46 kHz

Main Mix System Data (Noise)

Jump to...
  • Main mix @ -Infinite, channel fader

    -100 dB / -102.5 dB A-weighted

  • Main mix @ 0 dB, channel fader-Infinite

    -82 dB / -85 dB A-weighted

  • Main mix @ 0 dB,channel fader

    -72 dB / -75 dB A-weighted

Power Supply

Jump to...
  • Power consumption

    50 W

  • Fuse (100 - 240 V-, 50/60 Hz)

    T 2.0 A H 250 V

  • Mains connector

    Standard IEC receptacle

Physical

Jump to...
  • Color

    Black

  • Dimensions (H x W x D)

    3.9 x 26.9 x 16.1" (100 x 682 x 410mm)

  • Weight

    19 lbs (8.6kg)

  • UPC Codes

    192223295131 | 689076149815 | 192223227576 | 192223075498

About Behringer EURODESK SX2442FX

Take your audio recording and live sound performance to the next level with the Behringer EURODESK SX2442FX 24-Channel Audio Console. This high-quality audio mixer is designed to meet the needs of both recording studios and live sound applications, offering a comprehensive set of features that enhance sound quality and versatility.

The EURODESK SX2442FX boasts a total of 24 input channels, including 16 mono and 4 stereo input channels, each equipped with XLR microphone inputs and inserts. These features allow for seamless routing of signals to external processors, ensuring that your audio is captured and processed with utmost precision.

One of the standout features of this audio console is its built-in 24-bit VIRTUALIZER effects processor. This advanced tool allows you to add professional-grade effects to your audio, enhancing its depth and dimension. The mixer also includes a 4-band EQ section, providing you with complete control over your sound's tone and balance.

For added flexibility, the EURODESK SX2442FX features 4-bus outputs, perfect for routing to monitors, multi-track recorders, and other devices. This ensures that your audio is delivered exactly where it needs to go, whether you're in the studio or on stage.

Sound reinforcement is a breeze with this mixer, thanks to features like a stereo 9-band EQ with FBQ Feedback Detection, global mute switching, and a Mono output for sub-woofers. These features work together to deliver clear, feedback-free sound, even in challenging live sound environments.

At the heart of the EURODESK SX2442FX's superior sound quality are the studio-grade acoustically "Invisible" IMP Mic Preamps and ULN (Ultra Low-Noise) circuitry. These components work together to deliver pristine audio fidelity, minimizing noise and ensuring that your sound is captured in its purest form.

Whether you're working in a project studio or providing sound reinforcement in small clubs or houses of worship, the full-featured Behringer EURODESK SX2442FX 24-Channel Audio Console is your ideal partner for superior sound quality and performance.

Behringer EURODESK SX2442FX Features

  • Premium ultra-low noise, high-headroom analog mixer
  • 16 state-of-the-art XENYX Mic Preamps comparable to stand-alone boutique preamps
  • Neo-classic "British" 3-band EQs with semi-parametric mid band for warm and musical sound
  • 2x independent studio-grade 24-bit stereo FX processors with 99 awesome presets including reverb, chorus, flanger, delay, pitch shifter and various multi-effects
  • High-precision 9-band stereo graphic EQ allows precise frequency correction of monitor or main mixes
  • Revolutionary FBQ Feedback Detection system instantly reveals critical frequencies
  • Peak LEDs, Mute, Main mix and subgroup routing switches, Solo and PFL functions on all channels
  • 2 fully featured stereo input channels with 4-band EQ plus 2 additional stereo input channels with Level and pre-fader Aux controls
  • Inserts on each mono channel and main mix for flexible connection of outboard equipment
  • 4x Subgroup outputs and additional Mono output with sweepable Low Pass filter for subwoofer application
  • 4x Aux sends per channel: 2x pre/post fader switchable for monitoring/FX applications, 2x post fader (for internal FX or as external send)
  • Balanced Main mix outputs with 1/4" jack and gold-plated XLR connectors, separate Control room, Headphone and stereo Tape outputs
  • Solo-In-Place and Pre-Fader-Listen functions plus full-featured Talkback section
  • Standby switch mutes all channels during breaks while background music is provided via CD/Tape inputs
  • Long-wearing 60 mm logarithmic-taper faders and sealed rotary controls
  • Internal auto range power supply for maximum flexibility (100 - 240 V-), noise-free audio, superior transient response plus low power consumption for energy saving

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience pristine sound quality with 24 low-noise inputs, perfect for studio recordings.
  • Effortlessly manage complex audio setups using the intuitive 4-bus mixer design.
  • Enhance your live performances with built-in effects, adding depth to vocals and instruments.
  • Connect seamlessly to your computer for recording and playback with USB connectivity.
  • Rely on the durable construction of this mixer for consistent, long-lasting performance.
  • Enjoy straightforward operation with an easy-to-use interface, ideal for any skill level.

What's in the box:

  • Behringer EURODESK SX2442FX Ultra-Low Noise Design 24-Input 4-Bus Studio/Live Mixer
  • Power Supply
  • User Manual
  • Adorama 1 Year Limited Warranty
  • Bundle Includes:
  • 2x 25' H&A Value Series XLR M to F Professional Microphone Cable
