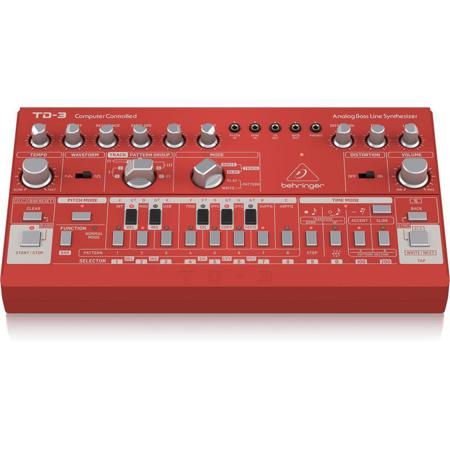

Behringer TD-3 Analog Bass Line Synthesizer with VCO/VCF, 16-Step Sequencer/16-Voice Poly Chain, Distortion Effects, Red

SKU: BETD3RD MFR: 000-E2402-00010
$149.00
Earn VIP Reward Points

Key Features

  • Create iconic basslines with the TD-3's authentic analog synthesizer circuitry.
  • Craft dynamic sequences using the intuitive 16-step sequencer for evolving soundscapes.
  • Explore a wide range of sonic textures with the built-in distortion effects module.
  • Connect to other synths via MIDI In/Thru for expanded modular synth capabilities.
  • Use the TD-3 as a USB MIDI interface with your computer for seamless DAW integration.
  • Poly Chain multiple TD-3 units for complex, polyphonic synth arrangements easily.
See More Product Details
Special Order?Estimated to Ship: 08/18/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$11.99

2 Year

$23.99

3 Year

$35.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?JARROD E : Great starting point for getting into Synthesizers!

Reviews about this item

Review Summary

2023-07-02T17:05:49

Rated 3 out of 5

Excellent but Partially Flawed Bass Synth

So the Behringer TD-3 is definitely fun when you get the hang of it but it also misses the mark on a couple of features. First off I have never used a real TB-303 so I'm not comparing it to that. I'm just commenting on this as a unique piece of gear. First off this thing sounds great AND fat. I found that the square wave oscillator is almost always better sounding the then saw. The controls are very intuitive and really are just asking to be tweaked in a live take. I found that for my purposes it was more useful to set the accent, decay, envelope, & resonance at my desired levels and just tweak the filter cutoff. Speaking of the knobs, I have to take off a point for the decay knob. I can barely hear an envelope decay of the filter with this thing. It is VERY fast and I really couldn't hear much difference between the completely closed and open values. This misses the mark even if it's exactly modeled after the 303. Also I know Behringer were going after making a faithful recreation of the TB-303 but the method for inputting notes is very cumbersome. Apparently it is exactly as it is on the 303 but it is not intuitive at first use. You have to enter all your notes first and then enter their lengths & any rests. It's not so bad after you get the hang of it but it leaves something to be desired compared to the modern Roland TB-3 which is a pretty great and intuitive sequencer. I take another point off the TB-3 for its horrendous USB MIDI. In short it is unusable. It creates a digital hum that of course you could mostly remove with notch filtering or something like iZotope RX but it should simply not be there. Standard din MIDI however does not have this problem and neither does analog sync. For the money the TD-3 delivers strong & powerful bass with pedigree. The various hardware color options make it fun finding the perfect counterpart to your studio or live setup. Honestly I hope to never part with mine and I truly have zero gear lust for a real 303. There may be flaws in comparison that I just have no concept of but I've recorded and jammed with the TD-3 and it simply is fun to use.

Tom N.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Behringer TD-3 Specifications

Synthesizer Architecture

Synthesizer Architecture

Jump to...
  • Number of voices

    Monophonic

  • Type

    Analog

  • Oscillators

    1

  • VCF

    1 low pass

  • Envelopes

    1

Connectivity

Jump to...
  • Power input

    DC input connector

  • Power switch

    Push button on/off

  • MIDI In/Thru

    MIDI In and MIDI Thru, 5-pin DIN

  • USB (MIDI)

    USB 2.0, type B

  • Outputs

    Line output: 1/4" TRS, unbalanced, max. + 8 dBu

  • Output impedance

    1.5 k Ohm

  • Headphones

    3.5mm TRS, max. 50 mW/ 32 Ohm (1 KHz, 1% THD)

  • Headphones output impedance

    15 Ohm

  • Type

    Class compliant USB 2.0, type B

  • Supported Operating Systems

    Windows 7 or higher
    Mac OS X 10. 6.8 or higher

Inputs and Outputs (TS 3.5mm)

Jump to...
  • Inputs

    Filter in: +12 dBu
    Sync in: More than: 2.5V

  • Outputs

    C V out: +1 V to + 5 V (1 volt/oct)
    Gate out: OFF: 0 V; ON: +12 V

Power Requirements

Jump to...
  • External power adapter

    9 VDC 670 mA

  • Power consumption

    2 W Maximum

  • Indicator Power

    LED

Environmental

Jump to...
  • Operating temperature range

    41 - 104 Degree F (5 - 40 Degree C)

Physical

Jump to...
  • Color

    Red

  • Dimensions (H x W x D)

    2.2 x 12 x 6.5" (56 x 305 x 165mm)

  • Weight

    1.8 lb (0.8kg)

  • UPC Code

    653341345738

2 Accessories for Behringer TD-3 Analog Bass Line Synthesizer with VCO/VCF, 16-Step Sequencer/16-Voice Poly Chain, Distortion Effects, Red

  • All Accessories (2)
  • Stands (1)
  • Keyboard Benches (1)

About Behringer TD-3

An homage to the iconic Roland TB-303, the TD-3 Analog Bass Line Synthesizer is a dynamic and versatile instrument that has become a staple in the Electronic Dance Music (EDM) scene. Its vibrant red color adds a touch of flair to its sleek design.

The TD-3 synthesizer boasts a pure analog signal path, a 16-step sequencer, and authentic VCO, VCF, and VCA filters, making it a favorite among music producers and performers. Its meticulous engineering, including the original VCO, VCF, and VCA designs, and pure analog circuitry with matched transistors, allows for ultra-flexible sound shaping. This synthesizer can produce everything from super-fat bass and lead tones to stunning effects, and even the otherworldly sounds of your imagination.

The TD-3 is designed for immediate use, with a default signal routing that doesn't require any patch cable adjustments. Its intuitive layout makes it easy to recreate the inspired sounds of 1980s and '90s progressive rock, wave, EDM, and synth-pop music, or to design incredibly fat and original sounds that will make you stand out.

At the heart of the TD-3's sound is its versatile 24 dB/octave filter, which allows you to experiment with the low-pass Cutoff frequency and Resonance settings to dial in the perfect sound. Its authentic Voltage Controlled Oscillator (VCO) with transistor wave-shaping circuitry is easy to use and provides your choice of reverse-sawtooth or pulse waveforms for ultimate sound creation.

The onboard sequencer with 7 tracks allows you to program up to 16 steps of notes and rests and save them as a pattern. You can record, save, and recall up to 250 patterns, all of which can be stored in the 4 Groups. The TD-3 also features a 16-note Poly Chain function, letting you combine multiple synthesizers for up to 16-voice polyphony.

The TD-3 also features a Distortion circuit, adding power to your performance. Just flip the Distortion On/Off switch and dial in the perfect amount of Drive to push your sound to the max. With 11 controls and 28 switches, the TD-3 provides direct and real-time access to all important parameters. The multi-I/O patchbay allows you to connect external devices, expanding the TD-3's tone-sculpting capabilities beyond your wildest dreams.

Whether you're a seasoned professional or a budding musician, the TD-3 Analog Bass Line Synthesizer is a versatile and powerful tool that will help you create unique and captivating music.

Behringer TD-3 Features

  • Amazing Bass Line synthesizer with true analog circuitry for bass and groove sounds
  • Authentic reproduction of original circuitry with matched transistors
  • Pure analog signal path based on legendary VCO, VCF and VCA designs
  • Sawtooth and square waveform VCO with transistor wave-shaping circuitry
  • Amazing 4-pole low-pass resonant filter with cut-off, resonance, envelope, decay and accent controls
  • Easy-to-use 16-step sequencer with 7 tracks, each with 250 user patterns
  • Arpeggiator with wide patterns for great sound effects
  • Distortion circuitry modeled after the DS-1 adds insane spice and edge to your sounds
  • 16-voice Poly Chain allows combining multiple synthesizers for up to 16 voice polyphony
  • 11 controls and 28 switches to give you direct and real-time access to all important parameters
  • MIDI and USB implementation with MIDI channel and Voice Priority selection
  • Designed and engineered in Italy

Warranty Information

This product has a limited warranty of 12 months.

800-815-0702

Product Documents

User Manual

Key Features

  • Create iconic basslines with the TD-3's authentic analog synthesizer circuitry.
  • Craft dynamic sequences using the intuitive 16-step sequencer for evolving soundscapes.
  • Explore a wide range of sonic textures with the built-in distortion effects module.
  • Connect to other synths via MIDI In/Thru for expanded modular synth capabilities.
  • Use the TD-3 as a USB MIDI interface with your computer for seamless DAW integration.
  • Poly Chain multiple TD-3 units for complex, polyphonic synth arrangements easily.

What's in the box:

  • Behringer TD-3 Analog Bass Line Synthesizer (Red)
  • Adorama 1 Year Limited Warranty
