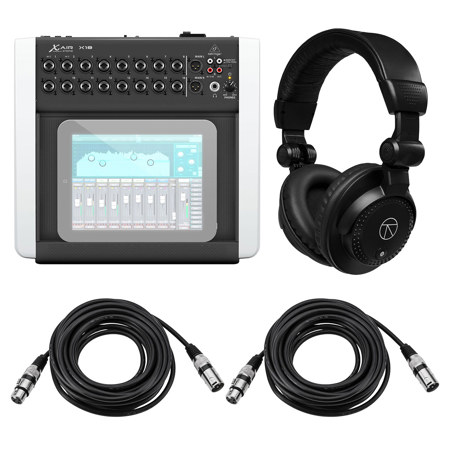

Behringer X Air X18 18-Channel 12-Bus Digital Mixer, Bundle with TAPH100 Headphones and 2x 25' XLR Microphone Cable

SKU: BEX18B MFR: 0605-AAA86-US1 B
Earn VIP Reward Points

PACKAGE INCLUDES:

  • Behringer X Air X18 18-Channel 12-Bus Digital Mixer for iPad/Android Tablet
    Behringer X Air X18 18-Channel 12-Bus Digital Mixer for iPad/Android Tablet
  • +
  • Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
    Turnstile Audio TAPH100 Closed-Back Studio Monitor Headphones
  • +
  • ProX Premium Series XCP-XLR25 25' XLR-F to XLR-M Balanced Audio Microphone Cable
    ProX Premium Series XCP-XLR25 25' XLR-F to XLR-M Balanced Audio Microphone Cable

    Qty: 2

  • +
  • Show more

Key Features

  • Experience superior sound quality with 18 input channels for clear, professional audio recordings.
  • Utilize 12 versatile buses for flexible routing and mixing, perfect for live performances or studio sessions.
  • Enhance your tracks with 4 built-in effects engines, adding depth and polish to any sound.
  • Seamlessly connect to your computer via USB for effortless multi-track recording and playback.
  • Enjoy robust durability and portability, making this digital mixer ideal for on-the-go musicians.
  • Achieve precise control and pristine audio with MIDAS-designed preamps for every microphone input.
See More Product Details
Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-06-12T14:16:36

Rated 5 out of 5

Love it!

The perfect mixer for me!

DEREK L.

Behringer X18 Specifications

Processing

Processing

Jump to...
  • Number of processing channels

    18 input channels, 4 FX return channels, 6 aux buses, main LR

  • Internal effects engines

    4 true stereo

  • Signal processing

    40-bit floating point

  • A/D-D/A conversion

    Cirrus Logic A/D CS5368, D/A CS4385: 24-bit @ 44.1 / 48 kHz, 114 dB dynamic range

  • Analog I/O latency

    0.8 ms

Connectors

Jump to...
  • Programmable mic preamps

    Designed by MIDAS: 16 XLR/TRS combo jacks, balanced

  • Line / Aux inputs, stereo

    2x RCA, unbalanced

  • Main outputs

    2x XLR, balanced

  • Aux outputs

    6x TRS, balanced impedance

  • Monitoring outputs

    2x RCA, unbalanced

  • Phones outputs

    1x TRS

  • ULTRANET

    1x RJ45

  • MIDI inputs / outputs

    1/1 DIN

  • Ethernet

    1x RJ45

  • Audio/Midi interface

    1x USB Type B

Mic Input Characteristics

Jump to...
  • Preamp design

    MIDAS

  • THD + noise, 20 dB gain, 0 dBu out

    < 0.005%, A-weighted

  • Phantom power, switchable per input

    48 V

  • Equivalent input noise level

    XLR (input shorted): -128 dBu, A-weighted

  • CMRR, XLR, @ 20 dB gain

    > 60 dB (typical)

  • CMRR, XLR, @ 40 dB gain

    > 65 dB

Input/Output Characteristics

Jump to...
  • Frequency range, @ 48 kHz sample rate

    0 dB to -1 dB: 10 Hz - 22 kHz

  • Dynamic range, analog in - out

    106 dB (typical)

  • A/D dynamic range, preamp to converter

    109 dB (typical)

  • D/A dynamic range, converter and output

    108 dB

  • Cross talk rejection @ 1 kHz

    Adjacent channels: 90 dB

  • Mic 1-16 Input impedance XLR jack

    Unbal. / bal.: 5 kOhm / 10 kOhm

  • Non clip maximum input level, XLR

    +23 dBu

  • Hi-Z 1-2 Input impedance TRS jack

    Unbal. / bal.: 1 MOhm / 2 MOhm

  • Line 3-16 Input impedance TRS jack

    Unbal. / bal.: 5 kOhm / 10 kOhm

  • Line 17-18 Input impedance, RCA / TRS

    10 kOhm

  • Non clip maximum input level, RCA / TRS

    +16 dBu

Output Characteristics

Jump to...
  • Output impedance, XLR, unbal. / bal.

    50 Ohm / 50 Ohm

  • Output level, XLR, nom./max.

    +4 dBu / +16 dBu

  • Output impedance, TRS, unbal. / bal.

    50 Ohm / 50 Ohm

  • Output level, TRS, nom./max.

    +4 dBu / +16 dBu

  • Output impedance, RCA

    1 kOhm

  • Output level, RCA, nom./max.

    +4 dBu / +16 dBu

  • Phones output impedance / level

    40 Ohm / +35 dBm (stereo)

  • Residual noise level, XLR and TRS

    -92 dBu, A-weighted

USB Audio/MIDI Interface

Jump to...
  • Type

    USB 2.0, type B

  • Supported operating systems

    Windows 7 or higher, Mac OS X 10.6.8 or higher, iOS 7 or higher (iPad), Linux

  • Supported sample rates

    44.1 / 48 kHz

  • I/O audio channels

    18 x 18

  • I/O MIDI channels

    16 x 16 (1 port)

WLAN Module

Jump to...
  • Antenna

    Internal

  • Access Point, number of clients

    Max. 4

  • IEEE 802.11 b/g standard

    2.4 GHz

  • Frequency Range

    2412-2462 MHz

  • WLAN channels

    1-11 (Wi-Fi Client, Access Point)

  • Max Output Power

    19 dBm (802.11 b) / 18 dBm (802.11 g)

  • Switch-mode power supply

    Autorange 100-240 V, (50/60 Hz)

  • Power consumption

    30W

Physical

Jump to...
  • Color

    Black

  • Standard operating temperature range

    41 Degree F to 104 Degree F (5 Degree C to 40 Degree C)

  • Country of Origin

    Germany

  • Dimensions

    16.1 x 14.1 x 4.3" (409 x 357 x 110mm)

  • Weight

    8.8 lbs (4kg)

  • UPC Codes

    192223289062, 696859053849, 741459147792, 192223227576

24 Accessories for Behringer X Air X18 18-Channel 12-Bus Digital Mixer, Bundle with TAPH100 Headphones and 2x 25' XLR Microphone Cable

  • All Accessories (24)
  • Cables & Adapters (17)
  • XLR Cables (1)
  • Headphones (6)

About Behringer X18

FEATURED REVIEWS

Love it!

By DEREK L.

The perfect mixer for me!

The BEHRINGER X32 completely changed the game by rethinking what is possible from a digital mixer - and over 100,000 users are enjoying the results. Now, that same technology has been incorporated into a small, but incredibly powerful, rack-mountable mixer that will forever change both the way you record - and the way you play live music. The revolutionary X18 is a powerhouse 18 input/12 bus digital mixer that also serves as the launch pad for your favorite computer tablet - including iPad and Android tablets. It is ideally suited for both live and studio applications, thanks to its 16 award-winning MIDAS-designed mic preamps, convenient integrated Wi-Fi module for wireless control - and a lightning-fast, bidirectional USB Audio Interface.

The freedom to move around and manipulate all parameters of your mix with the free iOS, Android and PC apps lets you dial in the perfect sound from anywhere in the venue - or the tracking room! Advanced engineering and meticulous design deliver stellar sonic performance at an extremely affordable price - changing the game once again.

MIDAS - The Legend in Sound Quality
Ever since its formation in the 1970s, MIDAS has had a long history of innovation and leadership in the world of audio mixing consoles. Employed by the most famous touring acts and installations worldwide, legendary MIDAS consoles such as the XL4 and Heritage H3000 quickly became industry standards. MIDAS has earned their impeccable reputation due to their no-compromise approach for audio and build quality and in particular for their award-winning Mic Preamps which are considered by industry experts as the industry's best sounding designs. Building on this legacy, the XL8 and PRO Series of Live Mixing Systems continue this great heritage of award-winning audio quality. BEHRINGER is proud to incorporate MIDAS designed mic preamps for the ultimate in high quality audio reproduction in both live and studio environments. Find out more about MIDAS' amazing legacy by visiting their extensive website.

Built-In Tri-Mode Wi-Fi Router
Designed for the ultimate in mobility, the X18 comes with an integrated Wi-Fi module for direct control of your mixer's functions - without the need to setup and configure an external router. The X18 gives you the freedom to focus on your mix, while allowing you to move about the venue to experience what every part of the audience is hearing. Plus you can adjust live monitor wedges from the artist's perspective - or better yet, let them mix their own IEMs and floor monitors via their own tablets. Access Point is the easiest way to connect up to 4 clients directly and concurrently (i.e., iPad, Android smartphone/tablet or laptop). This mode should have your remote control up and running in less than a minute. Wi-Fi Client allows you to add your mixer to the existing wireless network where the controlling apps and devices are connected. Alternately, wired connections can be made directly to your PC, to a local area network (LAN), or when connecting to a dedicated Wi-Fi router, e.g., for extended range or 5 GHz applications.

Recording Simplified
The incredibly fast and comprehensive 18 x 18 channel, bi-directional USB interface makes the X18 an amazingly powerful digital mixing solution for recording directly to your iPad or PC. Dial in the perfect monitoring mix with effects and zero-latency, while sending up to 16 microphone signals - and the keyboard player's MIDI notes to your DAW for recording. Whether you're making rock history in the studio, or you want to capture intimate live performances - it's never been easier to record stunning tracks with exceptional clarity.

Revolutionary Auto-Mixing
When your application calls for a multiple-microphone setup, such as an onstage panel discussion, press conference or courtroom proceeding, etc., it can become a challenge to maintain so many open mics - and preserve maximum gain and priority for the moderator. A major first for compact audio mixers, our revolutionary X AIR Gain Sharing technology can easily manage fully automated mixes with up to 16 live microphones. Based on the legendary Dan Dugan automix system, the X18's gain sharing paradigm automatically controls the levels of all selected microphones in real time, without any gating artifacts or noise modulation. This function dramatically reduces the typical feedback, studio noise and comb filtering challenges that can occur when two, or more mics are in close proximity of each another. X AIR Gain Sharing technology provides a consistent system gain structure, even when multiple speakers are talking at the same time.

4 Onboard X32 Effects Engines
Equipped with the very same FX engines as the now legendary X32 Digital Mixing Console, the Onboard virtual FX Rack provides access to four true-stereo (8 mono), multi-effects processors including delay, chorus, dynamics - plus the X18 can run production-quality, true-stereo reverbs concurrently with 31-band EQ on the main and aux buses, all without the need for any additional hardware. You can select any combination of high-end simulations of legendary studio effects, such as the Lexicon 480L and PCM70, as well as the EMT250 and Quantec QRS reverbs. Onboard processing means your computer doesn't have to do the heavy lifting during a mixing session with DAW plugins as the X18 has a whole studio of FX under its hood. Custom-designed, and physically modeled after some of the most iconic and sought-after processors, all effects run inside the low-latency environment of the X18 mix engine, ensuring flawless performance, flexible routing and the end of cable faults forever!

High-End FX Racks at Your Finger Tips
The immaculate tube signal path in Teletronix' LA-2A Leveling Amplifier has left its exceptional clarity, its rich and warm compression on countless albums of the past decades.

The ultra-smooth optical attenuator is closely modeled in our LEISURE COMPRESSOR. It provides breezy, natural and effortlessly musical compression. (Inspired by Teletronix LA-2A) When Urei released the 1176LN Limiting Amplifier in the late 60's, it broke new ground. Field Effect Transistors employed were just invented, and the 1176 was one of the first audio processors to benefit from this new technology.

Our digital reincarnation, ULTIMO COMPRESSOR, is based on the early Rev. E model, and authentically captures the smooth character of the original Class-A output stage and its FET's legendary fast Attack. (Inspired by Urei 1176LN) The Fairchild 670 tube compressor not only achieves record bids in high-end vintage gear auctions, it also delivers some of the finest colorations in compressor history. Two small trim VR's preset the control side chain action, a six-step switch determines the timing, and the two large Input and Threshold knobs adjust the levels.

Our FAIR COMPRESSOR model is true to the original signal path, and conveniently provides models for dual, stereo-linked or M/S operation. (Inspired by Fairchild 670)

The COMBINATOR is an amazing 5-band compressor that emulates famous broadcasting and mastering compressors. A highly complex processor, the COMBINATOR utilizes automatic parameter control that produces stunning and "inaudible" results. Makeup-gain for each frequency band will automatically be adjusted by the Spectral Balance Control (SBC) function, to maintain a balanced audio spectrum.

The XTEC EQ1 emulates one of the undisputedly best passive studio equalizers ever manufactured. Virtually indescribable, recording engineers claim the Pultec EQP-1a to be the "secret sauce" of sound enhancement. We analyzed this classic to the core and created an exact physical model that reproduces the multi-faceted sound in painstaking detail. Even the transformers and tube output stage have been faithfully modeled! (Inspired by Pultec EQP-1a)

Put simply, Pultec literally wrote the book on passive equalization. By digitally "rebuilding" every aspect of this original classic, we captured the very essence in our mid-range focused parametric equalizer XTEC EQ5. Our digital re-incarnation authentically emulates the smooth character of its rather unique components. (Inspired by Pultec MEQ5)

The new SUB OCTAVER provides two channels of earth-shattering sub-harmonics generation, one or even two octaves below the input signal. While originally designed for bass players, the effect can be adjusted for Hi, Mid and Low frequency tracking to apply to a wide range of applications. This is your secret weapon for beatboxing...

The EDISON EX1 is the reincarnation of one of our own analog classics. This remarkably effective tool allows manipulation of the stereo field. Selectable Mono or Stereo I/O modes allow the processing, or creation, of Mono/Stereo recorded sound sources. (Inspired by BEHRINGER EDISON)

The SOUND MAXER restores natural brilliance and clarity to any audio signal by adjusting the phase and amplitude integrity to reveal more of the natural texture of the sound, which is often hidden when using some effects and equalizers. (Inspired by Sonic Maximizer 482i)

The DIMENSIONAL CHORUS is the perfect emulation of what has been referred to as "the best analog Chorus unit ever created". Four simple Mode preset buttons activate amazing effects, best described as "space" and "dimension". Absolutely faithful to the original, multiple preset buttons can be pressed simultaneously. (Inspired by Roland Dimension D Chorus)

Modulation Delay combines three of the most-used time modulation effects into one easy-to-operate unit. Enjoy true-stereo delay with a lush and spacious chorus, topped off with your choice of three very unique reverb models, Ambience, Club and Hall.

Behringer X18 Features

  • iPad/Android tablet controlled 18-input digital mixer for studio and live applications
  • 16 award-winning Midas-designed, fully programmable mic preamps for audiophile sound quality
  • Built-In Tri-Mode Wi-Fi router for direct operation no need for external routers
  • 18 x 18 channel, bidirectional USB interface for direct recording on iPad etc
  • Revolutionary Dugan-style Auto-Mixing automatically manages microphone gain sharing
  • Award-winning X32 effects rack featuring 4 stereo FX slots including high-end simulations such as Lexicon 480L and PCM70, EMT250 and Quantec QRS etc
  • 100-band Real Time Analyzer (RTA) for all channel and bus EQ's
  • ULTRANET connectivity for Behringer's P-16 Personal Monitoring System
  • Ultra-wide tray suitable for almost all tablets, iPads and even mini notebooks
  • 6 aux and main LR buses with inserts, full dynamics processing and 6-band parametric or 31-band graphic EQ
  • 6 TRS aux outputs and 2 XLR main outputs plus stereo RCA output and phones connectors
  • 40-Bit floating-point DSP features "unlimited" dynamic range with no internal overload and near-zero overall latency
  • Free iOS, Android and PC/Mac/Linux apps available for remote operation via Ethernet, LAN or Wi-Fi
  • MIDI In/Out allows controlling the mixer via MIDI equipment (incl. Mackie Control protocol) or for use as a USB MIDI interface (future firmware)
  • Future firmware updates, incl. new FX "Plug Ins", downloadable from behringer.com free of charge
  • Internal switch-mode power supply for noise-free audio and low power consumption
  • Designed and engineered in Germany

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience superior sound quality with 18 input channels for clear, professional audio recordings.
  • Utilize 12 versatile buses for flexible routing and mixing, perfect for live performances or studio sessions.
  • Enhance your tracks with 4 built-in effects engines, adding depth and polish to any sound.
  • Seamlessly connect to your computer via USB for effortless multi-track recording and playback.
  • Enjoy robust durability and portability, making this digital mixer ideal for on-the-go musicians.
  • Achieve precise control and pristine audio with MIDAS-designed preamps for every microphone input.

What's in the box:

  • Behringer X Air X18 18-Channel 12-Bus Digital Mixer
  • Power Cord
  • Adorama 1 Year Limited Warranty
  • Bundle Includes:
  • 2x ProX Premium XCP-XLR25 25' XLR-F to XLR-M Balanced Audio Mic Cable
