Behringer X-ADAT High-Performance 32-Channel ADAT/Wordclock Expansion Card for X32 Digital Mixing Console

The Behringer x-ADAT 32-Channel ADAT/Wordclock Expansion Card is designed to expand the recording capacities of the mixer with digital connections. The card plugs into the expansion port on the back of the mixer and provides simultaneous 32 channels of ADAT in and 32 channels of ADAT out to stand-alone recorders, digital audio workstations, signal processing equipment or other digital mixers. The system can transfer the signal at 24-bit 48 or 44.1 kHz resolution and utilizes light-pipe fiber-optic connections to prevent ground loop interference. The card also includes BNC Word-Clock In/Out synchronization connection for connecting to external clocks. External clock synchronization is also possible through any of the four TOSLINK inputs.

Rear Panel Flexibility

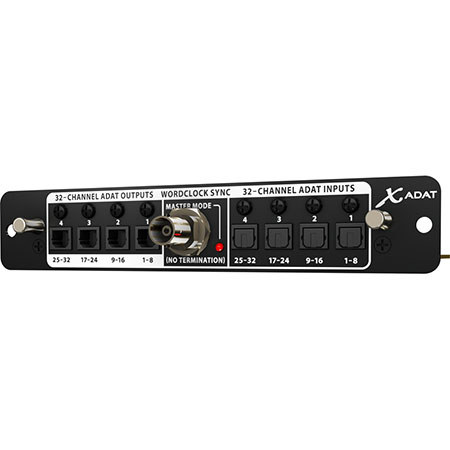

The x-ADAT card provides 32-channels of ADAT inputs and outputs on its 8 fiber-optic Toslink connectors. The card features 24-bit signal transmission and operates at both 44.1 and 48 kHz sample rates, maintaining your signals integrity. The light-pipe fiber-optic connections also assure that your signal is protected from ground loop interference.

More Options - Including Word Clock
The x-ADAT expansion card allows you to integrate your X32 in any situation where ADAT connectivity is required, expanding the X32 series consoles use in live, studio, AV and integration applications. The x-ADAT card features a BNC word-clock in/out that can be used to interface X32 with an external clock or provide clock signal for other devices. External clock synchronization is possible through the BNC connection as well as any of the 4 Toslink inputs.
