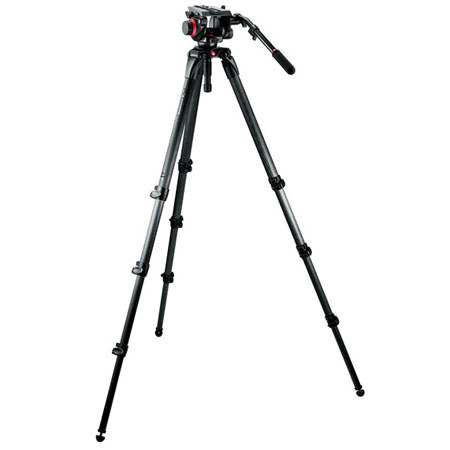

Manfrotto 504HD 4-section Carbon Fiber 536 Tripod with Video Head - Black
See all Manfrotto items

Manfrotto 504HD VD Fluid Video Head with 536 Carbon Fiber Tripod Legs, MBAG100PN Tripod Bag, Maximum Height 85", Supports 19 lbs.

SKU: BG504HD536K
(7)

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
Manfrotto 028B 3-Section Geared Triman Camera Tripod, Black
$571.95
undefined undefined: Picture 1 regular
Manfrotto 475B Pro 3-Section Aluminum Geared Studio Tripod with Column, Black
$614.95
undefined undefined: Picture 1 regular
Manfrotto 536 4-Section Carbon Fiber Tripod Legs with 509 Fluid Video Head
$2,859.95
undefined undefined: Picture 1 regular
Manfrotto 536 4-Section Carbon Fiber Tripod with 526-1 Fluid Video Head
$3,279.95
undefined undefined: Picture 1 regular
Manfrotto Befree Advanced Lever 4-Section Al Travel Tripod with Ball Head, Black
$259.95
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

2018-12-25T16:47:12

Rated 5 out of 5

All in one tripod.

I already have this tripod so buying it again was a simple decision.I love it.It's light, portable, reliable, and can transfer from low mode around 18" to 7 ft high in seconds.If you need a tripod that can do almost anything give this a peak.Extra bonus extra plates are easy to find.If you want a heavier duty tripod head grab the 509I use this all the time with the Blackmagic URSA Mini Pro and some heavier lenses like the Atlas Anamorphic, Cooke, and Canon 17-120servo.I wouldn't use the 504 head for anything larger than that.

Clint B.

Manfrotto 504HD Specifications

  • 504HD Head: additional pan handle

    504HLV

  • 504HD Head: attachment

    3/8'' male thread attachment type

  • 504HD Head: attachment number

    1/4'' and 3/8'' screws attachment type

  • 504HD Head: balance control

    4 step: 0Kg - 2.5Kg - 5Kg - 7.5Kg

  • 504HD Head: front tilt

    -60° / +90° tilt range

  • 504HD Head: half ball diameter

    2.95 in

  • 504HD Head: independent pan lock

    yes

  • 504HD Head: independent tilt lock

    yes

  • 504HD Head: leveling bubble

    illuminated

  • 504HD Head: load capacity

    19.84 lbs

  • 504HD Head: maximum working temperature

    60

  • 504HD Head: minimum working temperature

    -20

  • 504HD Head: pan bar positions

    2 number

  • 504HD Head: pan bars included (no.)

    1 number

  • 504HD Head: pan drag

    continuously adjustable from 0 to max level

  • 504HD Head: panoramic rotation

    360 °

  • 504HD Head: plate type

    504PL

  • 504HD Head: quick release

    yes

  • 504HD Head: secondary safety system

    yes

  • 504HD Head: sliding travel of plate

    3.27 in

  • 504HD Head: tilt drag

    continuously adjustable from 0 to max level

  • 504HD Head: height

    6.10 in

  • 504HD Head: weight:

    6.39 lbs

  • Legs: Material

    Carbon Fiber

  • Legs: Head Attachment Fitting

    75/100mm Bowl

  • Legs: Leg Stages/Sections

    3/4

  • Legs: Leg Lock Type

    Twist Lock

  • Legs: Independent Leg Spread

    Yes

  • Legs: Spiked/Retractable Feet

    Retractable Spike, Rubber Feet

  • Legs: Center Brace

    No, Leg Angle Selector

  • Kit: load capacity

    19.84 lbs

  • Kit: maximum height

    85.63 in

  • Kit: minimum height

    15.75 in

  • Kit: weight

    13.45 lbs

13 Accessories for Manfrotto 504HD VD Fluid Video Head with 536 Carbon Fiber Tripod Legs, MBAG100PN Tripod Bag, Maximum Height 85", Supports 19 lbs.

  • All Accessories (13)
  • Quick Release (1)
  • Sandbags (11)
  • Bags & Cases (1)
Flashpoint Weight Sand Bag, Holds 10 Lbs
Flashpoint Weight Sand Bag, Holds 10 Lbs
$9.95
Flashpoint Weight Sand Bag, Small, Holds 5 Lbs, Shipped Empty.
Flashpoint Weight Sand Bag, Small, Holds 5 Lbs, Shipped Empty.
$9.95
Flashpoint Empty Saddle Sandbag, Cordura Nylon - (5 lb Capacity, Black)
Flashpoint Empty Saddle Sandbag, Cordura Nylon - (5 lb Capacity, Black)
$9.95
Flashpoint Empty Saddle Sandbag, Cordura Nylon - (18 lb Capacity, Black)
Flashpoint Empty Saddle Sandbag, Cordura Nylon - (18 lb Capacity, Black)
$15.99
Flashpoint Empty Saddle Sandbag, Cordura Nylon - (35 lb Capacity, Orange)
Flashpoint Empty Saddle Sandbag, Cordura Nylon - (35 lb Capacity, Orange)
$19.99
Flashpoint Empty Saddle Sandbag, Cordura Nylon - (5 lb Capacity, Orange)
Flashpoint Empty Saddle Sandbag, Cordura Nylon - (5 lb Capacity, Orange)
$9.95
Flashpoint Empty Saddle Sandbag, Cordura Nylon - (27 lb Capacity, Orange)
Flashpoint Empty Saddle Sandbag, Cordura Nylon - (27 lb Capacity, Orange)
$17.99
Manfrotto 504PLONG Long Sliding Video Camera Plate
Manfrotto 504PLONG Long Sliding Video Camera Plate
$52.95
Flashpoint Empty Saddle Sandbag, Cordura Nylon - (15 lb Capacity, Orange)
Flashpoint Empty Saddle Sandbag, Cordura Nylon - (15 lb Capacity, Orange)
$13.99
Flashpoint Empty Saddle Sandbag, Cordura Nylon - (35 lb Capacity, Black)
Flashpoint Empty Saddle Sandbag, Cordura Nylon - (35 lb Capacity, Black)
$19.99
Flashpoint Empty Saddle Sandbag, Cordura Nylon - (15 lb Capacity, Black)
Flashpoint Empty Saddle Sandbag, Cordura Nylon - (15 lb Capacity, Black)
$13.99
Flashpoint Empty Saddle Sandbag, Cordura Nylon - (18 lb Capacity, Orange)
Flashpoint Empty Saddle Sandbag, Cordura Nylon - (18 lb Capacity, Orange)
$15.99

About Manfrotto 504HD

The Manfrotto 504HD Head with 536 3-Stage Carbon Fiber Tripod System combines the innovative and stylish 504HD Fluid Video Head with the 3-stage/4-section carbon fiber 536 Tripod--providing the perfect intersection of affordability, range and weight with smooth, precise control. This compact and versatile system was designed with both video and DSLR rigs in mind and provides the ergonomics and support called for by today's small crews and solo event shooters.

Manfrotto 504HD Features

  • Wider, longer platform for your camera and accessories.
  • High rigidity structure delivers maximum response and strength.
  • Ergonomic controls for easy use in all conditions.
  • Easy-link connections for accessories.
  • 4-step counterbalance system ensures a quick set-up with optimal balance.
  • Ball Bearing drag system for precise, smooth movements.
  • Light weight modern materials for optimum balance of strength and weight.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Wider, longer platform for your camera & accessories
  • High rigidity structure delivers maximum response & strength
  • Ergonomic controls for easy use in all conditions
  • Easy-link connections for accessories
  • 4-step counterbalance system ensures a quick set-up
  • Ball Bearing drag system for precise, smooth movements

What's in the box:

  • Manfrotto 504HD Tripod Head
  • 536 Tripod Leg
  • Padded Carrying Bag
  • 5 Year Limited Warranty (6 Months + 4 Years & 6 Months Extension with Online Registration)
