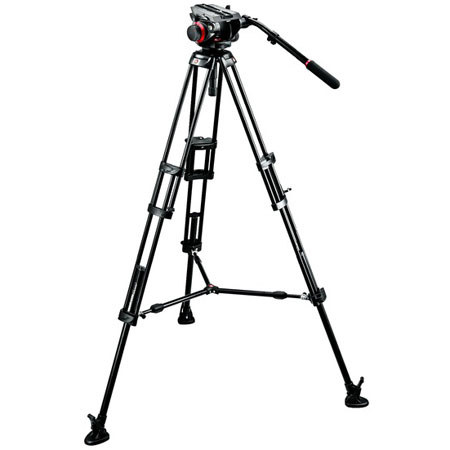

Manfrotto 504HD 3-section Aluminum 546B Tripod Legs & Video Head - Black
Manfrotto 504HD Video #1
Manfrotto 504HD: Picture 1 thumbnail
See all Manfrotto items

Manfrotto 504HD VD Fluid Video Head with 546B Aluminum Tripod Legs, Maximum Height 65", Supports 19 lbs.

SKU: BG504HD546BK

This item is no longer available.

See all Used options (1) from $433

Recommended Alternatives

Manfrotto 055: Picture 1 regular
Manfrotto 055 3-Section Aluminum Tripod with XPRO Ball Head
$505.95
Manfrotto 055XPRO4: Picture 1 regular
Manfrotto 055XPRO3 3-Section Aluminum Tripod, Bundle with 410 Junior Geared Head
$634.90$449.88
Manfrotto 055XPRO3: Picture 1 regular
Manfrotto 055 3-Section Aluminum Tripod, Bundle with 502 Pro Video Head
$619.90
Manfrotto 132XNB: Picture 1 regular
Manfrotto 132XNB 2-Sections Heavy Duty Aluminum Video Tripod
$672.95$511.17
See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Shopper : Hi, will the camera plate on this tripod work with a Sony VCTU plate?MARCELLE G : I don't really have a solid answer for you as I haven't used the Sony VCTU. I can however say that I've put multiple DSLR's , a couple different Sony Hanycams, and a RED Scarlet on it and have had NO issues. It really is a great set of sticks. I'm actually contemplating a second set.KOJO O : yes, it works perfectlyMARY Y : It accepts the standard plate sony has used for all their prosumer cameras
Shopper : If I purchase this Tripod kit with the 504HD Fluid Video Head and I purchase the 502HD Fluid Video Head for the Manfrotto 685B NeoTec Monopod Deluxe will the quick release plates be interchangeable? I know the 504HD comes with the longer plate but will that plate attach to the 502HD and vice versa?ROBERT H : yes, they are the same.David H : I can only speak from my experience - I have the 504hd fluid head. I had a manfrotto with the smaller base plate -They are interchangeable.MARY Y : Yes their plates are compatible just different lengths
Shopper : Does this come with the MBAG100PN Padded Tripod Bag?LARRY R : My Manfrotto 504HD VD head and 546B legs (Purchased as a unit) came with the MBAG 100PN bag. Given the weight of the tripod the bag is a handy accessory.CODY B : Not sure of the part number but it came with a padded bag. The bag has a wide end with a circular zipper opening for the head. Hope this helps. Cody BLY N : Yes, it comes with a very nice padded bag.David H : Yes it does - Very happy with the bag -

Reviews about this item

Review Summary

2020-03-04T06:51:36

Rated 5 out of 5

Winner here!

Great sturdy product. Highly recommend. Buy once and buy right.

STEVEN B.

2019-06-23T11:37:41

Rated 5 out of 5

tripod with fluid head

This is an awesome set up..period. What more can I say? The tripod in Manfrotto quality and the fluid head is also Manfrotto quality.

THOMAS F.

2018-12-25T16:47:12

Rated 5 out of 5

All in one tripod.

I already have this tripod so buying it again was a simple decision.I love it.It's light, portable, reliable, and can transfer from low mode around 18" to 7 ft high in seconds.If you need a tripod that can do almost anything give this a peak.Extra bonus extra plates are easy to find.If you want a heavier duty tripod head grab the 509I use this all the time with the Blackmagic URSA Mini Pro and some heavier lenses like the Atlas Anamorphic, Cooke, and Canon 17-120servo.I wouldn't use the 504 head for anything larger than that.

Clint B.

2016-09-05T20:47:17

Rated 5 out of 5

Good Product

Recommend to others

GEORGIE J.

2013-07-13T21:00:00

Rated 4 out of 5

great but cheaper than former versions

This is the best value for the price, however compared to older models, it feels cheaper. As heavy as the legs are, they feel flimsy and not as sturdy as imagined. The mid-level spreader can be helpful in some situations, but the ground spreader is much better as you can hold it down with your foot to spread the legs. WIth the mid-level it's more tedious. The head is great, but I had to return the first one because the tension adjustment was clicking tighter or looser as I adjusted it. The head does move really smoothly though, and there's nothing cheaper that's worth it if you're shooting video.

John R.

2013-03-18T21:00:00

Rated 4 out of 5

Awesome

I use this with my Red Scarlet and it works like a charm. The bubble level is easy to use and it feels well constructed for a tripod at this price level. I don't particularly like the plastic locks on the aluminum legs, but they work just fine and definitely feel like they're locking things down.

IAN M.

2011-10-16T21:00:00

Rated 5 out of 5

Fluidly Better Than anything Under $1200

Strongly Recommended for its quality features, strong build and beautiful style. This tripod is better than anything south of $1200, and quite honestly, I cant see anyone telling me they have a better one at $2,000. Fluid Head works well... locking plate is very durable, screw in areas for accessories like TV monitor, mics, PA Mics, etc makes this tripod ahead of most... the legs are very versitle and strong... did I mention the sexy Italian design??? well... what else could you want? Buy & enjoy.... stuff the savings into another lens or buy you girlfriend some jewlery.... ;-)

GoodPixelProductions

Manfrotto 504HD Specifications

  • 504HD Head: additional pan handle

    504HLV

  • 504HD Head: attachment

    3/8'' male thread attachment type

  • 504HD Head: attachment number

    1/4'' and 3/8'' screws attachment type

  • 504HD Head: balance control

    4 step: 0Kg - 2.5Kg - 5Kg - 7.5Kg

  • 504HD Head: front tilt

    -60° / +90° tilt range

  • 504HD Head: half ball diameter

    2.95 in

  • 504HD Head: independent pan lock

    yes

  • 504HD Head: independent tilt lock

    yes

  • 504HD Head: leveling bubble

    illuminated

  • 504HD Head: load capacity

    19.84 lbs

  • 504HD Head: maximum working temperature

    60

  • 504HD Head: minimum working temperature

    -20

  • 504HD Head: pan bar positions

    2 number

  • 504HD Head: pan bars included (no.)

    1 number

  • 504HD Head: pan drag

    continuously adjustable from 0 to max level

  • 504HD Head: panoramic rotation

    360 °

  • 504HD Head: plate type

    504PL

  • 504HD Head: quick release

    yes

  • 504HD Head: secondary safety system

    yes

  • 504HD Head: sliding travel of plate

    3.27 in

  • 504HD Head: tilt drag

    continuously adjustable from 0 to max level

  • 546B Tripod Leg: Material

    Aluminum

  • 546B Tripod Leg: carry loads

    up to 20kg (44lb)

  • 504HD Head: height

    6.10 in

  • 504HD Head: weight:

    6.39 lbs

  • Kit: load capacity

    19.84 lbs

  • Kit: maximum height

    65.94 in

  • Kit: minimum height

    17.32 in

  • Kit: weight

    13.89 lbs

  • UPC Code

    719821317760

About Manfrotto 504HD

FEATURED REVIEWS

Fluidly Better Than anything Under $1200

By GoodPixelProductions

Strongly Recommended for its quality features, strong build and beautiful style. This tripod is better than anything south of $1200, and quite honestly, I cant see anyone telling me they have a better one at $2,000. Fluid Head works well... locking plate is very durable, screw in areas for accessories like TV monitor, mics, PA Mics, etc makes this tripod ahead of most... the legs are very versitle and strong... did I mention the sexy Italian design??? well... what else could you want? Buy &...

View full Review

Winner here!

By STEVEN B.

Great sturdy product. Highly recommend. Buy once and buy right.

The Manfrotto 504HD Head with 546B 2-Stage Aluminum Tripod System combines the innovative and stylish 504HD Fluid Video Head with the 2-stage aluminum 546B Pro Video Tripod--creating an ideal combo of affordability, stability and smooth, precise control. This compact, versatile system was designed with independent video and DSLR shooters in mind and provides the level of ergonomics and support required by today's small crews and one-man bands.

Manfrotto 504HD Features

  • Wider, longer platform for your camera and accessories.
  • High rigidity structure delivers maximum response and strength.
  • Ergonomic controls for easy use in all conditions.
  • Easy-link connections for accessories.
  • 4-step counterbalance system ensures a quick set-up with optimal balance.
  • Ball Bearing drag system for precise, smooth movements.
  • Light weight modern materials for optimum balance of strength and weight.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Wider, longer platform for your camera & accessories
  • High rigidity structure delivers maximum response & strength
  • Ergonomic controls for easy use in all conditions
  • Easy-link connections for accessories
  • Ideal for flexible high-performance expansion
  • 4-step counterbalance system ensures a quick set-up

What's in the box:

  • Manfrotto 504HD Fluid Video Head
  • 546B Pro Video Tripod
  • Middle Spreader
  • Padded Carrying Bag
  • 5 Year Limited Warranty (6 Months + 4 Years & 6 Months Extension with Online Registration)
