Manfrotto 504HD Head & Carbon Fiber Twin Leg Video Tripod Kit, Ground Spreader
See all Manfrotto items

Manfrotto 504HD Head & Carbon Fiber Twin Leg Video Tripod Kit, Ground Spreader, 100/75mm Bowl

SKU: BG504HDTTGS

This item is no longer available.

Recommended Alternatives

Manfrotto 055: Picture 1 regular
Manfrotto 055 3-Section Aluminum Tripod with XPRO Ball Head
$505.95
Manfrotto 190go!: Picture 1 regular
Manfrotto 190go! M-Series 4-Section Twist Lock Carbon Fiber Camera Tripod
$569.95
Manfrotto 190: Picture 1 regular
Manfrotto 190 3-Section Aluminum Tripod with XPRO Ball Head
$439.95
Manfrotto 190: Picture 1 regular
Manfrotto 190 4-Section Aluminum Tripod with XPRO Ball Head
$419.00$413.99
See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-03-04T06:51:36

Rated 5 out of 5

Winner here!

Great sturdy product. Highly recommend. Buy once and buy right.

STEVEN B.

2019-06-23T11:37:41

Rated 5 out of 5

tripod with fluid head

This is an awesome set up..period. What more can I say? The tripod in Manfrotto quality and the fluid head is also Manfrotto quality.

THOMAS F.

2018-12-25T16:47:12

Rated 5 out of 5

All in one tripod.

I already have this tripod so buying it again was a simple decision.I love it.It's light, portable, reliable, and can transfer from low mode around 18" to 7 ft high in seconds.If you need a tripod that can do almost anything give this a peak.Extra bonus extra plates are easy to find.If you want a heavier duty tripod head grab the 509I use this all the time with the Blackmagic URSA Mini Pro and some heavier lenses like the Atlas Anamorphic, Cooke, and Canon 17-120servo.I wouldn't use the 504 head for anything larger than that.

Clint B.

2016-09-05T20:47:17

Rated 5 out of 5

Good Product

Recommend to others

GEORGIE J.

2013-07-13T21:00:00

Rated 4 out of 5

great but cheaper than former versions

This is the best value for the price, however compared to older models, it feels cheaper. As heavy as the legs are, they feel flimsy and not as sturdy as imagined. The mid-level spreader can be helpful in some situations, but the ground spreader is much better as you can hold it down with your foot to spread the legs. WIth the mid-level it's more tedious. The head is great, but I had to return the first one because the tension adjustment was clicking tighter or looser as I adjusted it. The head does move really smoothly though, and there's nothing cheaper that's worth it if you're shooting video.

John R.

2013-03-18T21:00:00

Rated 4 out of 5

Awesome

I use this with my Red Scarlet and it works like a charm. The bubble level is easy to use and it feels well constructed for a tripod at this price level. I don't particularly like the plastic locks on the aluminum legs, but they work just fine and definitely feel like they're locking things down.

IAN M.

2011-10-16T21:00:00

Rated 5 out of 5

Fluidly Better Than anything Under $1200

Strongly Recommended for its quality features, strong build and beautiful style. This tripod is better than anything south of $1200, and quite honestly, I cant see anyone telling me they have a better one at $2,000. Fluid Head works well... locking plate is very durable, screw in areas for accessories like TV monitor, mics, PA Mics, etc makes this tripod ahead of most... the legs are very versitle and strong... did I mention the sexy Italian design??? well... what else could you want? Buy & enjoy.... stuff the savings into another lens or buy you girlfriend some jewlery.... ;-)

GoodPixelProductions

Manfrotto 504HD Specifications

504HD Fluid Video Head

504HD Fluid Video Head

Jump to...

  • Load Capacity

    16.5 lbs (7.5kg)

  • Diameter/Thread

    75mm 3/8" Half Ball

  • Counter Balance System

    4 Step

  • Counter Balance Range

    0 lb (0 kg)
    5.5 lb (2.5 kg)
    11 lb (5.0 kg)
    16.5 lb (7.5 kg)

  • Quick Release/Wedge Plate

    Yes

  • Balance Plate

    Sliding, 1/4" and 3/8" Screws

  • Tilt Drag

    Continuous

  • Tilt Range

    -60 Degree /+90 Degree

  • Tilt Lock

    Independent

  • Spring Loaded Counter Balance

    Continuous

  • Pan Range

    360 Degree

  • Pan Drag

    Continuous

  • Pan Lock

    Independent

  • Leveling Bubble/Illuminated

    Yes/Yes

  • Temperature Range

    -4 Degree to 140 Degree F (-20 Degree to 60 Degree C)

  • Height

    6.1" (15.5cm)

  • Weight

    6.39 lbs (2.9kg)

Carbon Fiber Twin Leg Tripod

Jump to...

  • Head Mount Type

    100 mm Bowl

  • Load Capacity

    44.1 lb (20.00kg)

  • Maximum Working Height

    62.20" (158cm) (with Spreader)

  • Minimum Working Height

    13.19" (33.5cm) (with Spreader)

  • Folded Length

    27.17" (69cm)

  • Materials

    Carbon Fiber

  • Leg Lock Type

    Lever Lock

  • Leg Positions

    Continuously Adjustable

  • Independent Leg Spread

    Yes

  • Leg Sections

    3

  • Tripod Feet Features

    Dual Spiked

  • Spreader

    Ground (Included)

  • Weight

    7.21 lb (3.27kg)

Other

Jump to...

  • UPC Code

    719821434023

About Manfrotto 504HD

FEATURED REVIEWS

Fluidly Better Than anything Under $1200

By GoodPixelProductions

Strongly Recommended for its quality features, strong build and beautiful style. This tripod is better than anything south of $1200, and quite honestly, I cant see anyone telling me they have a better one at $2,000. Fluid Head works well... locking plate is very durable, screw in areas for accessories like TV monitor, mics, PA Mics, etc makes this tripod ahead of most... the legs are very versitle and strong... did I mention the sexy Italian design??? well... what else could you want? Buy &...

View full Review

Winner here!

By STEVEN B.

Great sturdy product. Highly recommend. Buy once and buy right.

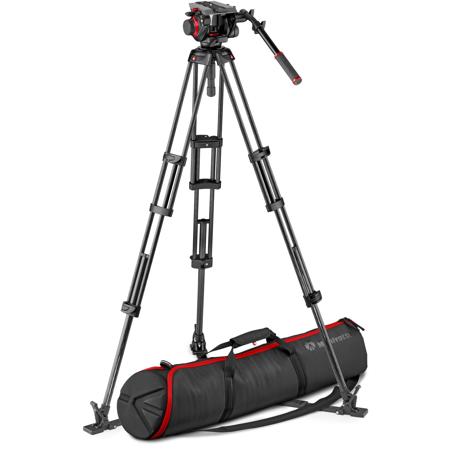

Manfrotto 504HD Head & Carbon Fiber Twin Leg Video Tripod Kit

The Manfrotto 504H Head and Carbon Fiber Twin Leg Video Tripod Kit is a high-quality solution for your professional videography needs. It includes a rigid two-stage tripod that’s made of strong yet lightweight carbon fiber to provide that much-needed stability for your camera setup. It comes with a built-in aluminum casting 100mm bowl, secure leg locks, dual spiked feet with clip-on rubber feet, and your choice of a mid-level or ground spreader. The Manfrotto 504HD fluid video head, which can be mounted on the tripod using the included 75mm aluminum adapter, provides four-steps of counterbalance up to 16.5 pounds and uses a variable fluid drag system to ensure smooth movements and to eliminate jarring when panning and tilting. It also has ⅜-inch thread connections for easy attachment of optional accessories. The set comes with a padded carrying bag to keep your tripod system safe and secure during travel.

The video system includes the 504 Fluid Video Head with incorporated 75mm half ball, the MVTTWINGCUS professional carbon fiber twin leg tripod with ground spreader, and the handy MB MBAG100PN tripod bag.

The Manfrotto 504 fluid video head with 75mm half ball features variable fluid drag system in both pan and tilt movement which allow smooth shooting, a 4-step counterbalance system up to 7.5 Kg, and a maximum payload of 12 Kg at 55mm C.O.G. Easy link 3/8'' thread connections allows an external monitor or other accessory equipment to be fitted.

The MVTTWINGCUS carbon fiber twin leg with ground spreader video tripod is a professional quality tripod with a two-stage, extremely rigid and stable design making it ideal for all kinds of assignments. If you want to create professional level videos or films, then this is the must have tripod. It features an aluminum casting 100mm bowl and it comes with an aluminum adapter that converts the bowl into a 75mm.

The tripod has ground level spreader with telescopic arms that helps you to set leg angles accurately. It is also detachable, allowing the usage of the tripod also in combination with the middle spreader Manfrotto 537SPRB and rubber shoes 565 which are sold separately. Leg locks are secure and reliable and twin spiked feet are provided for external use, e.g. in the grass. For maximum versatility, the tripod can be used with various dollies (114MV and 181B).

With its combination of robust construction and compatibility options, this tripod definitely has it all.

Manfrotto 504HD Features

  • Variable fluid pan & tilt drag system
  • 4-step counterbalance system
  • Head with inbuilt 75mm (Dia.) levelling half ball
  • Carbon fiber twin leg tripod for greater rigidity and lightness
  • Adjustable ground spreader for extra stability and versatility

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Variable fluid pan & tilt drag system
  • 4-step counterbalance system
  • Head with inbuilt 75mm (Dia.) levelling half ball
  • Carbon fiber twin leg tripod for greater rigidity and lightness
  • Adjustable ground spreader for extra stability and versatility

What's in the box:

  • 504HD Fluid Video Head
  • 504HLV Pan Handle
  • 504PLONG Long Quick Release Mounting Plate
  • Carbon Fiber Twin Leg Video Tripod with Ground Spreader
  • 100 to 75mm Bowl Adapter
  • Padded Carry Bag
  • Manfrotto 5 Year Limited Warranty (2 Years + 3 Years Extension with Online Registration)
