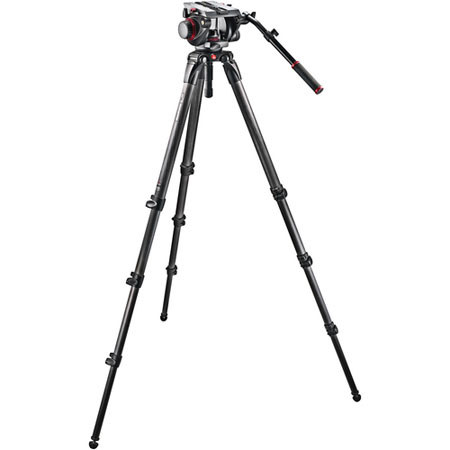

Manfrotto 536 4-Section Carbon Fiber Tripod Legs with 509 Fluid Video Head

SKU: BG509HD536K MFR: 509HD,536K
Earn VIP Reward Points

Key Features

  • Capture smooth, professional video with the Manfrotto 509HD fluid video head.
  • Achieve stable shots with the robust 536 carbon fiber tripod legs, ideal for filmmakers.
  • Enjoy a versatile height range from 10.2" to 80" for varied shooting scenarios with this tripod.
  • Easily transport your gear with the included padded bag and lightweight carbon fiber build.
  • Trust in the system's 29 lb capacity for secure support of pro cameras & accessories.
  • Quickly adapt to different setups using the 75/100mm bowl via the screw-in adaptor.
See More Product Details
FREE 2-Day Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$159.99

4 Year

$191.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2024-12-08T13:28:11

Rated 5 out of 5

Great for long tele lenses.

Very heavy duty head, works with my long tele's with ease

John T.

2020-06-23T08:15:09

Rated 5 out of 5

None better.

Best head on the market for the budget minded DP.

AL R.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Manfrotto 509HD Specifications

  • Head: Load Capacity

    29 lb (13.1 kg)

  • Head: Counter Balance System

    Yes

  • Head: Quick Release/Wedge Plate

    Yes

  • Legs: Material

    Carbon fiber tubing + magnesium castings

  • Legs: Head Attachment Fitting

    Screw-in 75/100 mm adaptor

  • Legs: Leg Stages/Sections

    3-stage / 4-sections

  • Legs: Maximum Height

    80" (2,030 mm)

  • Legs: Minimum Height

    10.2" (260 mm)

  • Legs: Folded Length

    28" (710 mm)

  • Legs: Center Column

    No

  • UPC Code

    719821330752

14 Accessories for Manfrotto 536 4-Section Carbon Fiber Tripod Legs with 509 Fluid Video Head

  • All Accessories (14)
  • Quick Release (1)
  • Sandbags (10)
  • Weights (1)
  • Dollies & Moving Equipment (1)
  • Bags & Cases (1)

About Manfrotto 509HD

FEATURED REVIEWS

Great for long tele lenses.

By John T.

Very heavy duty head, works with my long tele's with ease

None better.

By AL R.

Best head on the market for the budget minded DP.

Make your photography and videography sessions a breeze with the Manfrotto 536 4-Section Carbon Fiber Tripod Legs paired with the 509 Fluid Video Head. This professional-grade tripod solution is designed to support video camera systems weighing up to 29 lbs (13.1 kg), providing the stability and precision you need for high-quality results.

The 509HD video head features a 4-step counterbalance mechanism, ensuring optimal balance and facilitating quick setup. Its ergonomic adjustments and easy-link connectors enhance user experience, while the lightweight, PVC-free materials contribute to the overall durability and portability of the tripod.

Experience the power of Bridging Technology with a ball bearing drag system, which delivers professional-grade stability and precise, smooth movements. The 509HD head also boasts an Advance Balancing Recorder (ABR) feature, which memorizes the perfect balanced position for your camera equipment, allowing you to recall it for future use. This innovative feature significantly reduces setup and balancing time, making your work more efficient.

The 536 Carbon Fiber Tripod Legs feature a 3-stage design, offering a total load capacity of up to 55 lbs (25 kg). These sturdy legs comfortably support the 509HD head and your professional camera equipment. Crafted from carbon fiber, the tripod legs ensure robust construction and extreme lightness, weighing just 7.1 lbs (3.25 kg).

The leg angle selector allows for precise and quick adjustments of the leg angles, while the screw-in 75/100 mm adaptor provides the flexibility to accommodate different industry-standard half-ball heads.

With the Manfrotto 536 4-Section Carbon Fiber Tripod Legs and 509 Fluid Video Head, you're investing in a versatile, high-quality, and durable solution for all your photography and videography needs.

Manfrotto 509HD Features

  • Complete tripod solution for professional video camera systems
  • Comes in a padded bag for storage and transport
  • Tripod Head: for professional video applications
  • Tripod Head: Load capacity up to 29 lb (13.1 kg)
  • Tripod Head: 4-step counterbalance mechanism ensures optimum balance and helps for quick setup
  • Tripod Head: Ergonomic adjustments and easy-link connectors
  • Tripod Head: Uses light-weight PVC free materials in its components
  • Tripod Head: Bridging Technology with a ball bearing drag system, the tripod head offers professional quality stability as well as precise, smooth movements
  • Tripod Head: Advance Balancing Recorder (ABR) feature can record the perfect balanced position for your camera equipment so that the position can be recalled later on
  • Tripod Head: ABR reduces camera setting up / balancing time
  • Tripod Legs: 3-stage legs
  • Tripod Legs: With total load capacity up to 55 lb (25 kg), the legs comfortably support the 509HD head and professional camera equipment
  • Tripod Legs: Carbon fiber ensures sturdy construction and extremely lightweight (7.1 lb / 3.25 kg) for a professional video camera tripod
  • Tripod Legs: Leg angle selector allows you to quickly adjust the leg angles in a precise way
  • Tripod Legs: Screw-in 75/100 mm adaptor offers flexibility to accept different industry standard half-ball heads

Warranty Information

This product has a limited warranty of 6 months for parts and 24 months for labor.

Key Features

  • Capture smooth, professional video with the Manfrotto 509HD fluid video head.
  • Achieve stable shots with the robust 536 carbon fiber tripod legs, ideal for filmmakers.
  • Enjoy a versatile height range from 10.2" to 80" for varied shooting scenarios with this tripod.
  • Easily transport your gear with the included padded bag and lightweight carbon fiber build.
  • Trust in the system's 29 lb capacity for secure support of pro cameras & accessories.
  • Quickly adapt to different setups using the 75/100mm bowl via the screw-in adaptor.

What's in the box:

  • Manfrotto 509HD Video Head
  • 536 Carbon Fiber Tripod Legs
  • Padded Carrying Bag
  • 5 Year Limited Warranty (6 Months + 4 Years & 6 Months Extension with Online Registration)
