Manfrotto 526,545BK-1 Specifications

526-1 Head: Camera Plate

526-1 Head: Camera Plate

Jump to...
  • Camera Plate Features

    Sliding Balance Plate

  • Camera Mounting Screw

    2x 1/4"-20 Male
    2x 3/8"-16 Male

  • Safety Lock

    Yes

526-1 Head: Tripod Platform

Jump to...
  • Base Mount

    100 mm Half Ball
    3/8"-16 Female

526-1 Head: Pan & Tilt

Jump to...
  • Drag Control

    Pan: 3-Step Plus 0
    Tilt: 3-Step Plus 0

  • Drag Type

    Fluid

  • Vertical Tilt

    +75 Degree to -70 Degree

  • Panning Range

    360 Degree

  • Independent Pan Lock

    Yes

  • Independent Tilt Lock

    Yes

526-1 Head: Physical

Jump to...
  • Material

    Aluminum

  • Load Capacity

    35 lb (16kg)

  • Counter Balance

    Continuous 17.64 to 33.07 lb (8 to 15kg)

  • Center of Gravity

    4.92" (124.97mm)

  • Pan Handle Fittings

    1x Rosette

  • Bubble Level

    1

  • Weight

    7.94 lb (3.6kg)

545B Tripod: General

Jump to...
  • Head Mount Type

    100 mm Bowl
    3/8"-16 Male

  • Load Capacity

    55.12 lb (25kg)

  • Working Height

    Maximum: 60.63" (154cm)
    Minimum: 11.81" (30cm)

  • Folded Length

    27.17" (69cm)

  • Materials

    Aluminum

  • Bubble Level

    Yes

  • Weight

    7.72 lb (3.5kg)

545B Tripod: Legs

Jump to...
  • Leg Lock Type

    Flip Lock

  • Independent Leg Spread

    Yes

  • Leg Sections

    3

  • Leg Diameter

    1" (25mm)

  • Feet Features

    Rubber, Removable

545B Tripod: Center Column

Jump to...
  • Center Column Features

    Center Brace

  • UPC Code

    719821438212

About Manfrotto 526,545BK-1

FEATURED REVIEWS

Best

By ISSAC M.

Good Adjustable

Video kit with 526-1 Professional Fluid Video Head, 545B Professional Video Tripod with Mid-level Spreader and MB MBAG100PN Tripod Bag.

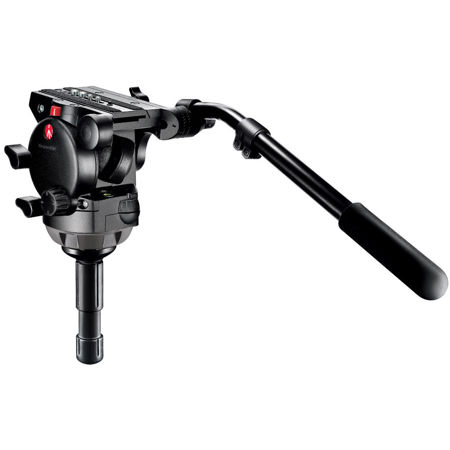

The 526-1 Professional Fluid Video Head directly addresses the heavy-duty, high-end ENG and EFP video market by offering a feature-packed fluid video head that borrows all the combined benefits of our 500 series heads with the ability to support top weight loads over 35lbs.

The 526-1 features a replaceable and removable pan arm rosette so if any damage occurs to the side castings, only a small part needs to be replaced; large rubber padded knobs for better grip and all the controls (tilt and pan lock, tilt drag) are located on the left side so they can be easily found.

The 526-1 offers our most precise fluid drag system comprised of three step settings for low, medium and high drag levels (numbered 1, 2 and 3), plus the additional no-drag setting (number 0) for such occasions as snap-pans/tilts. Counterbalance is achieved through an adjustable spring for camera weights between 17.5 and 33 lbs.

The built-in 4-inch half-ball adapts to a number of our tripods with a 4-inch receiver, allowing the quick leveling of the camera with the aid of the bright leveling bubble. The 526-1 comes with one pan arm and the long 357PLV-1 plate.

The Manfrotto 545B is a two stage, twin leg, lightweight aluminum professional video tripod. Due to optimization of the upper and lower collars, the tripod guarantees more torsion rigidity and payload (55 lbs.), plus improved shooting performance. The collars have also been redesigned to be aligned with the single tube tripods.

The die cast aluminum crown features a built-in 100mm interface bowl, which can be adapted to a 75mm if needed. The tripod is equipped with an innovative mid-level spreader for improved tripod stability. It comes with quick on-off rubber shoes for better grip on smooth floors.

Manfrotto 526,545BK-1 Features

  • Variable Fluid Drag System on PAN and TILT movements
  • Can support up to 16kg / 35 lbs
  • Sliding plate for the fastest camera connection and set up
  • Diameter 100mm ball for levelling
  • Twin leg aluminum tripod with mid-level spreader

Key Features

  • Variable Fluid Drag System on PAN and TILT movements
  • Can support up to 16kg / 35 lbs
  • Sliding plate for the fastest camera connection and set up
  • Diameter 100mm ball for levelling
  • Twin leg aluminum tripod with mid-level spreader

What's in the box:

  • 526-1 Professional Fluid Video Head
  • 357PLV-1 Sliding Plate
  • 2x 1/4 " Screws
  • 2x 3/8 " Screws
  • Pan Arm
  • 545B Professional Aluminum Video Tripod with Mid-Level Spreader
  • Carrying Bag
  • Manfrotto 2 Year Limited Warranty & Additional 3 Year Extension with Online Registration
