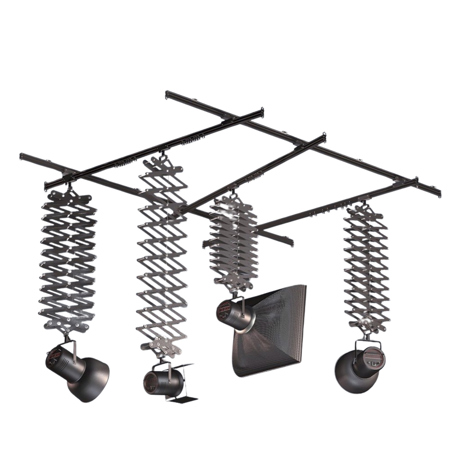

Manfrotto Pro Studio Rail System 54 Kit for Larger Studios, Supports 4 Lights

SKU: BGFF3054 MFR: FF3054
Earn VIP Reward Points

Key Features

  • Maximize studio space with this Manfrotto rail system, designed for seamless light placement.
  • Supports up to 40lbs with optional springs, ensuring your studio lights are securely mounted.
  • Aluminum rails provide durability for years; a reliable studio lighting solution.
  • Effortlessly adjust lighting with sliding carriages, enhancing studio workflow and efficiency.
  • Includes safety cables for secure overhead mounting, protecting your valuable studio equipment.
  • Modular design allows for easy customization to fit your unique studio layout and lighting needs.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$189.99

3 Year

$219.99

4 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : I also have a drop celling can that work?TOM T : It can but extra wire that is holding the suspended ceiling will need to be reinforced or the stantions put in place to hold the rail to the structure above the drop ceiling. Again i would tell you that if you do not have 11 ft as a starting point it is not worth it, the rails and pantographs drop the working area to a point that 11 would be a minimum starting point, if you have more you would be happy. My personal preference and i have both is the FOBA, but the Manfrotto is a great addition.CHRIS H : I don't know if I'm too late in answering this, but I have a solid drywall ceiling over joists (old house/studio). Also not sure what the full question was, but if you are wanting to mount any rail system, it's gotta be anchored into something VERY substantial to support the weight of your lights. You'll have to go into studs at least. I can't imagine trying to work around the drop ceiling. Hope this helps.T G : I actually don't have the accordian lights, but I did purchase three rails to attach hair and accent lights directly to the rails...I hope to purchase the accordian suspension bits by the end of the year...I had a profession install the rails...they're quite heavy, so attaching them to studs is a necessity...you'd need to get up beyond your 'drop ceiling' to attach these, and that, I wouldn't think will look very good....you'll have to get creative to work around that. Even without the accordian suspension parts, the rails have been extremely handy, and once the whole system is in place, it should prove to be amazing...floor space is always a problem in our studio.... hope this helps... Terri G.
Shopper : How hi must my celling be for this and can someone come out and put this up?T G : My ceilings are 9 feet high....I have three of the rails installed - by a professional, as the rails are extremely heavy and getting everything level and secure is critical. I have not purchased the accordian suspension bits yet...so far I have only attached hair and accent lights directly to the rails...and this by itself is proving to be quite handy...with my 9 foot ceilings, I believe that I will only be able to use smaller softboxes on my lights, so my main light will probably remain on a light stand, as I typically use a 4x6 softbox with my main. Hope this helps...Terri G.TOM T : I would not install the 54 system in anything less than 10ft ceilings, easy to install with proper connections to structural supports, do not tie to ceiling tile or weak structure. Make sure you begin with a plan to attach as the system comes with flat plate ceiling connections, if you need stand offs or extensions to get to rigid structure then you need to plan for that. Level the long rails is critical. 2 people can install in about 6-8 hours pending tools and level of skill. Email us if you have question we can send images or answer other questions for serious inquiry.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Manfrotto Pro Studio Rail System Specifications

Product Details

Product Details

Jump to...
  • Component Type

    Rail System

  • Load Capacity

    Pantograph:
    26lbs (Using only the friction device)
    40lbs (Require the use of the optional springs)

    Nylon wheels with metal ball bearings:
    39.5 lbs

  • Material

    Rails: Aluminum

Physical Details

Jump to...
  • Dimensions

    2 Rails - 9' 10" (3 m) each
    2 Rails - 16' 6" (5 m) each

  • Weight

    Kit Weight: Approx 85 lbs (39 kg)

  • UPC Code

    719821234982

About Manfrotto Pro Studio Rail System

Experience the superior functionality of the Manfrotto Pro Studio Rail System 54 Kit, a robust and versatile solution for larger studios. This professional-grade overhead lighting suspension system is meticulously designed to streamline your workspace by eliminating the need for floor-based light stands and power cables.

Constructed from durable, high-quality materials, this sturdy rail system offers the flexibility to expand or modify according to your unique studio requirements. It supports up to four lights, providing a versatile lighting solution for a wide range of photography and videography needs.

The Manfrotto Pro Studio Rail System 54 Kit features a sophisticated combination of rails, carriages, telescopic posts, and manual spring/cable assisted or motorized pantographs. These components work seamlessly together to ensure precise positioning of lights with unparalleled ease and speed.

Whether you're capturing still images or shooting video, the adjustable nature of this rail system allows for optimal light positioning, enhancing the quality of your work. Choose the Manfrotto Pro Studio Rail System 54 Kit for a professional, clutter-free, and efficient studio environment.

Manfrotto Pro Studio Rail System Features

  • The Pantograph supports a load of up to 26lbs suspended from 1' 6" to 6' 6" using only the friction device, while loads up to a maximum of 40lbs require the use of the optional springs. The pantograph can be adjusted to keep suspended loads from 2lbs to 10lbs perfectly balanced
  • The colored ring can adjust the pantograph's friction; this will ensure that the load remains stable when set in position, but that it will move smoothly up and down when necessary. It is advisable to use springs to aid raising the pantograph
  • Each pantograph extends from 1'6" to 6'6"
  • Nylon wheels with metal ball bearings ensure safe operation with loads of up to 39.5 lbs
  • Extruded aluminum rails enable efficient utilization of studio perimeter walls and corners for backlighting, drapes and background paper
  • All components are black, to eliminate unwanted reflections

Warranty Information

This product has a limited warranty of 12 months for parts and 24 months for labor.

Key Features

  • Maximize studio space with this Manfrotto rail system, designed for seamless light placement.
  • Supports up to 40lbs with optional springs, ensuring your studio lights are securely mounted.
  • Aluminum rails provide durability for years; a reliable studio lighting solution.
  • Effortlessly adjust lighting with sliding carriages, enhancing studio workflow and efficiency.
  • Includes safety cables for secure overhead mounting, protecting your valuable studio equipment.
  • Modular design allows for easy customization to fit your unique studio layout and lighting needs.

What's in the box:

  • Manfrotto 3 x 9' 10" Rails
  • 2x 16' 6" Rails
  • 4x Top 2 Pantographs
  • 3x Double Sliding Carriages
  • 3x Double Sliding Carriages with Single Brakes
  • 3x4-Wheeled Sliding Carriages with 5/8 " Spigots
  • 8x Mounting Brackets
  • 4x Sets of 4 End Stops
  • 4x Safety Cables
  • Manfrotto 1 Year Limited Warranty
