Just Reduced

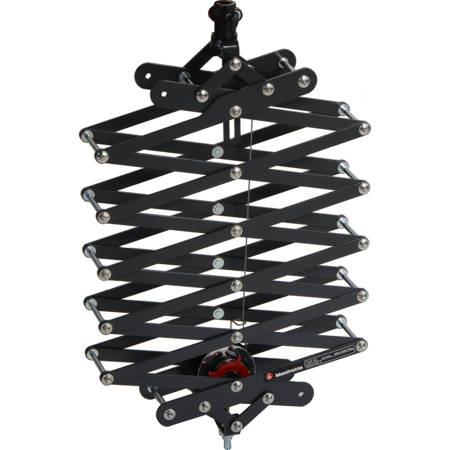

Manfrotto Pantograph Top 2.0M, 5/8" @ Bottom (Female - Male) - Maximum Extension 78.7"

SKU: BGFF3512N86 MFR: FF3512N86
Earn VIP Reward Points

Key Features

  • Achieve precise studio lighting with the Manfrotto Pantograph's flexible 78.7" extension.
  • Easily mount your lights & gear (2-40lbs) using this durable aluminum pantograph system.
  • Enjoy smooth, adjustable positioning for perfect shots with this top-quality pantograph.
  • Maximize your studio space; this compact pantograph has a closed length of just 10.6".
  • Rely on rock-solid stability; this Manfrotto pantograph ensures secure light positioning.
  • Quick setup: 5/8" bottom mount (female-male) makes integrating this pantograph a breeze!
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$32.99

2 Year

$69.99

3 Year

$94.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?PAUL S : Specified by staff

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Manfrotto Pantograph Top 2.0M Specifications

Product Details

Product Details

Jump to...
  • Component Type

    Pantograph

  • Load Capacity

    2 to 40lbs

  • Material

    Aluminum

Physical Details

Jump to...
  • Dimensions

    Closed length: 10.6" (27cm)
    Maximum extension: 6.5 feet (200cm)

  • UPC Code

    719821231462

About Manfrotto Pantograph Top 2.0M

How can you elevate your photography or videography setup to new heights The Pantograph Top 2.0M, with a maximum extension of 78.7", is your answer. Crafted from high-quality P-Al MgSi UNI 3569 aluminum, this pantograph adheres to the stringent DIN 15560-46 manufacturing standards, ensuring durability and reliability.

The Pantograph Top 2.0M features 5/8" attachments at both ends, with a male connector at the bottom and a female connector at the top. This design allows for versatile and secure mounting of your equipment. The pantograph is supported by a robust 2mm diameter steel cable, offering a safety factor of 12 and the ability to suspend loads up to 26lbs using only the patented friction device.

For heavier equipment, up to a maximum of 40lbs, the optional springs can be utilized. This pantograph is adjustable, allowing you to maintain perfect balance for suspended loads ranging from 2 to 40lbs. The colored notched ring provides an easy way to adjust the pantograph's friction, ensuring your load remains stable when set in position, but can also move smoothly up and down when required.

To optimize the performance of your Pantograph Top 2.0M, it is advisable to use the springs to aid in raising your pantograph. When selecting additional springs, it's crucial to know the exact model of your pantograph to ensure you choose the correct length. For owners of the new compact pantographs (with grey-painted "scissors"), the 78.7" version features a red notched ring, while the 149" version has a blue notched ring. Once you've identified the length of your pantograph, refer to the provided table to select the appropriate springs.

In summary, the Pantograph Top 2.0M, 5/8" @ Bottom (Female - Male) - Maximum Extension 78.7" is a versatile, durable, and adjustable solution for suspending your photography or videography equipment.

Manfrotto Pantograph Top 2.0M Features

  • High-quality Pantograph Top 2.0M crafted from P-Al MgSi UNI 3569 aluminum
  • Adheres to stringent DIN 15560-46 manufacturing standards for reliability
  • Features 5/8" attachments at both ends (male at the bottom, female at the top)
  • Supports loads up to 26lbs with patented friction device, up to 40lbs with optional springs
  • Adjustable friction via colored notched ring for stable and smooth movement
  • Compatible with new compact pantographs, identified by color-coded notched rings

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Achieve precise studio lighting with the Manfrotto Pantograph's flexible 78.7" extension.
  • Easily mount your lights & gear (2-40lbs) using this durable aluminum pantograph system.
  • Enjoy smooth, adjustable positioning for perfect shots with this top-quality pantograph.
  • Maximize your studio space; this compact pantograph has a closed length of just 10.6".
  • Rely on rock-solid stability; this Manfrotto pantograph ensures secure light positioning.
  • Quick setup: 5/8" bottom mount (female-male) makes integrating this pantograph a breeze!

What's in the box:

  • Manfrotto 2 Year Warranty (Additional 3 Years with Online Registration)
