Manfrotto Nitrotech N8 Specifications

  • Head: Load Capacity

    17.6 lbs (7.9kg)

  • Head: Tripod Head

    75mm flat base

  • Head: Balance Plate

    Sliding, 1/4" and 3/8" screws

  • Head: Center of Gravity

    2.2" (55mm)

  • Head: Tilt Drag

    Fluid

  • Head: Tilt Range

    -70 to +90 deg

  • Head: Counterbalance System

    Continuous, nitrogen piston

  • Head: Pan Range

    360 deg

  • Head: Pan Drag

    Fluid

  • Head: Leveling Bubble/Illuminated

    Yes/Yes

  • Head: Material of Construction

    Aluminum

  • Head: Height

    5.8" (14.7cm)

  • Head: Weight

    4.84 lbs (2.2kg)

  • Tripod: Material

    Carbon fiber tubing with magnesium castings
    Max Height: 67" (171 cm)

  • Tripod: Maximum Height

    67" (171 cm)

  • Tripod: Minimum Height

    10.63" (27cm)

  • Tripod: Closed Length

    28.94" (73.5cm)

  • Tripod: Load Capacity

    44.09 lbs (20kg)

  • Tripod: Leg Stages / Sections

    2/3

  • Tripod: Head Attachment Fitting

    75mm Bowl

  • Tripod: Independent Leg Spread

    23, 50, 70 deg

  • Tripod: Leg Cross Section

    Round

  • Tripod: Leg Tube Diameters

    34.2, 29.2, 24.8mm

  • Tripod: Leg Lock Type

    Flip lock

  • Tripod: Spiked/Retractable Feet

    No (tripod has rubber feet)

  • Tripod: Head Mount Thread Size

    None (tripod has 75mm bowl)

  • Tripod: Center Brace

    None

  • Tripod: Bubble Level

    None

  • UPC Code

    719821417101

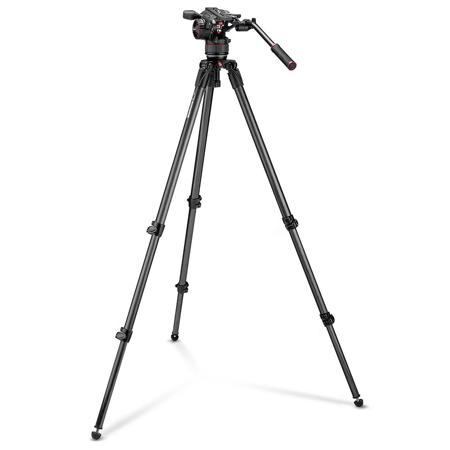

About Manfrotto Nitrotech N8

NITROTECH - Head with a Core

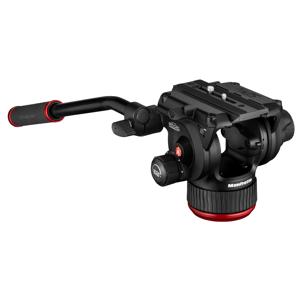

Nitrotech head

Nitrotech is a revolutionary head that combines all of the most successful features of the Manfrotto Video Heads range with a breakthrough technology for continuous counterbalance.

Nitrotech is not a replacement of the Bridging Technology but a complement to the full range of video heads. From the BeFree Live to the Bridging Technology, to the Nitrotech, there is something for everyone!

Innovative. From Every Angle.

FLUIDITY, COUNTERBALANCE & VERSATILITY. THAT IS WHY THERE IS NOTHING ELSE LIKE NITROTECH.

Matt Workman - CINEMATOGRAPHER / OWNER OF CINEMATOGRAPHY DATABASE:
“This new video head is light weight, intuitive to operate and it has a flat base which gives it a wide range of options for mounting.”

Innovative. From Every Angle.
Nitrogen piston mechanism

Nitrogen piston mechanism - ensures continuous counterbalance system up to 17.6 lbs. @ 55mm C.O.G.

Side Lock Sliding Plate

Side lock sliding plate mechanism - for fast and precise set-up of the camera.

Illuminated levelling bubble

Illuminated levelling bubble - for easy set-up. 75mm Flat Base enables a wide variety

Tilt fluidity

Variable Fluid Drag system ensures smooth movements.

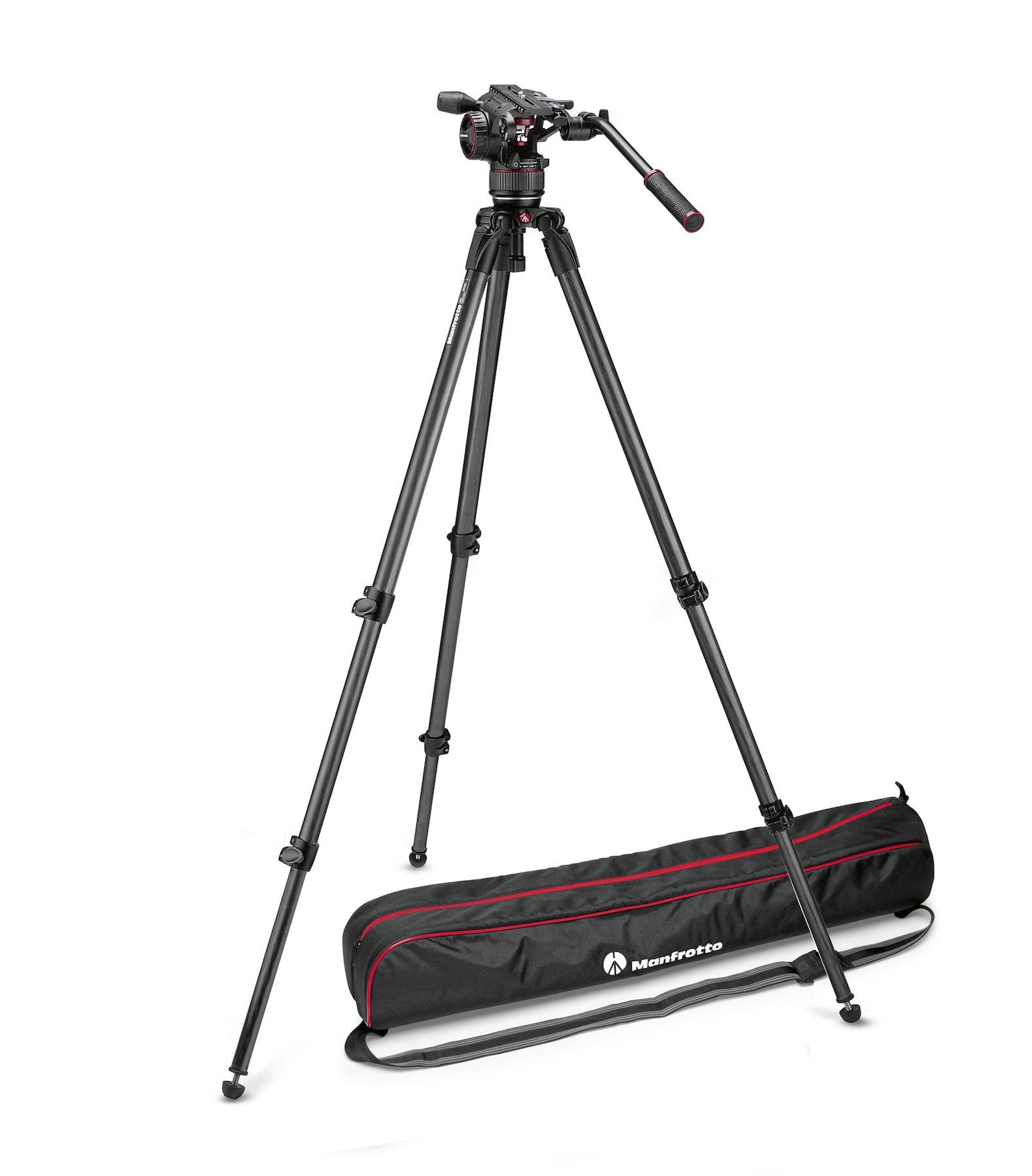

535 Carbon Fiber Two-Stage Video Tripod

Manfrotto 535

The lightweight all-in-one tripod for videographers. This three-section Carbon Fiber Two-Stage video tripod is the solution for videographers in need of a portable product that doesn't sacrifice on precision.

Thanks to its half-bowl carbon fiber tubes and magnesium die-casting, it is extremely lightweight, yet remarkably strong and durable. Whether you're filming in studio or out on the road, this is a tripod that you can depend on for the long run.

That's not all: this tripod also has an astonishing height range. Reduce it all the way down to 10.6" and easily store it in your kit. Then, when the need arises, you can extend it all the way to 128"! Never let anything get in the way of your goals. Frame and shoot with more freedom, and show the world your unique style.

This video tripod includes a new leg angle selector for quick, easy, accurate independent leg angle adjustments. It also features a 75mm half bowl so you can use it with mid-range video heads whenever you want. Cut out all those excess adjustments. Enjoy more time to craft your skill.

What's in the box:

  • Manfrotto Nitrotech N8 Video Head
  • Quick Release Plate (504PLONG)
  • Pan Handle
  • 535 Carbon Fiber Video Tripod
  • Padded Carrying Bag
  • 5 Year Limited Warranty (6 Months + 4 Years & 6 Months Extension with Online Registration)
