Manfrotto Nitrotech N8 Specifications

  • Head: Load Capacity

    17.6 lbs (7.9kg)

  • Head: Tripod Head

    75mm flat base

  • Head: Balance Plate

    Sliding, 1/4" and 3/8" screws

  • Head: Center of Gravity

    2.2" (55mm)

  • Head: Tilt Drag

    Fluid

  • Head: Tilt Range

    -70 to +90 deg

  • Head: Counterbalance System

    Continuous, nitrogen piston

  • Head: Pan Range

    360 deg

  • Head: Pan Drag

    Fluid

  • Head: Leveling Bubble/Illuminated

    Yes/Yes

  • Head: Material of Construction

    Aluminum

  • Head: Height

    5.8" (14.7cm)

  • Head: Weight

    4.84 lbs (2.2kg)

  • Tripod: Material

    Black anodized aluminum

  • Tripod: Maximum Height

    60.63" (154cm)

  • Tripod: Minimum Height

    11.81" (30cm)

  • Tripod: Closed Length

    27.17" (69 cm)

  • Tripod: Load Capacity

    44 lbs (20kg)

  • Tripod: Bubble Level

    Yes

  • Tripod: Weight

    7.72 lbs (3.5kg)

  • Tripod: Leg Stages / Sections

    2/3

  • Tripod: Head Attachment Fitting

    75mm Bowl

  • Tripod: Leg Cross Section

    Round

  • Tripod: Leg Tube Diameters

    16, 25mm

  • Tripod: Leg Lock Type

    Flip lock

  • Tripod: Spiked/Retractable Feet

    No (tripod has removable rubber feet)

  • Tripod: Center Brace

    Mid-level spreader

  • Tripod: Suggested Dolly

    114MV - 181B

  • UPC Code

    719821417132

About Manfrotto Nitrotech N8

NITROTECH - Head with a Core

Nitrotech head

Nitrotech is a revolutionary head that combines all of the most successful features of the Manfrotto Video Heads range with a breakthrough technology for continuous counterbalance.

Nitrotech is not a replacement of the Bridging Technology but a complement to the full range of video heads. From the BeFree Live to the Bridging Technology, to the Nitrotech, there is something for everyone!

Innovative. From Every Angle.

FLUIDITY, COUNTERBALANCE & VERSATILITY. THAT IS WHY THERE IS NOTHING ELSE LIKE NITROTECH.

Matt Workman - CINEMATOGRAPHER / OWNER OF CINEMATOGRAPHY DATABASE:
“This new video head is light weight, intuitive to operate and it has a flat base which gives it a wide range of options for mounting.”

Innovative. From Every Angle.
Nitrogen piston mechanism

Nitrogen piston mechanism - ensures continuous counterbalance system up to 17.6 lbs. @ 55mm C.O.G.

Side Lock Sliding Plate

Side lock sliding plate mechanism - for fast and precise set-up of the camera.

Illuminated levelling bubble

Illuminated levelling bubble - for easy set-up. 75mm Flat Base enables a wide variety

Tilt fluidity

Variable Fluid Drag system ensures smooth movements.

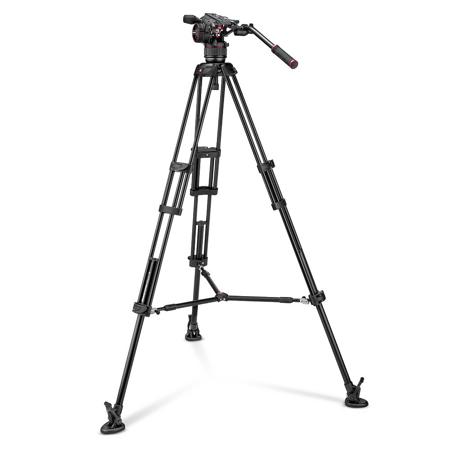

546B Aluminum Professional Video Tripod with Mid-Level Spreader

Manfrotto 546B

Versatile, robust, and precise, the Pro Video Tripod GR SP 23 is a top quality choice for professional photographers. Heavy-duty and rigid, it features a two-stage design and is ideal for a variety of shooting assignments. For creating professional films and videos, this must-have video tripod gets the job done with ease.

Featuring a die-cast aluminum crown with a 75mm bowl, it can be used with a variety of equipment. Able to safely support an impressive payload of up to 44 lbs. and compatible with various dollies, it is a reliable choice for almost any job. Featuring a telescopic ground-level spreader, you'll be able to easily level you shots no matter the terrain. The spreader also ensures that your video tripod won't topple over in windy conditions. It also features rubber feet which can be removed to reveal metal spikes. Use the rubber feet for smooth floors, and the spike feet for rugged terrain and rest assured knowing that you gear is safe. With a Minimum height of 11.8" and a maximum height of 60.6", you'll be able to capture a variety of perspectives.

An all-in-one solution for photographers looking to take their practice to the next level, this must-have accessory is a smart investment. Designed in Italy with the highest standards of quality, it will consistently get the job done throughout its long lifespan.

What's in the box:

  • Manfrotto Nitrotech N8 Video Head
  • Long Quick-Release Mounting Plate (504PLONG)
  • Pan Handle
  • 546B Pro Video Tripod with Mid-level Spreader
  • Padded Carrying Bag
  • 5 Year Limited Warranty (6 Months + 4 Years & 6 Months Extension with Online Registration)
