Manfrotto Nitrotech N12 Specifications

Nitrotech N12 Video Head

Nitrotech N12 Video Head

Jump to...
  • Load Capacity

    26.4 lb (12.0kg)

  • Payload Range

    8.8 to 26.4 lb (4.0 to 12.0kg)

  • Tripod Head

    75 mm flat base

  • Balance Plate

    Sliding, 1/4" and 3/8" screws

  • Center of Gravity

    2.2" (55mm)

  • Tilt Drag

    Fluid

  • Tilt Range

    +90 to -70 Degree

  • Counterbalance System

    Continuous, nitrogen piston

  • Pan Range

    360 Degree

  • Pan Drag

    Fluid

  • Leveling Bubble/Illuminated

    Yes/Yes

  • Material of Construction

    Aluminum

  • Height

    5.8" (14.7cm)

  • Weight

    5.0 lb (2.3kg)

Carbon Fiber Twin Leg Tripod

Jump to...
  • Head Mount Type

    100 mm Bowl

  • Load Capacity

    44.1 lb (20.00kg)

  • Maximum Working Height

    60.24" (153cm) (with Spreader)

  • Minimum Working Height

    23.03" (58.5cm) (with Spreader)

  • Folded Length

    27.17" (69cm)

  • Materials

    Carbon Fiber

  • Leg Lock Type

    Lever Lock

  • Leg Positions

    Continuously Adjustable

  • Independent Leg Spread

    Yes

  • Leg Sections

    3

  • Tripod Feet Features

    Dual Spiked

  • Spreader

    Mid-Level (Included)

  • Weight

    6.61 lb (3.00kg)

About Manfrotto Nitrotech N12

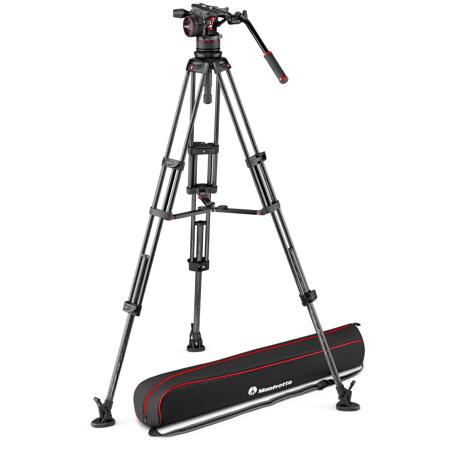

Manfrotto Nitrotech Head & Carbon Fiber Twin Leg Tripod

The Manfrotto Nitrotech Head & Carbon Fiber Twin Leg Tripod system combines a state-of-the-art head and a premium-quality tripod to meet the demands of professional filmmaking and other similar applications. The carbon fiber tripod comes with either a mid-level spreader or a ground spreader—with telescoping arms for easy leg angle adjustments—and is built to support heavier camera and accessory combinations (with a total payload capacity of 44.1 pounds) while remaining lightweight for easy transport. It features a rigid two-stage leg design, secure leg locks, and twin spiked feet with rubber overshoes to provide stability and security in all kinds of terrain—even flat, soft, or uneven surfaces. The included Nitrotech N8 or N12 fluid video head offers a maximum payload of 17.6 (N8) to 26.4 (N12) pounds and utilizes a Nitrogen piston counterbalance system for precise control based on the weight of your camera rig. Other features include a variable fluid drag system to ensure the smoothest panning and tilting shots; a sliding plate attachment with side-lock mechanism for quick and easy camera mounting; and a flat base mount with a ⅜-inch thread connection to support sliders, jibs, cranes, and more.

The video system includes the NITROTECH N12 fluid video head (flat base) and the MVTTWINMCUS carbon fiber twin leg with middle spreader tripod.

The NITROTECH N12 fluid video head features state-of-the-art technology consisting in a Nitrogen piston mechanism that allows continuous counterbalance system that enables precise control of a camera and accessories from 4 to 12 Kg @ 55mm C.O.G..

The variable fluid drag system function on both pan and tilt allows smooth, judder-free movement. It also features a 3/8" Easy Link equipped with an anti-rotation function that enables an external monitor or other accessories to be fitted.

The sliding plate attachment side-lock mechanism allows safe, quick and easy camera attachment. The NITROTECH head has a flat base mount with a standard 3/8" thread that is highly versatile for different support combinations (tripod, slider, jib or crane).

The head attaches to the tripod thanks to a 100 mm half ball.

The MVTTWINMCUS carbon fiber twin leg with middle spreader video tripod is a professional quality tripod with a two-stage, extremely rigid and stable design making it ideal for all kinds of assignments. If you want to create professional level videos or films, then this is the must have tripod. It features an aluminum casting 100mm bowl and it comes also with an aluminum adapter that converts the bowl into a 75mm when needed.

The tripod has mid-level spreader with telescopic arms that helps you to set leg angles accurately. It is also detachable, allowing the usage of the tripod also in combination with the ground spreader Manfrotto 165MV which is sold separately.

Leg locks are secure and reliable and twin spiked feet with rubber overshoes are provided for solid grounding. For maximum versatility, the tripod can be used with various dollies (114MV and 181B). With its combination of robust construction and compatibility options, this tripod definitely has it all.

The system is supplied with its own padded carrying bag.

Manfrotto Nitrotech N12 Features

  • Fluid video head with continuous counterbalance system (4-12 Kg)
  • Variable fluid pan & tilt drag system
  • Flat base head & dedicated 100mm half ball for precision levelling
  • Carbon fiber twin leg tripod for greater rigidity and lightness
  • Adjustable middle spreader for extra stability and versatility

Key Features

  • Fluid video head with continuous counterbalance system (4-12 Kg)
  • Variable fluid pan & tilt drag system
  • Flat base head & dedicated 100mm half ball for precision levelling
  • Carbon fiber twin leg tripod for greater rigidity and lightness
  • Adjustable middle spreader for extra stability and versatility

What's in the box:

  • Nitrotech N12 Head
  • Panhandle
  • Ruled 504PLONG Plate
  • Carbon Fiber Twin Leg Video Tripod with Mid-Level Spreader
  • 100 to 75mm Bowl Adapter
  • 3x Rubber Shoes
  • Padded Carry Bag
  • Manfrotto 5 Year Limited Warranty (2 Years + 3 Years Extension with Online Registration)
