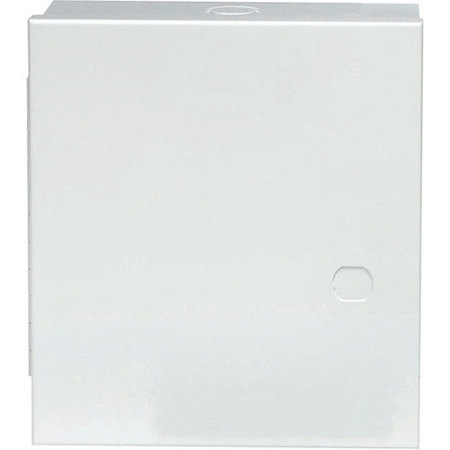

Bosch 8-Channel Indoor Power Supply, 120VAC Input
See all Bosch items

Bosch 8-Channel Indoor Power Supply, 120VAC Input, 24/28VAC Output, 3.5A Total Output

SKU: BHALTV248UL3

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Bosch Power Supply Specifications

  • Indoor/Outdoor

    Indoor

  • Camera Output

    8

  • Used for

    VG4 AutoDomes Modular Camera Series: 100, 200, 300, and 500i Series analog and IP applications
    AutoDome Easy IP Cameras: All analog and IP applications
    AutoDome Easy II Cameras: All applications
    Dinion Series: All analog and IP applications
    FlexiDome Series: All analog and IP applications

  • Used for (cont.)

    Unity Series Prepackaged Cameras: All analog and IP applications
    Extreme Environment Cameras: All analog and IP applications
    Extreme Environment Infrared Cameras: All analog, IP and Bullet camera applications
    High-Speed Positioning System: All applications

  • Voltage Input

    115 VAC +/- 10%, 50/60 Hz, 0.9 A

  • Voltage Output

    24/28 VAC, unregulated

  • Total Output Current

    24 VAC: 3.5 A
    28 VAC: 3.0 A
    Max. per Channel: 3.5 A

  • Max. Current Output per Channel

    3.5 A

  • Fuse Ratings

    3.5 A

  • Main Fuse Ratings

    5.0 A

  • Maximum Power Draw

    24 VAC: 84 W
    28 VAC: 72 W

  • Indicators

    AC Power LED and On/Off switch, inside cabinet

  • Connections

    Main Input: Flying leads
    Low-voltage Outputs: Screw terminals

  • Mechanical

    Construction/Finish: Beige metal case
    Cable Entry: Knockouts for conduits

  • Temperature

    Operating: 32 to 122 deg. F (0 to 50 deg. C)
    Storage: -40 to 65 deg. C (-40 to 149 deg. F)

  • Humidity

    30% to 85% relative

  • Certifications and approvals

    Electromagnetic Compatibility (EMC): Complies with FCC Part 15 and ICES-003 regulations
    Product Safety: Complies with UL (UL 2044), CSA Standards (CSA Standard C22.2 No.1-98), and CE
    RoHS Compliance
    Environmental: WPTV244300UL: NEMA 4X, IP65 rated

  • Dimensions (HxWxD)

    8.5 x 7.5 x 3.5" (216 x 191 x 89mm)

  • Weight

    6.8 lbs (3.08kg)

  • UPC Code

    800549080514

About Bosch Power Supply

The ALTV248UL3 is an eight-channel power supply for indoor camera applications. This power supply provides a total of 3.5 Amps (3.0 Amps at 28 VAC output), with each channel limited to a maximum output of 3.5 Amps. This model requires a 115 VAC, 50/60 Hz power source.

Bosch Power Supply Features

  • Multi-channel 24 or 28 VAC power output supplies
  • Wall-mountable steel enclosure
  • Surge protection
  • Power Off/On Switch
  • LED power indicator
  • Easy to install

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Bosch 8-Channel Indoor Power Supply
  • Bosch 3 Year Warranty
