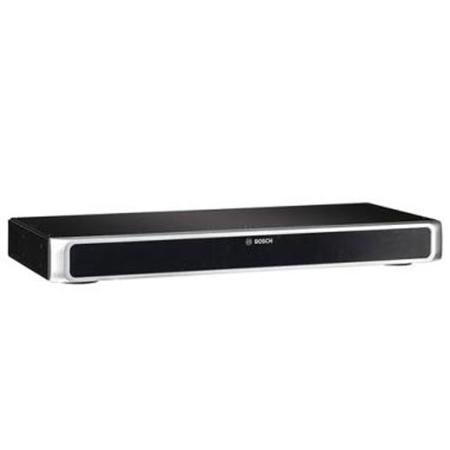

Bosch CCSD-EXU Extension Unit for CCS 1000 D Digital Discussion System, Powers Up to 85 Additional Discussion Devices

SKU: BHCCSDEXU MFR: F.01U.307.207
Earn VIP Reward Points

Key Features

  • Expand your Bosch CCS 1000 D discussion system with this extension unit.
  • Powers up to 85 additional discussion devices, enhancing audio coverage.
  • Ensures seamless connectivity for large conferences with multiple participants.
  • This audio extension unit supports tabletop or 19" rack mounting options.
  • Durable metal construction in traffic black ensures long-lasting performance.
  • Optimize sound quality and device management with this essential accessory.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Bosch CCSD-EXU Specifications

  • Supply Voltage Adapter

    100 to 240 VAC, 50/60 Hz

  • Current Consumption Voltage Adapter

    1.9 A (100 VAC) to 1 A 240 (VAC)

  • DC Voltage Control Unit

    24 V, 6.0 A

  • Maximum Number Of Discussion Devices

    Per Extension Unit: 40 Discussion Devices per trunk/tap-off 85 Discussion Devices in total 24 V, Max 5.2 A (short-circuited protected)

  • Height of feet

    5.5mm (0.22")

  • Mounting

    Tabletop or 19" rack

  • Material (Top and Base)

    Painted metal

  • Color (Top and Base)

    Traffic black (RAL 9017) matt-gloss

  • Rim Front Panel

    Pearl light gray (RAL 9022) matt-gloss

  • Operating Temperature

    5 to 45 deg. C (41 to 113 deg. F)

  • Dimensions (HxWxD)

    Including Feet: 45 x 440 x 200mm (1.77 x 17.32 x 7.87")

  • Weight

    Approx. 4.12kg (9.08 lbs)

  • UPC Code

    800549783750

About Bosch CCSD-EXU

Let the CCSD-EXU Extension Unit be the powerhouse behind your expanded Bosch CCS 1000 D Digital Discussion System. Designed to seamlessly integrate with your existing Control Unit, either the CCSD-CU or CCSD-CURD, this durable and high-quality extension unit is the key to accommodating larger groups and more complex conferencing setups. With the capability to power up to 85 additional discussion devices, such as the CCSD-DS or CCSD-DL, the CCSD-EXU ensures that every voice in your large-scale meetings or presentations is heard clearly.

Innovative in its design, the CCSD-EXU Extension Unit is not only stylish but also user-friendly, boasting an automatic on/off feature that is synchronized with the Control Unit for effortless operation. Whether you're looking to expand your system to include more participants or enhance the audio coverage in expansive venues, this extension unit offers unparalleled versatility and reliability.

When you choose the CCSD-EXU Extension Unit, you're investing in a product from Bosch, a brand synonymous with high-quality audio and video solutions. This extension unit is an ideal choice for organizations that require a robust and scalable discussion system. Expand your Bosch CCS 1000 D Digital Discussion System confidently, knowing that the CCSD-EXU Extension Unit is built to facilitate effective communication in even the most demanding environments.

Bosch CCSD-EXU Features

  • Expands the CCS 1000 D Digital Discussion System up to 245 Discussion Devices
  • Easily connected to system by use of 6-pole circular connectors
  • Built-in splitter allows for installation at any convenient point in system, including loop-through for cascading extension units
  • One trunk and two tap-off connections with short-circuit protection
  • Freestanding or 19" rack mounted; housing similar to control unit

Key Features

  • Expand your Bosch CCS 1000 D discussion system with this extension unit.
  • Powers up to 85 additional discussion devices, enhancing audio coverage.
  • Ensures seamless connectivity for large conferences with multiple participants.
  • This audio extension unit supports tabletop or 19" rack mounting options.
  • Durable metal construction in traffic black ensures long-lasting performance.
  • Optimize sound quality and device management with this essential accessory.

What's in the box:

  • Bosch CCSD-EXU Extension Unit
  • Mains Power Cord
  • 24 VDC Power Supply
  • Set of Feet for Table Top Use
  • Set of 19 " 1U Mounting Brackets
  • Safety Instructions
  • Quick Installation Guide
  • Bosch Warranty
