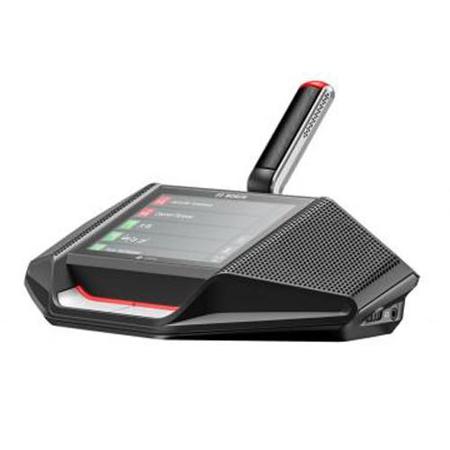

Bosch DCNM-DE Discussion Device with 4.3" Touchscreen (Without Microphone)

SKU: BHDCNMDE MFR: F.01U.313.729
Earn VIP Reward Points

Key Features

  • Enhance meetings with crystal-clear audio using this discussion device for superior sound quality.
  • Simplify conference setup: this Bosch device ensures seamless connectivity for productive discussions.
  • Experience intuitive control with the 4.3" touchscreen, making conference management a breeze.
  • Ensure every voice is heard; microphone clarity is optimized for clear communication in meetings.
  • This discussion device offers broad compatibility, integrating easily with your existing systems.
  • Enjoy a streamlined conferencing experience with easy setup and user-friendly interface features.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$139.99

3 Year

$184.99

5 Year

$339.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Bosch DCNM-D Specifications

Electrical

Electrical

Jump to...
  • Supply voltage

    48 VDC

  • Power consumption

    5 W

  • Frequency response

    100 Hz to 20 kHz (-3 dB at nominal level)

  • THD at nominal level

    < 0.1 %

  • Dynamic range

    > 90 dB

  • Signal-to-noise ratio

    > 90 dB

Audio inputs

Jump to...
  • Nominal microphone input

    80 dB SPL according IEC60914

  • Maximum microphone input

    110 dB SPL according IEC60914

Audio outputs

Jump to...
  • Loudspeaker nominal output

    72 dB SPL at 0.5 m

  • Loudspeaker maximum output

    87 dB SPL

  • Headphone nominal output

    0 dBV

  • Headphone maximum output

    3 dBV

  • Headphone load impedance

    > 32 ohm <1k ohm

  • Headphone output power

    65 mW

  • Screen size

    109.22 mm (4.3 in)

  • Screen type

    Capacitive multi-touch

  • Supported contactless NFC tag

    According to: ISO/IEC14443
    Type A (from 106 kbps to 848 kbps. MIFARE 106kbps)

Environmental

Jump to...
  • Operating temperature

    5 deg. C to +45 deg. C (41 deg. F to +113 deg. F)

  • Storage and transport temperature

    -30 deg. C to +70 deg. C (-22 deg. F to +158 deg. F)

  • Relative humidity

    < 90 %, > 5%

General

Jump to...
  • Mounting

    Tabletop

  • Dimensions (HxWxD)

    Without microphone: 72 x 259 x 139mm (2.83 x 10.20 x 5.47")

  • Weight

    2.3 lbs (1.04kg)

  • UPC Code

    800549800952

About Bosch DCNM-D

Bring the power of advanced technology to your conference room with the DICENTIS DCNM-DE Discussion Device, featuring a 4.3" touchscreen interface that revolutionizes meeting engagement and efficiency. This state-of-the-art device is a key component of the DICENTIS Conference System, which utilizes the innovative IP-based OMNEO media networking architecture by Bosch to provide a seamless and scalable communication experience.

Crafted with an elegant design, the DICENTIS Discussion Device is engineered to facilitate clear and effective communication among participants. It allows users to effortlessly speak, signal their desire to contribute to the discussion, and listen to the ongoing conversation with crystal-clear audio quality. The device's intuitive 4.3-inch capacitive multi-touchscreen is a gateway to enhanced meeting management, displaying vital information such as the current speaker, the list of delegates waiting to speak, available translations, and voting details, all contributing to a streamlined and productive meeting environment.

The DICENTIS Discussion Device is not only sophisticated in functionality but also flexible in its usage. It is fully software upgradable, ensuring that it can adapt to future technological advancements and meeting requirements. The device offers a plethora of features, including the ability to be used independently for language selection and voting. With a simple software adjustment, the device can be shared between two participants, allowing them to engage in the proceedings in different languages and cast individual votes, thereby maximizing resource efficiency.

For international meetings, the device supports multiple user interface languages, presented in their original characters, enhancing accessibility for a global audience. Additionally, the device can be personalized with a customer's logo, creating a bespoke experience for any organization. Built-in Near Field Communication (NFC) technology facilitates contactless identification, further streamlining the user experience.

Security is paramount in any discussion environment, and the DICENTIS Discussion Device ensures confidentiality with robust encryption protocols. The device also boasts a high signal-to-noise ratio for unmatched speech intelligibility, with a built-in feedback suppressor to prevent acoustic feedback, allowing for simultaneous use of the loudspeaker and microphone.

The device is designed with user comfort in mind, featuring a headphone connection with independent volume control on both sides, ensuring participants can hear proceedings clearly, even in noisy environments. The top side of the device showcases the responsive touchscreen, while the sides are equipped with rotary controls for headphone volume adjustment.

Interconnectivity is a breeze with the DICENTIS Discussion Device, which supports both star and loop-through connection topologies. It includes a socket for connecting optional pluggable microphones such as the DCNM HDMIC, DCNM MICS, or DCNM MICL, and two 3.5 mm stereo jack headphone sockets. The device's 2x RJ45 compatible connections ensure reliable system communication and power, with hot plug-and-play capability for effortless setup and integration.

Elevate your meeting experience with the DICENTIS DCNM-DE Discussion Device, where sophisticated design meets cutting-edge technology for unparalleled communication and collaboration.

Bosch DCNM-D Features

  • Advanced conference device with a 4.3" capacitive multi-touchscreen for efficient meeting management
  • Integrated with IP-based OMNEO media networking architecture for seamless & scalable communication
  • Dual-use functionality for language selection and voting, enabling shared device use
  • Supports multiple user interface languages and displays in original characters for global accessibility
  • Robust encryption protocols for secure and confidential information handling
  • High signal-to-noise ratio for crystal clear sound and built-in feedback suppressor for simultaneous microphone and loudspeaker use
  • Equipped with Near Field Communication (NFC) for contactless identification
  • Includes headphone connection with independent volume control and optional pluggable microphone compatibility
  • Supports star and loop-through connection topologies with hot plug-and-play capability

Key Features

  • Enhance meetings with crystal-clear audio using this discussion device for superior sound quality.
  • Simplify conference setup: this Bosch device ensures seamless connectivity for productive discussions.
  • Experience intuitive control with the 4.3" touchscreen, making conference management a breeze.
  • Ensure every voice is heard; microphone clarity is optimized for clear communication in meetings.
  • This discussion device offers broad compatibility, integrating easily with your existing systems.
  • Enjoy a streamlined conferencing experience with easy setup and user-friendly interface features.
