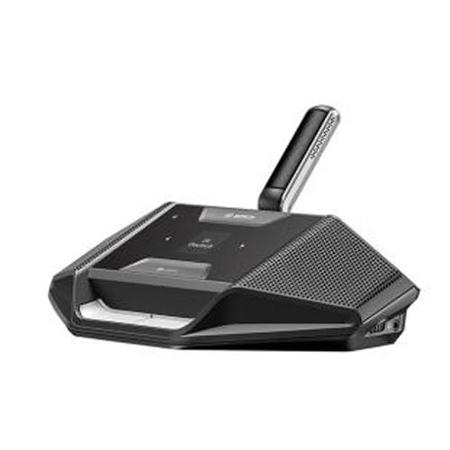

Bosch DCNM-DSL Discussion Device with Language Selector (Without Microphone)

SKU: BHDCNMDSL MFR: F.01U.313.728
Earn VIP Reward Points

Key Features

  • Enhance your conference audio with crystal-clear sound using this discussion device.
  • This Bosch device ensures seamless audio-visual integration for professional presentations.
  • Simplify multilingual meetings; select your language with ease on this discussion system.
  • Enjoy intuitive control with the LCD multi-touch screen for efficient conference management.
  • Achieve superior audio quality with a wide frequency response from 100 Hz to 20 kHz.
  • Integrate effortlessly with existing VoIP systems for streamlined communication setups.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Bosch DCNM-D Specifications

Electrical

Electrical

Jump to...
  • Supply voltage

    48 VDC

  • Power consumption

    3.6 W

  • Frequency response

    100 Hz to 20 kHz (-3 dB at nominal level)

  • THD at nominal level

    < 0.1 %

  • Dynamic range

    > 90 dB

  • Signal-to-noise ratio

    > 90 dB

Audio inputs

Jump to...
  • Nominal microphone input

    80 dB SPL according IEC60914

  • Maximum microphone input

    110 dB SPL according IEC60914

Audio outputs

Jump to...
  • Loudspeaker nominal output

    72 dB SPL at 0.5 m

  • Loudspeaker maximum output

    87 dB SPL

  • Headphone nominal output

    0 dBV

  • Headphone maximum output

    3 dBV

  • Headphone load impedance

    > 32 ohm

  • Headphone output power

    65 mW

  • Screen size

    36.58 mm (1.44 in)

  • Screen type

    LCD multi-touch

  • Supported contactless NFC tag

    According to: ISO/IEC14443
    Type A (from 106 kbps to 848 kbps. MIFARE 106kbps)

Environmental

Jump to...
  • Operating temperature

    5 deg. C to +45 deg. C (41 deg. F to +113 deg. F)

  • Storage and transport temperature

    30 deg. C to +70 deg. C (-22 deg. F to +158 deg. F)

  • Relative humidity

    < 90 %, > 5%

General

Jump to...
  • Mounting

    Tabletop

  • Dimensions (HxWxD)

    Without microphone: 72 x 259 x 139mm (2.83 x 10.20 x 5.47")

  • Weight

    2.1 lbs (0.95kg)

  • UPC Code

    800549800945

About Bosch DCNM-D

Be at the forefront of conference technology with the DCNM-DSL Discussion Device with Language Selector, a sophisticated and high-tech solution designed by Bosch to enhance the clarity and inclusivity of your meetings. This advanced device is a testament to innovation, seamlessly integrating into the DICENTIS Conference System, which is renowned for its open platform and scalability. As your conference needs grow, so does the capability of your system, thanks to the easy integration of compatible products.

The DCNM-DSL Discussion Device is the epitome of user-friendly design, allowing participants to effortlessly engage in discussions. They can speak, signal their desire to speak, and listen to the conversation with ease. The standout feature of this device is its language selector, which empowers delegates to listen to the speaker in their chosen language, ensuring that international conferences are accessible to all attendees. Language selection is intuitive, activating automatically when headphones are connected, and languages are displayed in both native characters and ISO abbreviation form for easy identification.

The device boasts a crisp 1.44-inch screen that clearly displays language options and numbers, enhancing the user experience. Built-in Near Field Communication (NFC) technology enables fast participant recognition, streamlining the process of identification. While the device comes with a language selection license, additional software licenses can unlock further functionalities such as dual-use and audio mute capabilities.

In terms of speech intelligibility, the DCNM-DSL Discussion Device delivers crystal clear sound with an exceptional signal-to-noise ratio, ensuring maximum speech intelligibility. The built-in loudspeaker and microphone can operate simultaneously, providing a natural face-to-face meeting experience, while a feedback suppressor prevents any acoustic feedback.

Security is paramount in any conferencing environment, and this device ensures confidentiality with robust encryption. Although the device does not come with a microphone, it offers a socket for connecting pluggable microphones such as the DCNM HDMIC, DCNM MICS, or DCNM MICL, which are available separately.

For personal listening, the device features a headphone connection with independent volume control on both sides, allowing participants to hear the speaker clearly, even in noisy environments. The top side of the device is equipped with a 1.44-inch display and touch buttons, along with NFC and microphone indicators, while LED indicators provide visual cues for microphone status and speaking permissions.

The ergonomic design includes rotary controls for headphone volume and multiple interconnections, including sockets for microphones and two 3.5 mm stereo jack headphone sockets. The device supports both star and loop-through connection types and offers hot plug-and-play functionality for ease of use.

In summary, the DCNM-DSL Discussion Device with Language Selector is an essential tool for any modern, international conference setting, offering unparalleled clarity, ease of use, and adaptability to meet the dynamic needs of today's communication environments.

Bosch DCNM-D Features

  • Advanced Bosch DCNM-DSL Discussion Device with intuitive language selector for inclusive international meetings
  • High-tech NFC technology for fast participant recognition and streamlined meeting setup
  • Crystal clear audio with high signal-to-noise ratio and built-in feedback suppressor for uninterrupted discussions
  • Secure and confidential communication with robust encryption for peace of mind
  • User-friendly design featuring a 1.44-inch display, touch buttons, and independent headphone volume control
  • Versatile connectivity with microphone socket, dual headphone jacks, and RJ45 compatible connections for easy integration

Key Features

  • Enhance your conference audio with crystal-clear sound using this discussion device.
  • This Bosch device ensures seamless audio-visual integration for professional presentations.
  • Simplify multilingual meetings; select your language with ease on this discussion system.
  • Enjoy intuitive control with the LCD multi-touch screen for efficient conference management.
  • Achieve superior audio quality with a wide frequency response from 100 Hz to 20 kHz.
  • Integrate effortlessly with existing VoIP systems for streamlined communication setups.
