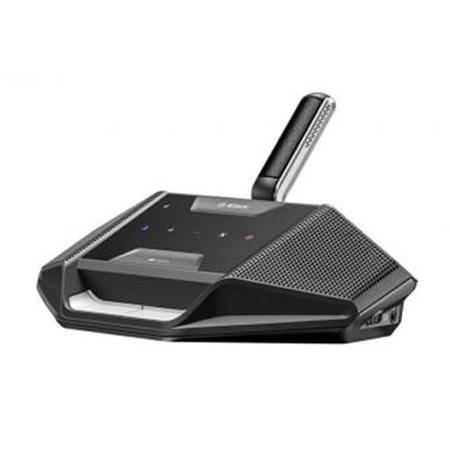

Bosch DCNM-DVT Discussion Device with Voting (Without Microphone)

SKU: BHDCNMDVT MFR: F.01U.313.727
Earn VIP Reward Points

Key Features

  • Enhance your meetings with crystal-clear audio using this discussion device.
  • Ensure every voice is heard with a wide frequency response from 100 Hz to 20 kHz.
  • Experience seamless conference calls with a dynamic range greater than 90 dB.
  • The Bosch DCNM-DVT offers capacitive touch buttons for easy, intuitive control.
  • Integrate effortlessly into existing systems with a standard tabletop mounting.
  • This audio conferencing accessory supports contactless NFC tag for added convenience.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Bosch DCNM-D Specifications

Electrical

Electrical

Jump to...
  • Supply voltage

    48 VDC

  • Power consumption

    3.7 W

  • Frequency response

    100 Hz to 20 kHz (-3 dB at nominal level)

  • THD at nominal level

    < 0.1 %

  • Dynamic range

    > 90 dB

  • Signal-to-noise ratio

    > 90 dB

Audio inputs

Jump to...
  • Nominal microphone input

    80 dB SPL according IEC60914

  • Maximum microphone input

    110 dB SPL according IEC60914

Audio outputs

Jump to...
  • Loudspeaker nominal output

    72 dB SPL at 0.5 m

  • Loudspeaker maximum output

    87 dB SPL

  • Headphone nominal output

    0 dBV

  • Headphone maximum output

    3 dBV

  • Headphone load impedance

    > 32 ohm

  • Headphone output power

    65 mW

Environmental

Jump to...
  • Operating temperature

    5 deg. C to +45 deg. C (41 deg. F to +113 deg. F)

  • Storage and transport temperature

    -30 deg. C to +70 deg. C (-22 deg. F to +158 deg. F)

  • Relative humidity

    < 90 %, > 5%

General

Jump to...
  • Touch buttons

    Capacitive touch buttons

  • Mounting

    Tabletop

  • Dimensions (HxWxD)

    Without microphone: 72 x 259 x 139mm (2.83 x 10.20 x 5.47")

  • Weight

    2.1 lbs (0.95kg)

  • Supported contactless NFC tag

    According to: ISO/IEC14443
    Type A (from 106 kbps to 848 kbps. MIFARE 106kbps)

  • UPC Code

    800549800938

About Bosch DCNM-D

Discover the innovative DCNM-DVT Discussion Device with Voting, a high-tech, user-friendly, and reliable solution for your conference calls and meetings. This product, manufactured by the reputable Bosch brand, is a VoIP system accessory that includes a base station, designed to deliver crystal-clear audio for multiple participants.

The DCNM-DVT Discussion Device is part of the DICENTIS Conference System, a scalable solution that evolves with your growing needs. It utilizes the unique IP-based OMNEO media networking architecture developed by Bosch, ensuring seamless integration with compatible products.

This elegantly designed device allows participants to speak, register a request to speak, and listen to discussions. It incorporates standard parliamentary-style voting, with touch-buttons that light up only when voting is available, allowing participants to focus fully on the discussion.

The device also supports fast participant recognition via NFC tag identification. It can be configured for single-use or chairperson use via the PC configuration software application. It features five touch buttons to support electronic voting, a built-in Near Field Communication (NFC) contactless tag reader, and additional functionality through software licenses only.

The DCNM-DVT Discussion Device guarantees maximum speech intelligibility, thanks to a high signal-to-noise ratio. The loudspeaker and microphone can be active simultaneously, facilitating a face-to-face meeting experience. A built-in feedback suppressor prevents acoustic feedback, ensuring clear and uninterrupted communication.

Security is a priority with this device, as encryption ensures that information within the system remains confidential. It also includes a socket for connecting pluggable microphones.

The device features a headphone connection with independent volume control on both sides, ensuring that the speaker can be heard clearly, even in noisy environments. LED indicators on the device show the microphone's status, and rotary controls on both sides allow for independent headphone volume control.

Interconnections include a socket for a pluggable microphone, two 3.5 mm headphone sockets, and 2x RJ45 compatible connections for system communication and power. With its hot plug-and-play feature, the DCNM-DVT Discussion Device with Voting is a durable and reliable choice for your conference and meeting needs.

Bosch DCNM-D Features

  • High-tech DCNM-DVT Discussion Device with Voting for clear and efficient conference calls and meetings
  • Innovative IP-based OMNEO media networking architecture by Bosch for seamless system integration
  • User-friendly design with parliamentary-style voting buttons and NFC tag identification for fast participant recognition
  • Superior audio quality with high signal-to-noise ratio and built-in feedback suppressor for maximum speech intelligibility
  • Secure system with encryption to ensure confidentiality of information
  • Convenient plug-and-play feature, headphone connection with independent volume control, and multiple interconnections for system communication and power

Key Features

  • Enhance your meetings with crystal-clear audio using this discussion device.
  • Ensure every voice is heard with a wide frequency response from 100 Hz to 20 kHz.
  • Experience seamless conference calls with a dynamic range greater than 90 dB.
  • The Bosch DCNM-DVT offers capacitive touch buttons for easy, intuitive control.
  • Integrate effortlessly into existing systems with a standard tabletop mounting.
  • This audio conferencing accessory supports contactless NFC tag for added convenience.
