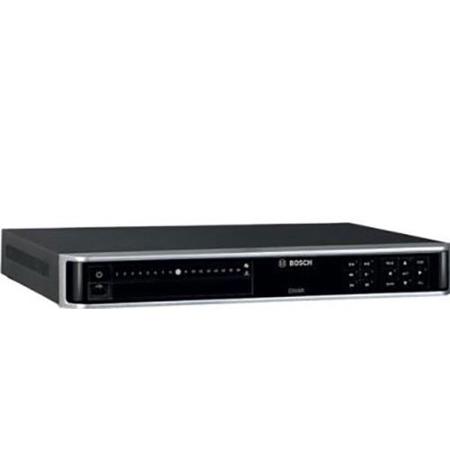

Bosch DIVAR Hybrid 3000 Series 16-Channel IP & 16-Channel Analog DVR with 2TB HDD, H.265, H.264, MJPEG

The DIVAR hybrid recorders can simultaneously record and view video from traditional analog cameras as well as the latest IP cameras. These advanced technologies, coupled with efficient network data transmission, deliver the high security and reliability required for modern surveillance systems. Simultaneous remote or local monitoring, recording, archive and playback functions are guided by simple menu selections and operator commands. The recorders can be installed with a maximum of 2 internal HDDs for video storage. Another option is a single HDD for storage, plus a DVD burner for video export. (This Model has 1 HDD with 2TB Capacity).

• Hybrid recording of up to 16 IP and 16 analog channels
• Compact, sturdy and stylish design
• 12MP IP camera support for view and playback
• Separate internet and IP camera networks

Latest video compression technology
The DIVAR supports H.264 video compression technology and is H.265-ready for the newest H.265 technology cameras to be released by Bosch. This technology dramatically reduces bandwidth and storage requirements while still delivering superb image and audio quality. Equipped with this newest video technology, DIVAR gives you the full benefits of the latest high-resolution cameras. The proof is in the pixels.

Camera IP support
The recorder supports Bosch IP cameras (and 3rd party IP cameras) complying to the ONVIF Profile S specifications. The recorder only supports IP cameras with a firmware version 6.30 or higher.

Simultaneous record and view
The DIVAR records multiple video and audio signals while simultaneously providing live multi-screen viewing and playback. Comprehensive search and playback functions provide quick recall and viewing of recorded video.

Simple operation
The DIVAR is very easy to install and use. Simply connect the cameras, apply power and follow the simple Install Wizard steps for initial setup. The unit can then record automatically with no further intervention required.

Alarms
All models have extensive alarm handling functions and telemetry control. Alarm functions include local inputs and relay outputs, plus motion detection in user-defined areas. If an alarm is detected, the DIVAR can:

• Send an e-mail notification and/or FTP push
• Sound a buzzer and/or display a warning
• Activate local alarm output

Local control
The unit can be easily operated and programmed via the on-screen display menu system using:

• The supplied mouse
• The front panel control keys
• The supplied remote control

Inputs and outputs
Video inputs, audio inputs/output and alarm inputs/outputs are located on the rear panel. Two video connectors (VGA/HDMI) provide simultaneous output for monitor A for live display (with zoom) and playback (display can be frozen and zoomed). The displays allow full-screen, multi-screen and sequenced viewing.

Network control
Use the PC software or built-in web application via a network for live viewing, playback and configuration.

Watermark
The DIVAR includes an authenticity check for both local and remote archives, ensuring recording integrity. An Archive Player is provided for playback of secure video files and to check if video is authentic.

Smartphone App
A DIVAR Viewer App from Bosch for iOS and Android devices is available for:

• Live and playback viewing
• Recorder configuration
• PTZ control

This means you can watch live video from cameras connected to the DVR from anywhere in the world. You can also control focus, pan, tilt and zoom on PTZ enabled cameras.

DDNS
Bosch offers its customers free Dynamic Domain Name Services (DDNS) for access to network-connected devices via a "friendly" hostname without the need for costly static IP addresses. This makes it easier for uninterrupted access to important video from devices regardless of their location.

Dome control
The DIVAR can control IP pan/tilt/zoom (PTZ) equipment using commands sent via IP connection (using ONVIF protocol for supported devices). RS-485 / RS-232 ports are available for serial communication to analog PTZ devices.

Supported protocols
The DIVAR supports Bosch protocol and Pelco P and D protocol.
