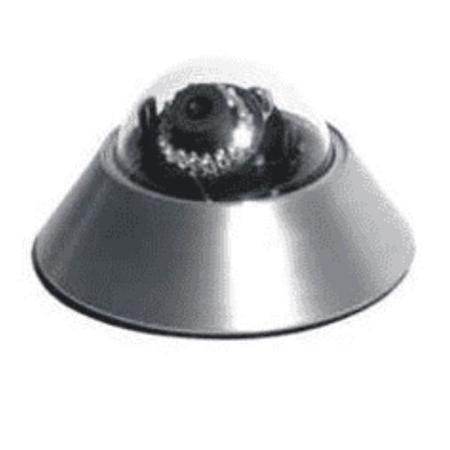

Bosch EX49N Outdoor Day & Night Ultra-Vandal Resistant Conical No-Grip Tint Dome Camera with 2.9mm Lens, 540 TVL (Color/Monochrome), 850nm, NTSC, Black

SKU: BHEX49MNX83H

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Bosch EX49N Specifications

  • CCD

    MX4 extended day/night CCD

  • Effective Pixels (HxV)

    768 x 494

  • Resolution

    540 TVL color / 540 TVL mono

  • Daytime Sensitivity

    0.02 Lux with F1.4 lens

  • Night-time Sensitivity

    0.0 Lux, works in total darkness

  • S/N Ratio

    Greater than 48 dB

  • Electronic Shutter

    Up to 1/100,000 s

  • Gamma

    0.45

  • Video Output

    1 Vp-p, 75 Ohms

  • Voltage Regulation

    Dual VRB design for enhanced electronic stability

  • Voltage Supply

    12 to 24 AC/DC

  • Power Consumption

    540 mA at 12 VDC, 6.5 W (max)

  • Operational Range

    -40 to 60 deg. C (-40 to 140 deg. F)

  • Humidity Range

    Up to 85% relative humidity

  • Base Construction

    CNC Anodized Aluminum

  • Dome Construction

    4 in. Semi-Spherical Polycarbonate

  • Dome Thickness

    3mm (0.12")

  • Gimbal

    Pan-Tilt-Twist for easy installation

  • Day-Night Switching

    Photocell-controlled, automatic

  • LEDs

    High-efficiency, spatially optimized, 850 nm

  • Number of LEDs

    18

  • Applications

    Night-time surveillance
    Zero-Lux environments
    Retail, schools, hospitals
    Commercial sites
    Hotels and gated communities
    Transportation hubs
    Restaurants / bars
    Retail establishments
    Industrial parks
    Banks
    Prisons and correctional facilities
    Hospitals
    Casinos
    Corporate campuses
    Schools, colleges and universities
    Vandal-prone locations

  • Dimensions (Dia.xH)

    4.6 x 3.68" (11.68 x 9.35cm)

  • Weight

    0.7kg (1.54 lbs)

  • UPC Code

    800549201001

About Bosch EX49N

The EX49N Conical No-Grip (CNG) domes are designed to be virtually impossible to grip or hang from. In high-risk areas, such as hospitals or prisons, the Integrated Day-Night cameras help prevent at-risk persons from self-inflicted harm. The CNG is ultra vandal-resistant and engineered for reliability and 24/7 night vision performance to 12 m (40'). Using a dual window IR-Cut and IR-Pass filter, the EX49N camera delivers brilliant color during day and sensitivity to infrared at night. Both ensure virtually zero focus shift between color and infrared modes, allowing sharp focus under all lighting conditions. The EX49N produces video signal characterized by low-smear, low-streak and excellent anti-blooming characteristics for effective active-infrared night vision.

The EX49N features base construction of CNC machined anodized aluminum. Anodized aluminum is an incredibly durable material with high corrosion resistance and heat resistant to over 649deg.C (1200deg. F). Unlike other finishes, anodized aluminum has astounding chemical stability and will resist changes to color or appearance, even under heavy exposure to ultraviolet rays. The one-piece CNC fabrication process ensures the highest degree of precision and unyielding mechanical strength.

A polycarbonate dome of 3mm thickness is utilized to protect internal camera components. Resistant to impact, fire, heat & UV, the polycarbonate dome is guaranteed unbreakable in the face of even the most vicious attacks. The weather-sealed EX49N is specified for performance in temperatures ranging from -40deg. C to +60deg. C (-40deg. F to +140deg. F).

Bosch EX49N Features

  • Ultra-vandal resistant construction
  • Conical No-Grip design impossible to grip or hang from, ideal for use in prisons and hospitals
  • Virtually zero focus shift from color to IR modes
  • 12 m (40 ft) of evenly-distributed night vision
  • Weather-sealed for performance in -40deg. C to +60deg. C (-40deg. F to +140deg. F)

What's in the box:

  • Bosch EX49N Outdoor Day & Night Ultra-Vandal Resistant Conical No-Grip Tint Dome Camera with 2.9mm Lens
  • Bosch 3 Year Warranty
