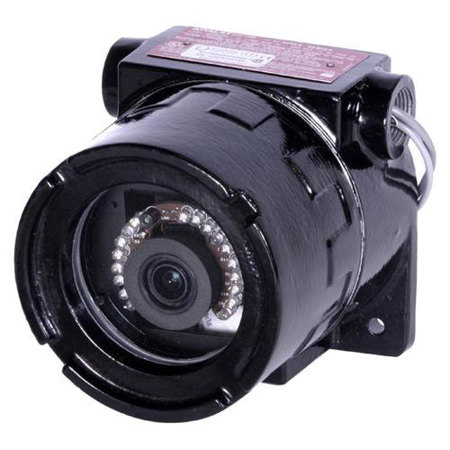

Bosch EX72N Explosion-Protected Integrated Day/Night Camera, 18 LEDs, 850 nm, 1/3" CCD, VA 9 to 22mm Lens

The EX72N is a tough, compact, explosion-protected camera with performance optics for effective surveillance in hazardous locations such as oil and gas, and chemical facilities. The EX72N incorporates a Day/ Night CCD with a mechanical filter for outstanding daytime color and 12 m (40 ft) active IR night vision under low light and no light conditions.

The EX72N is certified for ATEX Zone 1 or NEC Class I, Division 1 environments, the most stringent safety standards for explosion-protected performance. In practical terms, the Class I, Division 1 certifications signify that the EX72N is safe for use even in environments where explosive gases are present under normal operating conditions.

The EX72N incorporates high-strength design, featuring construction of sand-cast, copper-free aluminum strong enough to withstand an internal explosion. Threaded flame paths extinguish burning explosive gases and allow them to exit the housing harmlessly, without risking ignition in the external environment.

By meeting the rigorous requirements for Class I, Division 1 environments, the EX72N assures safe, effective performance at less hazardous Division 2 and Class II locations.

Rated NEMA 4X for both indoor and outdoor use, the EX72N carries a T6 temperature code, the lowest and safest rating. When combined with the optional EX72LED infra-red illuminator, the EX72N provides exceptional 24/7 surveillance.

The EX72N is easy to install into any 12 VDC or 24 VAC system, and is a safe and effective surveillance solution for hazardous locations.

Functions

Applications
• Petroleum processing facilities
• Chemical factories
• Agricultural processing plants
• Refineries
• Munitions storage
• Oil and gas plants
• Fuel storage sites
• Industrial plants
• Nuclear facilities
• Pharmaceutical plants
• Aircraft hangers

Performance Optics
• Performance CCD with mechanical filter technology
• High efficiency LED infrared array
• 12 m (40 ft) active-IR night vision
• Enables effective surveillance in low-light environments
• Sensor provides higher IR sensitivity, low smear, low streaking and excellent anti-blooming characteristics

Compact Ruggedized Construction
• Small, unobtrusive and discreet housing
• Certified CSA Type 4X design for indoor and outdoor performance
• High-strength reinforced aluminum construction strong enough to withstand an internal explosion.
• Threaded flame paths extinguish burning explosive gases, allowing them to exit the housing harmlessly, without risking ignition in the external environment

Installer-Friendly Features
• Varifocal lens 4 to 9 mm or 9 to 22 mm
• 12 VDC / 24 VAC operation
• Optional pan-tilt brackets
• Optional wall and pole adapter plates
