Bosch FPE-7039 Multiplex Expansion Module for FPD-7024 Fire Alarm Control Panel
SKU: BHFPE7039
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
Q&A
About Bosch FPE-7039

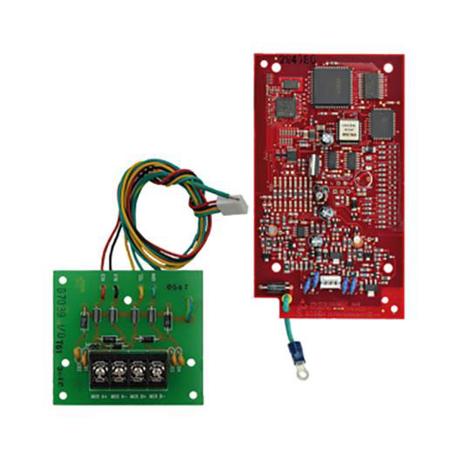

The FPE-7039 MUX expansion module is designed to enhance the conventional features of the FPD-7024, D7024 or DS9400 FACPs. The module connects directly to the FACP and results in a total of up to 255 addressable points. The module also increases the number of relay outputs (to 58 on the D7024 control panels and 59 on FPD 7024 control panels). It adds an additional 400 events to the history buffer for a total of 499 non volatile events. It also allows for up to 100system users (an addition of 84 PINs from the base system). The module can be programmed remotely from a PC using the RPS Remote programming software.
Bosch FPE-7039 Features
- Provides two Class B multiplex buses (supports addresses 9 to 128, 129 to 255)
- Provides one Class A multiplex bus (supports addresses 9 to 128)
- Allows system to support conventional and addressable devices at the same time
- Scales from a conventional to an addressable system without changing the control panel
- Increases event history buffer to 499 events
