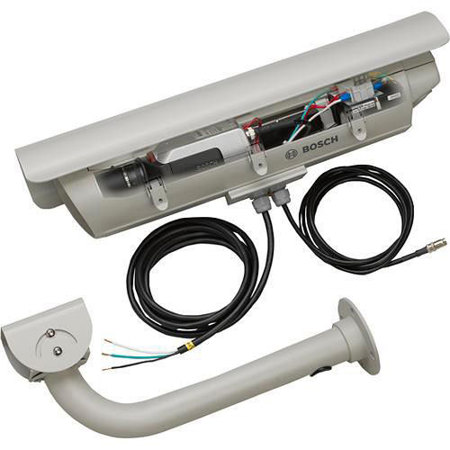

Bosch KBE-455V55-20 540 TVL Color Dinion Camera with 5-50mm Lens
See all Bosch items

Bosch KBE-455V55-20 Prepackaged 540 TVL Color Dinion Camera with 5-50mm Lens, Outdoor Housing and Bracket

SKU: BHKBE455V552

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Bosch KBE-455V55-20 Specifications

Camera

Camera

Jump to...

  • Signal

    Analog

  • Image Sensor

    1/3" Color IT CCD

  • Image Pixels Total

    768 x 492

  • Horizontal Resolution

    540TVL

  • Lens

    5-50mm Varifocal Lens

  • Minimum Illumination

    Scene Illumination (100 IRE): Color: 5.2 lux (0.483 fc), Night Sense: 2.1 lux (0.195 fc)
    Scene Illumination (50 IRE): Color: 1.3 lux (0.121 fc), Night Sense: 0.52 lux (0.048 fc)

  • Video

    Prewired 1.5 m (5') coax with female BNC connector

  • Power

    1 mm (18 AWG), 3 conductor, 1m (5') wiring harness with flying leads (Brown/Blue-24 V, Green-Ground)

  • Power Requirements

    21 to 28 VAC, 60 Hz, 45 W

Housing

Jump to...

  • Construction

    Aluminum housing casing, neoprene gaskets, UV-resistant polymer end caps, and all stainless steel hardware

  • Finish

    Gray

  • Window

    0.12" (3mm) Thick UV-stabilized polycarbonate

  • Mounting

    Four (4), 5/16" (8mm) diameter fasteners (not included) are required for mounting

Lens

Jump to...

  • Image Format

    1/3" (IR)

  • Focal Length

    5-50mm Varifocal Lens

  • Iris Range

    f/1.7-360

  • Focus Range

    3.3' (1.01m)

  • Back Focal Distance

    0.3" (0.76cm)

  • Lens Mount

    CS

  • Angle of View

    Wide: 50 x 37.4 deg.
    Tele: 5.5 x 4.1 deg.

  • Iris Control

    4-pin, DC control

  • Focus/Zoom

    Manual

Mount

Jump to...

  • Type

    Feed-through Wall Mount

  • Maximum Load

    20 lbs (9.07kg)

  • Size

    12" (30.48cm)

  • Mounting Head

    Adjustable 360 deg. pan, 180 deg. tilt

  • Finish

    Light gray

Environmental

Jump to...

  • Operating Temperature

    -40 to 122 deg. F (-40 to 50 deg. C)

  • Storage Temperature

    -13 to 158 deg. F (-25 to 70 deg. C)

  • Operating Humidity

    5% to 93% non-condensing

  • Enclosure Protection

    IP66, NEMA 4X

General

Jump to...

  • Dimensions (HxWxL)

    2.3 x 2.6 x 4.8" (5.84 x 6.60 x 12.19cm)

  • Weight

    Housing: 9.04 lbs (4.10kg)
    Mount: 0.9 lbs (0.41kg)

Other

Jump to...

  • UPC Code

    800549671019

About Bosch KBE-455V55-20

The KBE Series Prepackaged Cameras are complete surveillance systems that are quick and easy to install thanks to their plug-and-play design. This system includes a factory-installed camera (from Bosch's signature line of Dinion model), a varifocal lens (with adjusted back-focus), a coax cable (for analog cameras) or Ethernet cable (for IP cameras) and a power cable (1.5 m or 5 ft) pre-wired into the housing. Outdoor housings include IP66 rating.

Superior image quality
The KBE Series cameras deliver unsurpassed picture performance under even the most difficult light and scene conditions.

Ease of installation and servicing
Each analog camera is equipped with Bosch's Bilinx bidirectional communication for remote programming. Bilinx uses standard video cable to transmit alarm and status messages, providing superior performance and simplified installation. Everything about these Prepackaged Cameras, from the installer-friendly design to the wide range of options, makes them an ideal solution for every surveillance application.

Bosch KBE-455V55-20 Features

  • Camera and lens pre-wired into a Bosch housing that includes a feed-through mount and 1.5 m (5') of cabling (plug-and-play design)
  • ONVIF conformant

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Bosch KBE-455V55-20 Prepackaged 540 TVL Color Dinion Camera
  • 5-50mm Varifocal Lens
  • Outdoor Housing
  • Sunshield
  • Heater/Blower
  • Wall Mount Bracket
  • 5' BNC Video Cable
  • 5' Power Cable
  • Bosch 3 Year Warranty
