Bosch KBN-455V28-20 540 TVL Color Dinion Camera with 2.8-10mm Lens
See all Bosch items

Bosch KBN-455V28-20 Prepackaged 540 TVL Color Dinion Camera with 2.8-10mm Lens, Indoor Housing and Bracket

SKU: BHKBN455V282

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Bosch KBN-455V28-20 Specifications

  • Signal System

    NTSC

  • Image Sensor

    1/3" Color IT CCD

  • Number of Pixels

    768 x 492

  • Resolution

    540 TVL

  • Lens

    2.8-10mm Varifocal lens

  • Iris Operation

    Auto DC

  • Minimum Illumination

    Full Video: 2.6 Lux
    50 IRE: 0.65 Lux (0.26 lx Night Sense)
    Minimum Lux: 0.24 Lux (0.10 lx Night Sense)

  • IR Illumination

    No

  • Signal-to-Noise Ratio

    50dB

  • Controls

    Night Sense
    White Balance (auto)
    Electronic Shutter (1/60-1/600,000 sec)
    AGC (21dB)

  • Microphone

    No

  • Weather Resistance

    IP66 (housing)

  • Video Output

    Prewired 1.5m (5') coax with female BNC connector

  • Power

    1 mm (18 AWG), 3 conductor, 1m (5') wiring harness with flying leads (Brown/Blue-24 V, Green-Ground)

  • Sync System

    Line-lock, crystal-lock

  • Power Requirements

    12 to 28 VAC, 60Hz

  • Power Consumption

    4W

  • Construction

    Aluminum housing casing, neoprene gaskets, polymer end caps, and all stainless steel hardware

  • Finish

    Gray

  • Window

    3mm (0.12") Thick UV-stabilized polycarbonate

  • Mounting

    4x Four, 8 mm (5/16") diameter fasteners (not included) are required for mounting

  • Feed-through Mount Max Load

    20 lbs (9.07kg)

  • Feed-through Mount Size

    12" (30.48cm)

  • Enclosure Protection

    IP66, NEMA-4X

  • Certifications and Approvals

    Emission: EN55022 class B, FCC part 15 class B, EN6100-3, EN50121-4
    Immunity: EN50130-4 (CE), EN50121-4 (CE)
    Vibration: Camera with 500 gr (1.1 lbs) lens according to IEC60068-2-6

  • Safety

    LTC0498/11: UL1950-1, CSA 22.2 No. 950-1, EN60950-1 (CE), UL60950, CAN/CSA No. 60950
    LTC0498/51: UL1950-1, CSA 22.2 No. 950-1, EN60950-1 (CE), EN61000-3-2 2000 +A2:2005, EN61000-3-3 1995 +A1:2001 +A2:2005
    LTC0498/21 and LTC0498/61: UL1950-1, CSA 22.2 No. 950-1, EN60950-1 (CE), UL60950, CAN/CSA No. 60950

  • Dimensions (WxHxD)

    Housing: 6.7 x 5 x 18.9" (17.02 x 12.70 x 48.01cm)

  • Weight

    Housing: 6.28 lbs (2.85kg)
    Feed-through Mount: 0.9 lbs (0.41kg)

  • UPC Code

    800549140676

About Bosch KBN-455V28-20

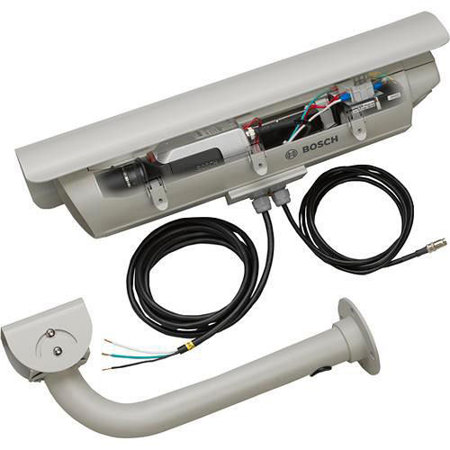

The KBN Series Prepackaged Cameras are complete surveillance systems that include a camera and lens installed and pre-wired into a Bosch housing which includes a feed-through wall-mount. The Dinion Series cameras deliver unsurpassed pictures under even the most difficult light and scene conditions. This camera is equipped with Bosch's innovative Bilinx bidirectional communication for remote programming. Bilinx uses standard video cable to transmit alarm and status messages, providing superior performance and simplified installation.

The true advantage of the Bosch prepackaged cameras lie with the plug-and-play design. Installation is quick and easy, since these units include a factory-installed camera and lens with adjusted back-focus - all of which are pre-wired through the housing base. Coax and power cable (1 1/2 m or 5') are fed through the included mount to the connection point. Everything about the KBN Series Prepackaged Cameras, from the installer-friendly design, coupled with the Dinion series Cameras and a wide range of options make an ideal solution for every surveillance requirement.

Bosch KBN-455V28-20 Features

  • General purpose and high performance camera
  • Bilinx bi-directional communication
  • Indoor version
  • Camera and lens are pre-wired into a Bosch housing
  • Plug and Play design includes feed through mount and 1.5m (5') of cabling

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Bosch LTC 0455 540 TVL Color Dinion Camera
  • 2.8-10mm Varifocal Lens
  • Indoor Housing
  • Wall Mount Bracket
  • 5' BNC Video Cable
  • 5' Power Cable
  • Bosch 3 Year Warranty
