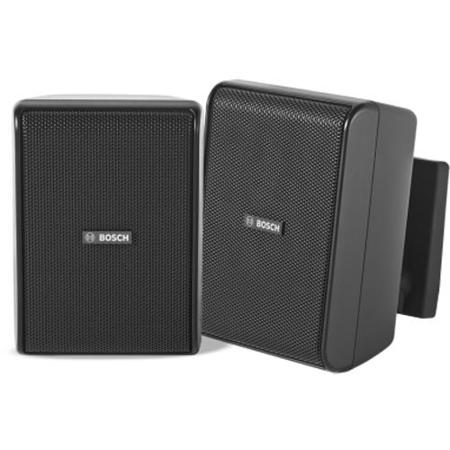

Bosch LB20-PC40-4D 4" 2-Way Quick Install Cabinet Speaker, 8 Ohms, 160W Peak, IP54, Black, Pair

SKU: BHLB20PC404D MFR: F.01U.331.728
Earn VIP Reward Points

Key Features

  • Experience superior audio with these Bosch speakers, perfect for commercial spaces.
  • Enjoy wide sound dispersion with 110-degree coverage, ideal for background music.
  • These durable speakers boast an IP54 rating, ensuring longevity in various environments.
  • Get peak performance with 160W power handling for clear, impactful sound projection.
  • Achieve quick install with included mounting bracket and Euroblock connector.
  • These 4" speakers deliver exceptional sound quality at an affordable price point.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$39.99

2 Year

$69.99

3 Year

$79.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Bosch LB20-PC40-4D Specifications

  • Frequency Response (-3 dB)

    100 Hz - 20 kHz

  • Frequency Response (-10 dB)

    75 Hz - 20 kHz

  • Sensitivity

    87 dB

  • Max SPL (calculated)

    103 dB (109 dB Peak)

  • Coverage Angle

    Horizontal 110 deg. , Vertical 110 deg.

  • Power Handling

    40W (160W Peak) Continuous Pink Noise (100 hours)

  • Low Z

    Yes

  • Nominal Impedance

    8Ohms

  • Minimum Impedance

    6Ohms

  • Recommended High-Pass

    70 Hz (24 dB/octave)

  • Input Transformer (70V/100V)

    No

  • LF Transducer

    4" (102mm)

  • HF Transducer

    0.75" (20mm)

  • Connectors

    Captive screws on wall bracket
    Removable locking 4-pin connector (Euroblock) - (2) for connection to additional speakers in a distributed line
    Max. wire size 12AWG (2.5mm)

  • Environmental

    IP54 (per IEC-60529)

  • Packaged Quantity

    2

  • Dimensions (HxWxD)

    193 x 140 x 120mm (7.60 x 5.51 x 4.72")

  • Weight

    1.5kg (3.31 lbs)

  • UPC Code

    800549841429

About Bosch LB20-PC40-4D

Where superior sound quality meets robust durability, the LB20-PC40-4D 4" 2-Way Quick Install Cabinet Speaker from Bosch stands out. This high-performance, full-range surface mount speaker delivers exceptional, wide, and uniform coverage, making it an ideal choice for both background and foreground music, paging, and sound reinforcement.

Designed for a wide array of indoor and outdoor applications, this speaker is perfect for environments ranging from restaurants, bars, and retail spaces to fitness clubs, hospitality venues, theme parks, and leisure spots. Its stylish, modern design complements any decor, while its sturdy weather resistance ensures longevity, even in challenging outdoor conditions.

Ease of installation is a key feature of the LB20-PC40-4D. It comes with a unique, innovative mounting system from Bosch, enabling quick, simple, and reliable installation. This flexible system allows for 90 degrees of horizontal rotation and 45 degrees of vertical rotation, facilitating easy installation on walls and ceilings. The mounting system arrives fully assembled, ready to simplify your installation process.

Engineered to resist outdoor environments, the LB20-PC40-4D doesn't compromise on indoor performance. Its IP54 rating signifies protection against dust and water splashes, while the cabinet and grille showcase exceptional resistance against sun, salt, and moisture.

Available in both black and white, this speaker can be easily painted to match your decor. Transformer versions are also available for constant voltage systems. The LB20-PC40-4D is part of the comprehensive LB20 surface mount speakers range, designed to work in harmony as a complete system in various surface mount constructions, and can be used in combination with other LB20 ceiling and in-wall speakers.

Bosch LB20-PC40-4D Features

  • Innovative mount system is included for quick, simple, and reliable installations
  • Carefully engineered for outdoor environments (IP54), without compromising performance
  • Long throw 4" (102mm) woofer housed in a fire rated ABS plastic enclosure for extended LF performance down to 75Hz
  • 40W power handling provides for 103 dB maximum SPL (109 dB peak)

Warranty Information

This product has a limited warranty of 36 months.

Key Features

  • Experience superior audio with these Bosch speakers, perfect for commercial spaces.
  • Enjoy wide sound dispersion with 110-degree coverage, ideal for background music.
  • These durable speakers boast an IP54 rating, ensuring longevity in various environments.
  • Get peak performance with 160W power handling for clear, impactful sound projection.
  • Achieve quick install with included mounting bracket and Euroblock connector.
  • These 4" speakers deliver exceptional sound quality at an affordable price point.

What's in the box:

  • Bosch 2x LB20-PC40-4D 4 " 2-Way Quick Install Cabinet Speaker
  • Mounting Bracket
  • 4mm Allen Wrench
  • Removable Locking 4-Pin Connector (Euroblock)
  • Bosch 3 Year Warranty
