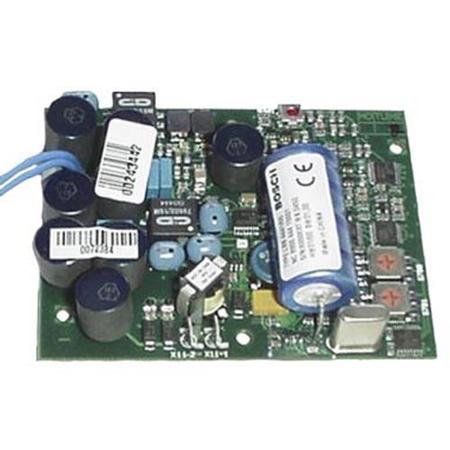

Bosch Praesideo LBB4441/00 Loudspeaker Supervision Board

The board monitors the integrity of a loudspeaker. It works together with the LBB 4440/00 Supervision Control Board. The speaker status is communicated to the LBB 4440/00 via the existing loudspeaker cable. The speaker status is communicated to the LBB 4440/00 via the existing loudspeaker cable. The LBB 4441/00 is mounted inside the loudspeaker casing and communicates the status of the loudspeaker to the LBB 4440/00 Supervision Control Board via the existing loudspeaker cable. The board detects and reports loudspeaker faults within 300 s, line faults within 100 s.

Interconnections
• Two 30 cm flying leads
• Two faston connectors

The board must be connected after the ceramic terminal block with the thermal fuse. In case of a fire, the thermal fuse will blow and disconnect the board from the loudspeaker line. The trip point of the thermal fuse that is connected to the ceramic block is lower than the melting point of the solder on the board to prevent short-circuits in the supervision board and the loudspeaker line. When the loudspeaker does not contain a ceramic terminal block with a thermal fuse, use an LBC 1256/00 EVAC Connection Adapter.
