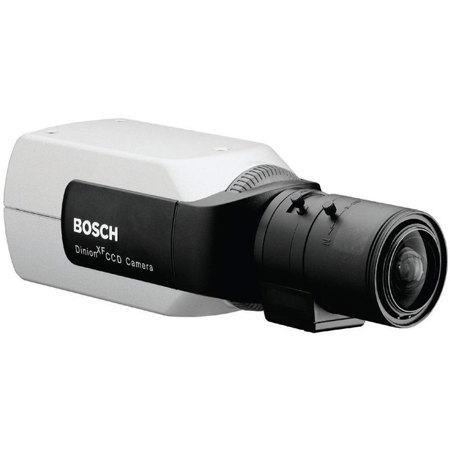

Bosch LTC 0485-28 540 TVL Indoor DinionXF Color Camera with 2.8-10mm Lens
See all Bosch items

Bosch LTC 0485-28 540 TVL Indoor DinionXF Color Camera with 2.8-10mm Lens and Silver Mount, 24VAC, 60Hz

SKU: BHLTC048528W
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Bosch LTC 0485-28W Specifications

  • Application

    Security Surveillance

  • Image Sensor

    1/3" Color CCD

  • Signal System

    NTSC (EIA)

  • Lens: Focal Length

    2.8-10mm Vari-focal

  • Lens: Iris Control Range

    F1.4 - 360

  • Lens: Iris Control

    DC-iris

  • Lens: Mount

    C/CS Mount

  • Number of Pixels

    768 x 492

  • Horizontal Resolution

    540 TVLines

  • Analog Color, XF (Night Sense)

    Color
    Scene Illumination (50 IRE): 0.80 lux (0.07 fc)
    Scene Illumination (Full Video): 3.26 lux (0.30 fc)

    Night Sense 0.32 lux
    Scene Illumination (50 IRE): (0.03 fc)

    SensUp
    Scene Illumination (Full Video): 0.036 lux (0.003 fc)

    Night Sense + SensUp
    Scene Illumination (50 IRE): 0.018 lux (0.002 fc)

  • Controls

    Auto Gain
    Electronic Shutter
    Dynamic Noise Reduction
    Backlight Compensation
    Contour
    Range
    Auto Black
    Sensitivity Up

  • Iris Operation

    Auto, DC
    Camera Iris Support: Auto DC/Video, Manual

  • Alarm I/O

    Alarm Output: VMD or Bilinx
    Alarm Input (TTL): Profile switching, +5 V nominal, +40 VDC max
    Alarm Output Relay: max. 30 VAC or +40 VDC, max. 0,5 A continuous, 10 VA

  • Signal-to-Noise Ratio

    50 dB

  • Output

    Composite video 1.0 Vpp, 75 Ohm

  • Communication Control

    Bilinx bi-directional coaxial communication OSD with softkey operation

  • Signal Connectors

    1x BNC

  • Sync

    Internal, line lock, HV-lock and genlock (Burst lock) selectable

  • Power Requirements

    12-28 VAC or 11-39 VDC

  • Power Consumption

    4W, excluding lens

  • Operating Temperature

    -4 to 122 deg. F (-20 to 50 deg. C)

  • Storage Temperature

    -13 to 158 deg. F (-25 to 70 deg. C)

  • Operating Humidity

    5 - 93% relative (non-condensing)

  • Certification

    UL, FCC

  • Electromagnetic Compatibility

    Emission: EN55022 Class B, FCC Part 15 Class B
    Immunity: EN50130-4
    Safety: EN60065

  • Dimensions (WxHxD)

    2.6 x 2.2 x 4.8" (6.60 x 5.59 x 12.19cm)

  • Weight

    0.99 lbs (0.45kg)

  • UPC Code

    800549074513

About Bosch LTC 0485-28W

The LTC Series Indoor Camera kits provide the most economical package available for indoor applications. These kits reduce the required installation time to the absolute minimum. Each kit includes a camera with a preassembled and an adjustable varifocal lens. The kits also include an wall mount bracket. Users only need to connect the power supply and video cables to obtain superior picture performance in virtually all indoor applications.

Superior image quality
The kit is based on the Dinion Series of analog cameras, which cover standard and high resolution as well as color and day/night versions.

Ease of installation and servicing
Each analog camera is equipped with Bosch's Bilinx bidirectional communication for remote programming. Bilinx uses standard video cable to transmit alarm and status messages, providing superior performance and simplified installation. The camera kits can be used in a wide variety of places such as retail stores, health care facilities, financial institutions, educational environments and industrial areas.

Bosch LTC 0485-28W Features

  • Pre-assembled units with camera and varifocal lens included
  • Reduces installation time to the absolute minimum
  • Varifocal lenses for on-site adjustment of field-of-view
  • Bilinx bi-directional communication
  • ONVIF conformant

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Bosch LTC 0485-28 540 TVL Indoor DinionXF Color Camera with 2.8-10mm Varifocal Lens
  • Silver Mount
  • Spare Male 4-Pin Lens Connector
  • Bosch 3 Year Warranty
