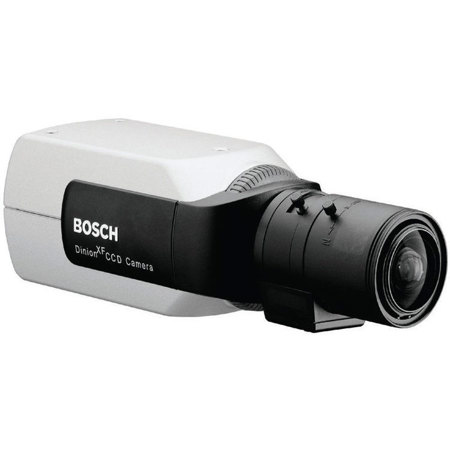

Bosch LTC 0485/55W DinionXF Color Camera with 5-50mm Varifocal Lens & Wall Mount
See all Bosch items

Bosch LTC 0485/55W DinionXF Color Camera with 5-50mm Varifocal Lens & Wall Mount Bracket, 24 VAC, 60 HZ

SKU: BHLTC048555W

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Bosch LTC 0485 Specifications

  • Application

    Security Surveillance

  • Image Sensor

    1/3" Color CCD

  • Signal System

    NTSC (EIA)

  • Lens

    Focal Length: 5-50mm Vari-focal
    Aperture: F1.4-185
    Mount: CS
    Camera Lens Mount: C/CS

  • Number of Pixels

    768 x 492

  • Horizontal Resolution

    540 Lines

  • Minimum Illumination

    2.4 Lux

  • Controls

    Auto Gain
    Electronic Shutter
    Dynamic Noise Reduction
    Backlight Compensation
    Contour
    Range
    Auto Black
    Sensitivity Up

  • Iris Operation

    Auto, DC
    Camera Iris Support: Auto DC/Video, Manual

  • Alarm I/O

    Alarm Output: VMD or Bilinx
    Alarm Input (TTL): Profile switching, +5 V nominal, +40 VDC max.
    Alarm Output Relay: max. 30 VAC or +40 VDC, max. 0,5 A continuous, 10 VA

  • Signal-to-Noise Ratio

    50 dB

  • Signal Connectors

    BNC x1

  • Sync

    Internal, line lock, HV-lock and genlock (Burst lock) selectable

  • Power Requirements

    12-28 VAC or 11-39 VDC

  • Power Consumption

    4W

  • Operating Temperature

    -4 - 122 Degree F (-20 - +50 Degree C)

  • Dimensions (W x H x D)

    2.6 x 2.2 x 4.8" (66 x 58 x 122mm)

  • Weight

    0.99 lb (0.45kg)

About Bosch LTC 0485

The LTC Series Indoor Camera kits provide the most economical package available for indoor applications. These units reduce the required installation time to the absolute minimum. Only the power supply and video cables need to be connected to obtain superior picture performance in virtually all indoor applications. Package offerings include a camera with a lens and an optional wall bracket.

The Indoor Camera kits are based on the Dinion Series of analog and IP cameras. The Dinion camera range covers standard and high resolution as well as monochrome and color versions. In addition, these camera kits include a preassembled varifocal lens which allows the field-of-view to be adjusted on site, allowing optimum area coverage.

Analog camera models are equipped with Bosch's innovative Bilinx bi-directional communication for remote programming. Bilinx uses standard video cable to transmit alarm and status messages, providing superior performance and simplified installation.

The camera kit can be used in a large variety of places such as retail stores, health care facilities, financial institutions, educational environments, and industrial areas, in fact any general indoor use.

Bosch LTC 0485 Features

  • Pre-assembled units with camera, varifocal lens and optional wall bracket included
  • Reduces installation time to the absolute minimum
  • Range of color, monochrome, and day/night units
  • Choice of analog or network cameras
  • Varifocal lenses for on-site adjustment of field-of-view
  • Bilinx bi-directional communication

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Pre-assembled units with camera, varifocal lens and optional wall bracket included
  • Reduces installation time to the absolute minimum
  • Range of color, monochrome, and day/night units
  • Choice of analog or network cameras
  • Varifocal lenses for on-site adjustment of field-of-view
  • Bilinx bi-directional communication

What's in the box:

  • LTC 0485/55W DinionXF Color Camera with 5-50mm Varifocal Lens and Wall Mount
  • Spare Male 4-Pin Lens Connector
  • Bosch 3 Year Limited Warranty
