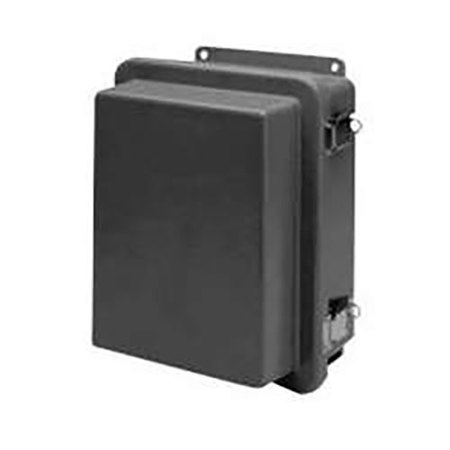

Bosch LTC 8560/60 Single-Channel On-Site Receiver/Driver, 120 VAC Pan/Tilt Voltage, 120 VAC Power Supply, No Auxiliary

The LTC 8560 Series, the LTC 8562 Series, and the LTC 8563/20 on-site receiver/drivers are control data decoder units and motor drivers for pan/tilt units and zoom lenses. These receiver/drivers are used in conjunction with Allegiant Series or microprocessor based switcher/controller systems.

Functions
The receiver/driver decodes Allegiant Bi-Phase control data from the switcher/controller system through the LTC 8568 Series Signal Distribution Unit into specific control codes. In addition, the receiver/driver accepts RS 232 control code data generated by the LTC 8780 Data Converter Unit. These receiver/drivers are available in a variety of input and output voltage configurations. All units are 50/60 Hz line frequency compatible. All units have low voltage DC lens drivers (6 V or 12 V, selectable) for focus, zoom, and iris with adjustable speed. Auxiliary supply terminals provide power which is fuseprotected at the voltage of the pan/tilt output. Additional features include a full operating temperature range, an integral local test function, a unique dither feature, polarity reversible lens drive, convenient thumbwheel selectable camera addressing, and a NEMA-4X, IP66 rated environmental enclosure with lockable latches.
