Bosch LTC 8782/60-13 Code Translator - Biphase to Panasonic RS-485 Translator, 120 VAC

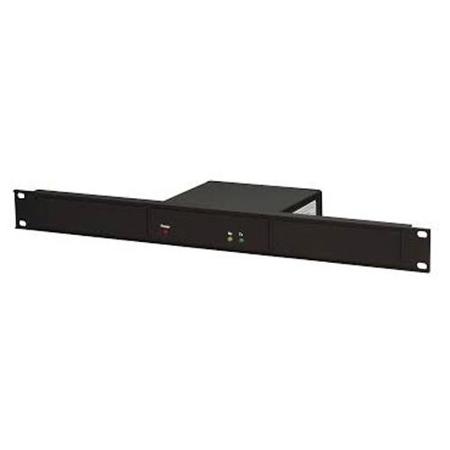

The LTC 8782 Series Code Translators are accessory units that convert Biphase code to other manufacturers' control codes, or converts other manufacturers' codes to Biphase. Many of the most popular protocol codes are supported, including Pelco, American Dynamics, and Vicon. Fixed and variable speed codes are supported where applicable. The LTC 8782 Series Code Translators have four independent outputs. Removable screw terminal blocks are used for input and output connections. Front panel LEDs indicate the status of power, data receive, and data transmit. The translator comes supplied in an EIA 48 cm (19 in.) rack-mount adapter that can hold up to three units.

The LTC 8782/x0-13 is a Bi-Phase to Panasonic code translator to permit control of Panasonic receivers from Bi-Phase controllers. It receives Bi-Phase code and transmits the appropriate commands in Panasonic RS-485 protocol. The translator can be programmed by internal switches for the following:
• Offset the Bi-Phase addresses to one of 32 Panasonic address blocks that support up to 96 cameras each. In large systems, 32 translators can be used to support up to 3,072 cameras.
• Support output baud rates of 2400, 4800, 9600, and 19.2K.
• Support either variable or two fixed speed code.
