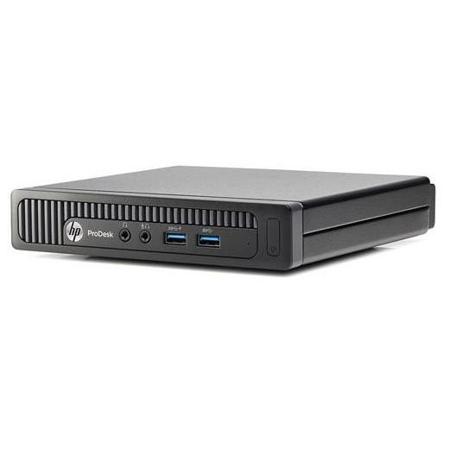

Bosch ProDesk 600 G1 Mini Desktop PC Decoder with Monitor Wall, US Edition

This HP ProDesk 600 G1 mini business PC with its latest 4th generation Intel Core processing and I/O power is coming in a smallest form factor with business class performance.Together with the Monitor Wall appliance from Bosch pre-installed it is designed for advanced visualization of multiple video surveillance live cameras.

With its space saving design it can be set up vertically or horizontally or easily be attached to optional peripheral devices such as monitors using the integrated VESA mount (support for VESA 100 mm mounting system on bottom of PC chassis). These flexible deployment options are supported by an integrated wireless antenna. ProDesk 600 G1 is easily serviced: a single thumb screw provides fast access to clearly identifiable and serviceable components.

Equipped with the latest Intel Core i5-4590T with integrated Intel HD graphics 4600 (2 GHz, 6 MB cache, 4 cores) and 4 GB DDR3-1600 memory it provides the speed and performance to also display highest UHD resolution live cameras. Designed for 24 x 7 business operations it keeps downtimes low and productivity high.

System Overview
ProDesk 600 G1 decoder is a mini business PC solution based on the Intel Q85 Express chipset supporting Intel 4th generation Core processors, featuring integrated Intel HD Graphics and Intel Standard Manageability Technology. Designed as mini desktop form factor it nevertheless provides performance scalability and expandability:

• Processor: Intel Core i5-4590T processor up to 3.0 GHz max. turbo frequency (2.0 GHz base frequency), 6 MB cache, 4 cores, 4 threads Intel HD Graphics 4600; supports DDR3 memory up to 1600 MT/s data rate

• Expansion slots: 2x M.2 (1x M.2 2230 for optional wireless NIC; 1x M.2 2280 for storage drives)

• Port and connectors: 4x USB 3.0; 2x USB 2.0; 1x RJ-45; 1x audio line out; 1x headphone; 1x microphone; 1x VGA; 2x DisplayPort

Intel Microarchitecture offers the latest in processor innovation, including:

• PC chassis and all internal components and modules are manufactured with low halogen content

• HP developed and engineered UEFI BIOS supporting ecurity, manageability and software image stability

• Intel Ethernet Connection I217L GbE LOM integrated network connection

• DDR3 Synchronous Dynamic Random Access Memory (SDRAM)

• Multi-independent monitor support via VGA and dual digital DisplayPort video interfaces with multi-stream

• Standard efficiency energy saving power supply options ENERGY STAR qualified

Functions
The ProDesk 600 G1 decoder system comes with the Monitor Wall appliance from Bosch pre-installed and pre-licensed. Monitor Wall is the easiest way to view many cameras on state-of-the-art monitor walls. So this ProDesk 600 G1 version is designed as a multichannel decoder with single or dual-screen support. Using the integrated VESA mount the desktop mini can be attached to optional peripheral devices such as monitors.

It can flawlessly decode one 4K stream, or five 1080p30 streams, or four H.264 720p60 streams, or six H.264 720p30 streams. Alternatively, it can simultaneously decode twelve H.264 SD streams from fast-moving AUTODOME cameras with the highest clarity.

Graphics Card
ProDesk 600 G1 mini business PC comes with integrated Intel HD graphics supporting 1x VGA and 2x Display Port monitor connections. An additional external graphics card is not available.
