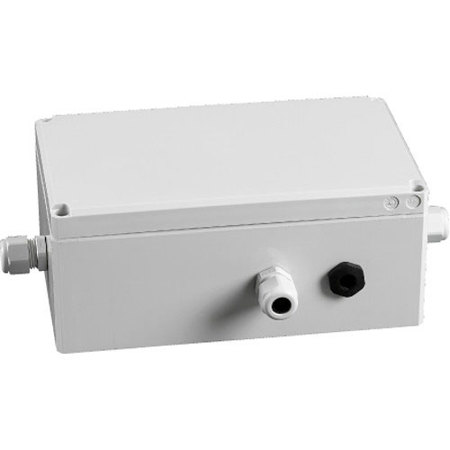

Bosch MIC7000 Alarm/Washer Interface Unit, 24VAC
See all Bosch items

Bosch MIC7000 Alarm/Washer Interface Unit, 24VAC

SKU: BHMICALMWAS2

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Bosch MIC7000 Alarm/Washer Unit Specifications

Certifications and approvals

Certifications and approvals

Jump to...

  • Electromagnetic Compatibility (EMC)

    Complies with FCC Part 15, ICES-003, and CE regulations, including latest versions of
    EN 50130-4,
    EN 5022:2006 inc. AL:2007,
    EN 61000-3-3,
    EN 61000-6-1,
    EN 61000-6-2, and
    EN 50121-4 (Railway applications)

  • Product Safety

    Complies with UL, CE, CSA, EN, and IEC
    Standards 60950-1 & 22

    IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT),
    IEC 61000-4-5 (surge)

  • Ingress Protection Rating/ Standard

    IP67
    NEMA 4, 4X, 6, 12, 13

Electrical

Jump to...

  • Input Voltage

    24 VAC/VDC, 50/60 Hz

  • Power Consumption

    5 A maximum

  • Current Consumption

    1 A

Surge Suppression

Jump to...

  • Protection on RS-485

    Peak current 10 A, peak power 300 W (8/20 micro)

  • Protection on Alarm Inputs

    Peak current 17 A, peak power 300 W (8/20 micro)

  • Protection on Alarm Outputs

    Peak current 2 A, peak power 300 W (8/20 micro)

  • Protection on Relay Outputs

    Peak current 7.3 A, peak power 600 W (10/1000 micro)

  • Protection on Power Input

    Peak current 7.3 A, peak power 600 W (10/1000 micro) (Camera)

Miscellaneous

Jump to...

  • LEDs

    Red LED (ON indicates power on)
    Green LEDs (blinking indicates activation for each alarm input)
    Yellow LED (blinking indicates active communication between the MIC-ALMWAS-24 and the MIC7000 camera)

  • Communications Protocol

    Proprietary half-duplex RS-485, 57600 baud

User Connections

Jump to...

  • Power

    24 VAC +/- 10%, 50/60 Hz

  • Alarm Input

    4 normal dry contacts (selectable N.O./N.C.)
    2 monitored tamper alarm inputs,
    2.2K ohm end-of-line termination

  • Alarm Output

    3 open collector outputs, 32 VDC, 150 mA

  • Relay Output

    1 dry contact relay, 250 V, 5 A (for washer pump)

  • Alarm/Data

    3-wire RS-485 (to external alarm/washer accessory unit) up to 100m

Environmental

Jump to...

  • Ingress Protection Rating/ Standard

    IP67
    NEMA 4, 4X, 6, 12, 13

  • Operating Temperature

    -40 Degree to +60 Degree C (-40 Degree to +140 Degree F)

  • Cold Start-up Temperature

    -40 Degree C (-40 Degree F) (Requires 60 minute warmup prior to operation)

  • Storage Temperature

    -40 Degree to +70 Degree C (-40 Degree to +158 Degree F)

  • Humidity

    0-100%

Construction

Jump to...

  • Construction Material

    Polycarbonate

  • Standard Color

    Grey (RAL 7035)

  • Standard Finish

    Sand finish

  • Dimensions (L x W x H)

    6.02 x 3.17 x 2.87" (153 x 79 x 73mm)

  • Weight

    1.3 lb (0.6kg)

Other

Jump to...

  • UPC Code

    800549730945

About Bosch MIC7000 Alarm/Washer Unit

The MIC Alarm/Washer Interface unit consists of a weatherproof enclosure that houses surge-protected interface connections for alarm inputs, alarm outputs, washer relay, power connection, and serial data link to MIC7000 cameras. The unit is equipped with removal screw terminal blocks to simplify attachment of electrical connections to external cabling. Board mounted LED indicators provide status and diagnostic feedback.

Bosch MIC7000 Alarm/Washer Unit Features

  • Provides alarm and washer interface connections for MIC7000 cameras
  • Impact-resistant polycarbonate enclosure rated to IP67 and NEMA 4X
  • Watertight cable glands included
  • Push button to activate/test connected washer pump

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Provides alarm and washer interface connections for MIC7000 cameras
  • Impact-resistant polycarbonate enclosure rated to IP67 and NEMA 4X
  • Watertight cable glands included
  • Push button to activate/test connected washer pump

What's in the box:

  • MIC7000 Alarm/Washer Interface Unit (24VAC)
  • 1x Enclosure with Three Watertight M16 Cable Glands and One M16 Blanking Plug Installed
  • 1x Watertight M16 Cable Gland (Uninstalled)
  • 4x Pozidriv Screws for Lid
  • 4x Screw Caps to Cover The Lid Screws
  • 1x Installation Manual
  • Bosch 3 Year Limited Warranty
