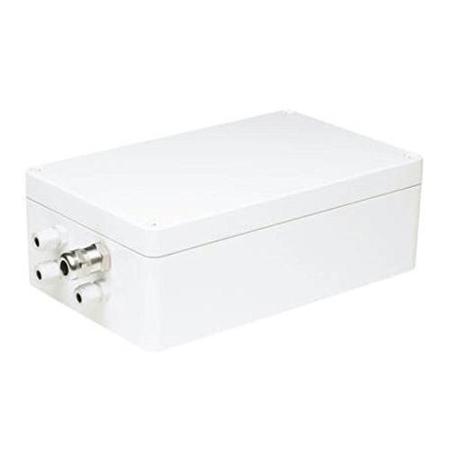

Bosch MIC Camera/IR Power Supply for MIC550 IR Camera, 24 VAC, 50/60 Hz
See all Bosch items

Bosch MIC Camera/IR Power Supply for MIC550 IR Camera, 24 VAC, 50/60 Hz

SKU: BHMICIR24PSU

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Bosch MIC Camera Power Supply Specifications

Certifications and Approvals

Certifications and Approvals

Jump to...

  • USA

    UL 60950-1, 2nd Edition:2007
    FCC CFR 47 FCC Part 15:2009 Class B

  • Electromagnetic Compatibility (EMC)

    Complies with FCC Part 15 and ICES-003 regulations

  • Product Safety

    Complies with UL (UL 2044), CSA Standards (CSA Standard C22.2 No. 1-98), and CE

  • Ingress Protection Rating

    IP65

Compatibility

Jump to...

  • Applicable Camera

    MIC550 IR Camera

Electrical

Jump to...

  • Voltage / Power

    Input , Output @ 50/60 Hz

  • Input

    24 VAC, 2.6 A

  • Output

    Camera: 18 VAC, 950 mA
    IR: 0 - 26 VDC, 1A

Environmental

Jump to...

  • Operating Temperature

    -40 Degree C to +60 Degree C (-40 Degree F to +140 Degree F)

  • Storage Temperature

    -40 Degree C to +65 Degree C (-40 Degree F to +149 Degree F)

Construction

Jump to...

  • Form Factor (four screw holes)

    110 x 240mm (4.3 x 9.4")

  • Material

    Powder-coated cast-aluminum, rated IP65

  • Color

    Pure White

  • Optional accessories

    MIC-ALM (8-input alarm card)
    MIC-WKT (washer pump kit)
    MIC-WKT-IR (washer pump kit for IR models)
    MIC-BP3 (Biphase card)
    MIC-BP4 (Biphase card)

  • Dimensions (H x W x D)

    Enclosure: 3.54 x 6.3 x 10.24" (90 x 160 x 260mm)
    With glands: 3.54 x 6.3 x 11.34" (90 x 160 x 288mm)

  • Weight

    8.27 lb (3.75kg)

About Bosch MIC Camera Power Supply

A full range of MIC Series power supply units (PSUs) from Bosch Security Systems provides all connections for power, telemetry and video for the MIC series range of PTZ cameras. These PSUs ensure that MIC cameras can be installed in a variety of locations, including low voltage and mobile applications. Each power supply has UL, CE, and FCC approval, is rated to IP65, supports 50/60 Hz, and comes in a selection of input voltages. The PSU housing also has slots for optional cards, such as the 8-channel alarm card including washer pump drive (MIC-ALM).

Bosch MIC Camera Power Supply Features

  • Provide all connections for power, telemetry and video for the MIC series of PTZ cameras
  • Weather-resistant, cast-aluminum IP65 enclosure with weather-proof, 1/2" NPT, M16, and M12 cable glands
  • Integrated header for addition of ancillary cards such as the MIC alarm card, washer pump drive card or bi-phase converter card
  • Ground isolation and termination to control video grounding and to prevent ground loops

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Provide all connections for power, telemetry and video for the MIC series of PTZ cameras
  • Ground isolation and termination to control video grounding and to prevent ground loops

What's in the box:

  • MIC Camera/IR Power Supply for MIC550 IR Camera (24 VAC-50/60 Hz)
  • Bosch 3 Year Limited Warranty
