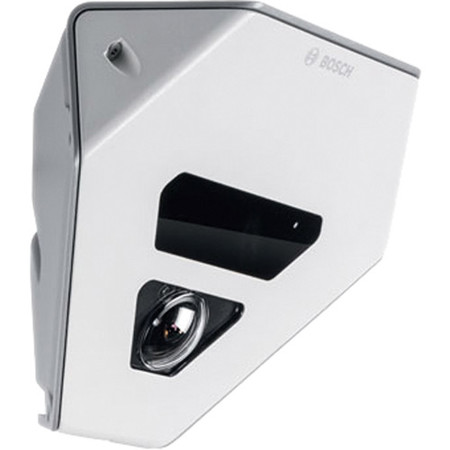

Bosch FLEXIDOME IP Corner 9000 1.5MP PoE Day/Night IR Vandal-Resistant Camera with 2mm Fixed Lens

The FLEXIDOME corner 9000 MP is a vandal-resistant, corner-mount camera featuring a no-grip, anchor-free design. The high resolution 1440 x 1080p images and the integrated infrared illumination allow 24/7 effective professional networked surveillance in high risk, vandal-prone applications under any ambient lighting conditions, even completely dark rooms.

System overview

Corner-mount, vandal-resistant design
The innovative design allows a perfectly flush fit into the corner of a room that protects against even the most brutal attempt to destroy, detach or disable the camera. The sharp 45 Degree angle hides all wiring and delivers complete coverage of a 4.5 x 4.5 m (15 x 15 ft) room, including below the camera itself. The anti-ligature design has no anchor points for maximum safety in environments with at-risk individuals.

Infrared illumination
The camera harnesses the power of infrared illumination to deliver outstanding images day or night. Infrared-emitting LEDs achieve covert, effective night vision for the most advanced level of night vision performance available today. With the intensityadjustable infrared LEDs, foreground hotspots and underexposed backgrounds are eliminated.

True day/night switching
The camera incorporates mechanical filter technology for vivid daytime color and exceptional night-time imaging under infrared illumination while maintaining sharp focus under all lighting conditions. The camera also features outstanding spectral response in the near infrared field for excellent active-infrared night vision.

Intelligent Dynamic Noise Reduction reduces bandwidth and storage requirements
The camera uses Intelligent Dynamic Noise Reduction which actively analyzes the contents of a scene and reduces noise artifacts accordingly. The low-noise image and the efficient H.264 compression technology provide clear images while reducing bandwidth and storage by up to 50% compared to other H.264 cameras. This results in reduced-bandwidth streams that still retain a high image quality and smooth motion. The camera provides the most usable image possible by cleverly optimizing the detail-to-bandwidth ratio.

Area-based encoding is another feature which reduces bandwidth. Compression parameters for up to eight user-definable regions can be set. This allows uninteresting regions to be highly compressed, leaving more bandwidth for important parts of the scene.

1440 x 1080p resolution with multiple streams
The camera has a 1440 x 1080p resolution at 30 images per second (ips). The innovative multistreaming feature delivers various H.264 streams together with an M-JPEG stream. These streams facilitate bandwidth-efficient viewing and recording as well as integration with third-party video management systems. Regions of interest and e-PTZ Two Regions of Interest (ROI) can be user defined.

The remote electronic pan, tilt and zoom (e-PTZ) controls allow you to select specific areas of the parent image. These regions produce separate streams for remote viewing and recording. These streams, together with the main stream, allow the operator to separately monitor the most interesting part of a scene while still retaining situational awareness.

Easy installation
No focus or pan/tilt adjustments are required as the camera, with its wide angle lens, provides complete coverage of a 4.5 x 4.5 m (15 x 15 ft) room. Power for the camera can be supplied via a Powerover-Ethernet (IEEE 802.3af) compliant network cable connection. With this configuration, only a single cable connection is required to view, power, and control the camera. Using PoE makes installation easier and more cost-effective, as cameras do not require a local power source.

The camera can also be supplied with power from +12 VDC or 24 VAC power supplies. To increase system reliability, the camera can be simultaneously connected to both PoE and +12 VDC/24 VAC supplies. Additionally, uninterruptible power supplies (UPS) can be used, which will allow continuous operation, even during a power failure. For trouble free network cabling, the cameras support Auto-MDIX.

Two-way audio and audio alarm
Two-way audio allows the operator to communicate via an external audio line input and output. Audio detection can be used to generate an alarm if needed. Tamper and motion detection A wide range of configuration options is available for alarms signaling camera tampering. A built-in algorithm for detecting movement in the video can also be used for alarm signaling.

Edge recording
The internal MicroSD card slot supports up to 2 TB (SDXC) of storage capacity. A microSD card can be used for local alarm recording. Pre-alarm recording in RAM reduces recording bandwidth on the network, or - if microSD card recording is used - extends the effective life of the storage medium.

Cloud-based facilities
The camera supports time-based or alarm-based JPEG posting to four different accounts. These accounts can address FTP servers or cloud-based storage facilities (for example, dropbox). Video clips or JPEG images can also be exported to these accounts. Alarms can be set up to trigger an e-mail or SMS notification so you are always aware of abnormal events.

Access Security
Password protection with three levels and 802.1x authentication is supported. To secure Web browser access, use HTTPS with a SSL certificate stored in the camera. The video and audio communication channels can be independently AES encrypted with 128-bit keys by installing the optional encryption site license.

Complete viewing software
There are many ways to access the camera's video features: using a web browser, with the supplied Bosch Video Client, or with the iPad App. The Bosch Video Client PC surveillance software offers a user-friendly interface to support easy installation and configuration, and is supplied completely free-ofcharge. It provides easy live viewing of multiple cameras, playback, forensic search and export.

Video security App
The Bosch Video Security iPad App has been developed to fully utilize our Dynamic Transcoding features and enable Anywhere access to HD surveillance images, even over low-bandwidth connections. The App, together with the separately available Bosch transcoder, is configured to give you complete control of your camera.

System integration
Bosch IP standard definition and high definition cameras, encoders and analytics work seamlessly with a wide range of security software and recording solutions from Bosch and other industry providers. Through ONVIF conformance, the open availability of Bosch video software development kits and a team dedicated to special integration and support projects, it is easy to manage Bosch video products within your system design.

Applications
• Waiting rooms
• Hospital recovery rooms
• Psychiatric care rooms
• Vandal-prone areas
