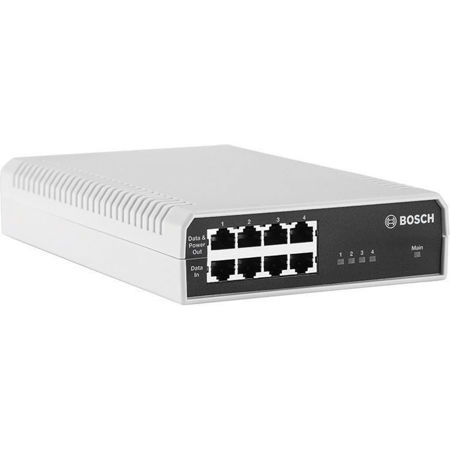

Bosch NPD-5004-POE Midspan PoE Injector, 4 Ports
See all Bosch items

Bosch NPD-5004-POE Midspan PoE Injector, 4 Ports

SKU: BHNPD5004POE

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Bosch NPD-5004-POE Specifications

Power

Power

Jump to...

  • Ports

    4

  • Input Voltage

    100 to 240 VAC; 50/60 Hz

  • Maximum Input Current

    1 A @ 110 VAC
    0.4 A @ 240 VAC

  • Output Voltage

    48 VDC nominal

  • Output Power

    Per Port: 15.4 W maximum

Input/Output Connectors

Jump to...

  • Input

    IEC 60320

  • Ethernet connection

    Shielded RJ45 connector; EIA 568A and 568B

  • Data

    10/100/1000 Mbps pass-through data rates

Environmental

Jump to...

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Storage Temperature

    -4 to 158 Degree F (-20 to 70 Degree C)

  • Operating Humidity

    Maximum 90% RH non-condensing

  • Storage Humidity

    Maximum 95% RH non-condensing

  • Thermal Rating

    51 BTU/hour

  • Standards

    FCC Part 15, class B
    EN 60950
    EN 55022 class B
    EN 55024
    IEEE 802.3af

  • Approvals

    UL, cUL, FCC, VCCI, GS mark

  • Regulatory Compliance

    CE, RoHS, WEEE

Mechanical

Jump to...

  • Dimensions

    5.8 x 1.7 x 8.8" (14.8 x 4.3 x 22.4cm)

  • Weight

    21.9 oz (620g)

Other

Jump to...

  • UPC Code

    800549777384

About Bosch NPD-5004-POE

The NPD-5004-POE four-port power injector can supply four individual PoE cameras with power. This power injector allows an existing Ethernet infrastructure to be enhanced for use with PoE cameras.

The injector converts the AC input power to a +48 VDC power supply which is then provided to the cameras via the Ethernet cable. They support up to 10/100/1000 Mbps pass-through data rates. Each injector provides up to 15.4 W per port. The PoE midspan injector unit can be easily mounted on a shelf, wall or ceiling.

Bosch NPD-5004-POE Features

  • Makes PoE cameras easy to install
  • Allows one-wire connection
  • Reduces power supply requirements
  • Compact and cost effective solution
  • Supplies up to 15.4 W per port

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Makes PoE cameras easy to install
  • Allows one-wire connection
  • Reduces power supply requirements
  • Compact and cost effective solution
  • Supplies up to 15.4 W per port

What's in the box:

  • NPD-5004-POE Midspan PoE Injector
  • Power Cord
