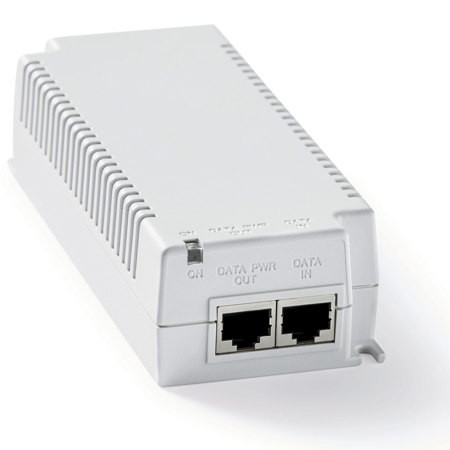

Bosch NPD-6001B Single-Port 60W High PoE Midspan with AC Input
See all Bosch items

Bosch NPD-6001B Single-Port 60W High PoE Midspan with AC Input

SKU: BHNPD6001B
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Bosch NPD-6001B Specifications

User Connections

User Connections

Jump to...

  • Connectors

    Shielded RJ-45 100 Base-TX Ethernet PoE++
    EIA 568A and 568B

Data

Jump to...

  • Data transmission

    Data provided over pairs 1/2 and 3/6 for 10/100
    Ethernet

Electrical

Jump to...

  • Input Voltage

    100 to 240 VAC, 50/60 Hz

  • Output Voltage

    54-57 VDC (nominal)

  • Input Current

    1.5 A

  • High Power Over Ethernet (High PoE)

    Output:
    Pin Assignment and Polarity:

    4 Pair power:
    Pairs 1/2 (-) and 3/6 (+)
    Pairs 7/8 (-) and 4/5 (+)

    User Port Power:
    60 W maximum

  • Surge protection

    Yes

Environmental

Jump to...

  • Operating Temperature

    At 60 W: +14 Degree F to +104 Degree F (-10 Degree C to +40 Degree C)
    At 30 W: +14 Degree F to +122 Degree F (-10 Degree C to +50 Degree C)

  • Storage Temperature

    -4 Degree F to +158 Degree F (-20 Degree C to +70 Degree C)

  • Operating Humidity

    Maximum 90% relative, non-condensing

  • Storage Humidity

    Maximum 95% relative, non-condensing

Miscellaneous

Jump to...

  • Number of Ports

    One (1)

  • Pass through data rates

    10/100/1000 Mbps

  • Maximum cable length recommended

    Not to exceed 333' (100m) between network source and terminal

  • System Indicators

    AC Power (yellow)
    Channel Power (green)

  • Electromagnetic Compatibility (EMC)

    Complies with FCC Part 15, ICES-003, and CE regulations, including EN 55032 Class B (emission), EN 55024 (Immunity), and VCCI

  • Product Safety

    Complies with UL/cUL, GS Mark per EN 60950-1

  • Regulatory Compliance

    IEEE 802.3af (PoE), IEEE 802.3at (PoE+, including 2-event), RoHS Compliant, WEEE Compliant, CE

  • Lightning protection

    Meets GR-1089-CORE lightning protection

  • Regulatory compliance/quality marks

    Europe: CE (Declaration of Conformity) NPD-6001B

  • Mounting

    To wall, shelf, bench or desktop

Physical

Jump to...

  • Dimensions (W x H x L)

    2.44 x 1.5 x 5.94" (62 x 38 x 151mm)

  • Weight

    11.9 oz (340g)

About Bosch NPD-6001B

60 W Midspan The 60 W midspan (NPD-6001B) enables remote High Power over Ethernet (High PoE) for various Bosch IP/HD PTZ cameras. Generating a maximum of 60 W, it complies to both the IEEE 802.3af and the IEEE 802.3at standards, while doubling the available power. Rated for indoor installation only, the midspan can be installed indoors and wired to a camera installed outdoors. The midspan provides surge protection, optimal for installation of outdoor powered devices.

The midspan has a single port and is designed to carry data and power over a standard CAT5e (or better) cable, delivered through all 4 pairs

Bosch NPD-6001B Features

  • Supports high-power PoE/PoH and complies to both the IEEE 802.3af and the IEEE 802.3at standards
  • Lightning protection
  • Detects and protects non-standard Ethernet terminals automatically
  • Mounts to a wall, shelf, bench or desktop

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Supports high-power PoE/PoH and complies to both the IEEE 802.3af and the IEEE 802.3at standards
  • Lightning protection
  • Detects and protects non-standard Ethernet terminals automatically
  • Mounts to a wall, shelf, bench or desktop

What's in the box:

  • NPD-6001B Single-Port 60W High PoE Midspan with AC Input
  • 120V Power Cord
  • 230V Power Cord
  • Quick Installation Guide
  • Bosch 3 Year Limited Warranty
