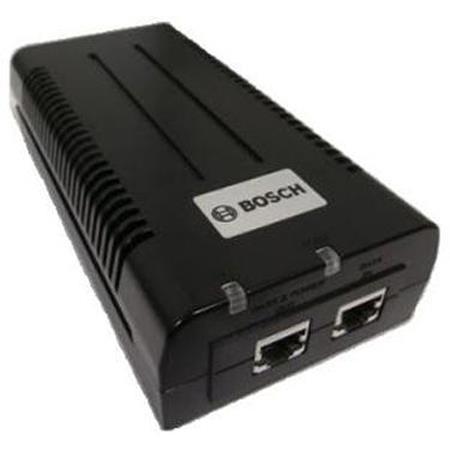

Bosch 95W Single-Port High PoE Midspan with AC Input for MIC7000 Cameras

Bosch sells two (2) models of midspans (a 60 W model and a 95 W model) that enable remote power over an IP network connection for specific Bosch IP cameras. Rated for indoor installation only, the midspans can be installed indoors and wired to a camera installed outdoors. Each midspan has a single port and is designed to carry data and power over a standard CAT5e (or better) cable, delivered through all 4 pairs.

• Supports high-power PoE/PoH and complies to both the IEEE 802.3af and the IEEE 802.3at standards
• 60W and 95W models
• Mounts to a wall, shelf, bench, desktop and to other units

95W Midspan
The 95 W midspan (NPD-9501A) is a high-power PoH (Power Over HDBase T) device that provides data and power between an Ethernet (remote network) switch and a MIC7000 camera. It supports the proposed standard for a 95 W output device and is backwards compatible to both the IEEE 802.3af and the IEEE 802.3at standards (15.4 W and 25.5 W).
