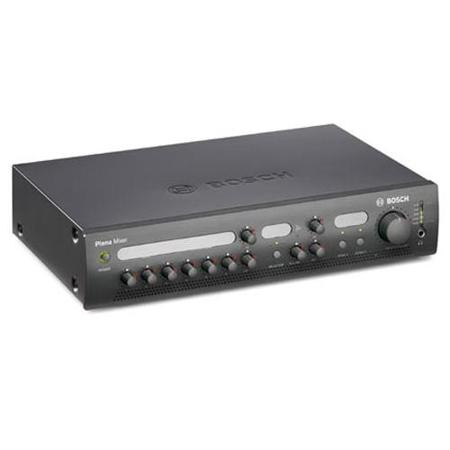

Bosch PLE-10M2-EU 2-Channel Plena Mixer, Charcoal

SKU: BHPLE10M2EU MFR: F.01U.066.938
Earn VIP Reward Points

Key Features

  • Achieve pristine audio with this 2-channel Plena mixer's low noise performance.
  • Enjoy versatile connectivity with multiple inputs on this reliable Bosch mixer.
  • Easily manage sound with intuitive EQ controls for clear, balanced audio output.
  • Use the Plena mixer's durable build for consistent performance in any environment.
  • Optimize your sound setup using rack mountable design for secure integration.
  • Get crystal-clear sound with a wide frequency response, perfect for any application.
See More Product Details
Ships from Manufacturer?
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$119.99

3 Year

$154.99

5 Year

$269.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Bosch PLE-10M2-EU Specifications

Mains Power Supply

Mains Power Supply

Jump to...
  • Voltage

    115/230 VAC, +/-10%, 50/60 Hz

  • Power consumption

    25 VA

Battery Power Supply

Jump to...
  • Voltage

    24 VDC, +/-15%

  • Current

    6A

  • Charge current

    0.5 ADC

  • Charge float voltage

    27.4 VDC

Performance

Jump to...
  • Frequency response

    50 Hz to 20 kHz (+1/-3 dB)

  • Low Control

    Max -12/+12 dB (frequency is level dependent)

  • Hi Control

    Max -12/+12 dB (frequency is level dependent)

2x RJ-45 Input

Jump to...
  • Call station input

    For PLE-2CS(MM)

  • Wall panel input

    For PLE-WP3S2Z

6x Mic/Line Input

Jump to...
  • Input 1

    5-pin Euro style, balanced, phantom
    3-pin XLR, balanced, phantom (Push-to-talk contact with ducking functionality)

  • Input 2-6

    3-pin XLR, balanced, phantom (VOX with ducking functionality on input 2)

  • Sensitivity

    1 mV (mic); 200 mV (line)

  • Impedance

    >1KOhms (mic); >5KOhms (line)

  • Dynamic range

    100 dB

  • S/N (flat at max volume)

    >63 dB (mic); >70 dB (line)

  • S/N (flat at min volume/muted)

    >75 dB

  • CMRR

    >40 dB (50 Hz to 20 kHz)

  • Headroom

    >10 dB

  • Speech filter

    -3 dB at 315 Hz, high-pass, 6 dB/oct

  • Phantom power supply

    16V via 1.2KOhms (mic)

  • VOX (input 1 & 2)

    Attack time 150 minutes; Release time 2 seconds

3x Music Inputs

Jump to...
  • Connector

    Cinch, stereo converted to mono

  • Sensitivity

    200 mV

  • Impedance

    22KOhms

  • S/N (flat at max volume)

    >70 dB

  • S/N (flat at min volume/muted)

    >75 dB

  • Headroom

    >25 dB

2x Zone Outputs

Jump to...
  • Connector

    3-pin XLR, balanced

  • Nominal level

    1V

  • Impedance

    <100 Ohms

1x Emergency / Telephone

Jump to...
  • Connector

    7-pin, Euro style pluggable screw terminal

  • Sensitivity telephone

    100 mV - 1V adjustable

  • Sensitivity 100V

    10V - 100V adjustable

  • Impedance

    >10 KOhms

  • S/N (flat at max volume)

    >65 dB

  • VOX

    Threshold 50 mV; Attack time 150 minutes; Release time 2 seconds

1x Loop Through Insert

Jump to...
  • Connector

    Cinch

  • Nominal level

    1V

  • Impedance

    >10KOhms

1x Master/Music Output

Jump to...
  • Connector

    3-pin XLR, balanced

  • Nominal level

    1V

  • Impedance

    <100 Ohms

Environmental

Jump to...
  • Operating temperature

    -10 to 55 deg. C (14 to 131 deg. F)

  • Storage temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Relative humidity

    <95%

Mechanical

Jump to...
  • Mounting

    Stand-alone, 19" rack

  • Dimensions (HxWxD)

    100 x 430 x 270mm (3.94 x 16.93 x 10.63") (19" wide, 2U high)

  • Weight

    Approx. 10.5kg (23.15 lbs)

  • UPC Code

    800549150392

About Bosch PLE-10M2-EU

From professional sound engineers to audio enthusiasts, the PLE-10M2-EU 2-Channel Plena Mixer stands out as a reliable and high-quality choice for precise audio mixing. This advanced, rack-mountable unit is designed to seamlessly blend up to six microphone or line signals, along with three separate music sources, ensuring a versatile and professional mixing experience.

Each input channel on the PLE-10M2-EU can be finely adjusted for sensitivity, allowing users to tailor the mix to their exact specifications. The master volume control, along with separate high and low tone controls, provides comprehensive command over the final output, delivering a crisp call or crystal-clear music to your audience.

The mixer's digital circuitry is a testament to its advanced design, offering clear and precise sound processing. Enhanced features such as ducking level control and priority settings ensure that important announcements or speeches are heard with clarity, without being overshadowed by background music. The intuitive labelling and setting indicators make operation straightforward, even for those new to audio mixing.

For microphones requiring additional power, phantom power can be activated via a DIP switch, catering to a wide range of condenser microphones. The PLE-10M2-EU also boasts priority input channels, with Input 1 offering a push-to-talk activation complemented by a configurable chime for announcements, and Input 2 featuring VOX activation for automatic switching when a signal is detected.

The unit's versatility extends to its outputs, with a line output that can be dedicated to music-only applications, such as music on hold for telephone systems. Loop through input and output connections allow for the integration of external sound processing equipment, enhancing the audio quality further with devices like an equalizer or a Plena feedback suppressor for crystal-clear, feedback-free speech.

Customization is at the forefront of the PLE-10M2-EU's design, with users able to create and attach custom labels for inputs, music sources, and output zones. Colored pins can be inserted around the volume and tone controls to mark preferred settings for quick recall during various applications.

Monitoring the master output is made easy with an LED meter, and a headphone connector is conveniently located for real-time audio checks. The PLE-10M2-EU also supports a 24 VDC backup power input, ensuring uninterrupted operation during power outages, and is compatible with Plena Power Amplifiers that feature a built-in 24 VDC battery charger, negating the need for a separate charging unit.

The PLE-10M2-EU 2-Channel Plena Mixer by Bosch is a durable and professional solution that promises to elevate any audio setup with its reliable performance and advanced features.

Bosch PLE-10M2-EU Features

  • Advanced rack-mountable 2-Channel Plena Mixer for professional audio mixing
  • Features six microphone/line signal inputs and three separate music sources
  • Equipped with master volume control and separate high/low tone controls for precise sound output
  • Includes enhanced features such as ducking level control and priority settings for clear announcements
  • Supports phantom power for condenser microphones and VOX activation for automatic input switching
  • Offers customization with custom labels and colored pins for preferred settings

Key Features

  • Achieve pristine audio with this 2-channel Plena mixer's low noise performance.
  • Enjoy versatile connectivity with multiple inputs on this reliable Bosch mixer.
  • Easily manage sound with intuitive EQ controls for clear, balanced audio output.
  • Use the Plena mixer's durable build for consistent performance in any environment.
  • Optimize your sound setup using rack mountable design for secure integration.
  • Get crystal-clear sound with a wide frequency response, perfect for any application.

What's in the box:

  • Bosch PLE-10M2-EU 2-Channel Plena Mixer
  • Labels and Colored Pins for Indicating Favorite Settings
  • Power Cord
  • Plena Bonus CD
  • Mounting Brackets (LBC 1901/00)
  • Bosch Warranty
