Bosch PSP-D00040 SPEC RCS Slave
See all Bosch items

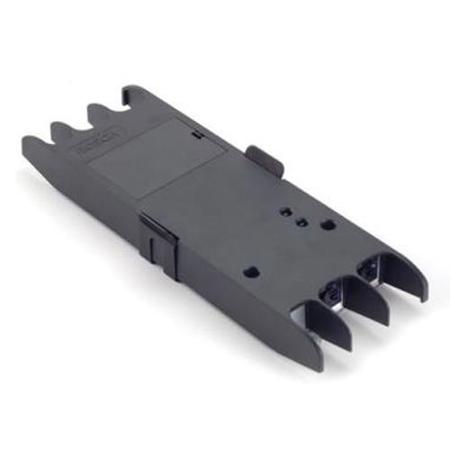

Bosch PSP-D00040 SPEC RCS Slave

SKU: BHPSPD00040
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Bosch PSP-D00040 Specifications

Electrical

Electrical

Jump to...

  • Power consumption

    3.9W (network)

External power supply

Jump to...

  • Voltage

    24 to 56 VDC, 48 VDC nominal

  • Current

    2.5A maximum (5 A peak <2s)

Mounting

Jump to...

  • Mounting

    Bracket (two screws)

Environmental

Jump to...

  • Operating temperature

    -5 to 55 deg. C (23 to 131 deg. F)

  • Storage temperature

    -20 to 70 deg. C (-4 to 158 deg. F)

  • Relative humidity

    15% to 90%

  • Air pressure

    600 to 1100 hPa

General

Jump to...

  • Dimensions (HxWxD)

    Without bracket: 27 x 243 x 80mm (1.06 x 9.57 x 3.15")
    With bracket: 34 x 243 x 84mm (1.34 x 9.57 x 3.31")

  • Weight

    0.7kg (1.54 lbs)

About Bosch PSP-D00040

The PSP-D00040 Slave Redundant network Controller Switch (RCS) unit is special version of the PRS-NSP network splitter, mechanically and electronically identical to the network splitter, but with different firmware to establish an automatic switch-over from a main to a spare network controller. The PSP-D00040 Slave create a redundant controller solution for increased system reliability in situations where the network controllers are more exposed to risks (ships, heavy industry).

Controls and indicators
• Power status LED
• Fault status LED
• Jumpers to configure tap-offs power behavior

Interconnections
• Two system network connections for main network
• Two system network connections to connect to both network controllers
• External power supply input

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Bosch PSP-D00040 SPEC RCS Slave
  • Mounting Bracket
  • Power Supply Connector
  • Bosch Warranty
