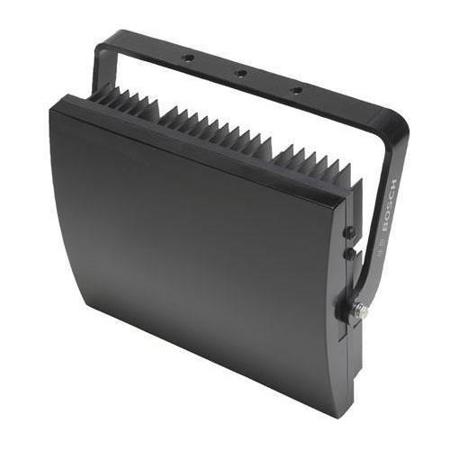

Bosch AEGIS SuperLED Intelligent-IR Illuminator, 10 Degree, 850 nm

AEGIS SuperLED Illuminator
AEGIS illuminators feature Constant Light technology which automatically controls and adjusts light output to compensate for LED degradation and temperature changes. LED degradation results in poor light output, reduced image quality, and reduced illumination range. The Constant Light patent-pending technology maintains a constant level of light throughout the life of the illuminator, thus overcoming this performance-related issue identified by security consultants, installers, and end users alike.

3D Diffuser technology (Black Diamond) micro-refractive lens technology enables increased surveillance range, wider beam patterns, and evenly illuminated night-time surveillance images. Specifically designed for energy efficient operation, AEGIS can be powered directly from any 12 to 24 VDC or 24 VAC supply for faster, flexible, cost effective installations.

Functions

• 3D diffuser technology eliminates hotspots in the foreground and underexposed backgrounds
• Delivers even illumination designed specifically for CCTV
• Dramatically improves night-time imaging, reducing noise and increasing video signal
• When used with encoding and digital recording systems, even illumination reduces bit rate and so lowers storage requirements

Controlled by Constant Light Technology
• Maintains a constant level of lighting performance for the life of the illuminator
• Maintains a constant level of lighting performance when operated at varying ambient temperatures

Installer friendly installation features
• Low voltage input to the illuminator for safe installation
• Illuminator link port allows one illuminator to switch all others in a master/slave configuration
• Dual-mode camera port allows color/mono control from or to the camera
• Easy connection using dedicated cables

High Efficiency Surface Mount LEDs
• Industry-leading thermal management and super highefficient LEDs deliver maximum illumination
