Bosch Ground Loop Isolation Transformer
See all Bosch items

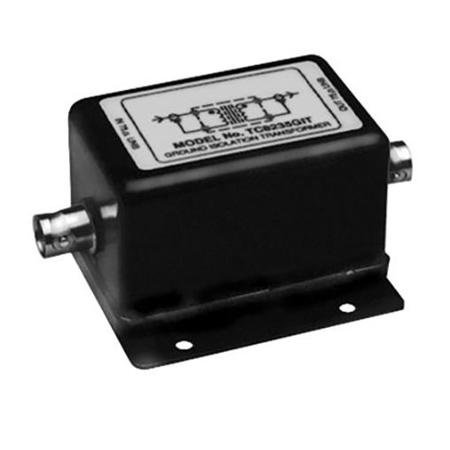

Bosch Ground Loop Isolation Transformer

SKU: BHTC8235GIT

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Bosch Isolation Transformer Specifications

  • Phase

    Linear with slope of 18 MHz, 1 to 5 MHz

  • Ground Loop Isolation

    Ground Isolation: En/Eo = 115 dB at 60 Hz (decreases with frequency at 6 dB/octave to 30 dB minimum at 1 MHz

  • Dielectric (Insulation)

    Dielectric Withstanding Voltage: 500 Vrms, 60 Hz (from connectors to case and each other)

  • Finish

    Black

  • Impedance

    Impedance Levels: 75 Ohm unbalanced, input and output

  • Insertion Loss

    0.5 dB at 1 kHz

  • Return Loss

    Better than 20 dB, 120 Hz to 5 MHz

  • Bandwidth

    Sine Wave Transmission (Bandwidth)

    Amplitude: Flat loss is 0.45 dB maximum at 15 kHz, 3 dB down relative mid-frequency response at 10 Hz and 7 MHz

  • Dimensions (W x H)

    1.7 x 1.6" (43 x 40mm)

  • Weight

    0.5 lb (223g)

  • UPC Code

    800549024310

About Bosch Isolation Transformer

The TC8235GIT is a one-to-one isolation transformer for 75 Ohm coax video/data lines. These units are designed to eliminate the effects of power line and spurious noise potentials between ground points on transmitted signals.

Bosch Isolation Transformer Features

  • Ground isolation for 75 Ohm video/data lines
  • 10 Hz to 7 MHz bandwidth
  • Low insertion loss
  • Insulated BNC connectors
  • Excellent discrimination against power line inter-ground potentials

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ground isolation for 75 Ohm video/data lines
  • 10 Hz to 7 MHz bandwidth
  • Low insertion loss
  • Insulated BNC connectors
  • Excellent discrimination against power line inter-ground potentials

What's in the box:

  • Ground Loop Isolation Transformer
  • Bosch 3 Year Limited Warranty
