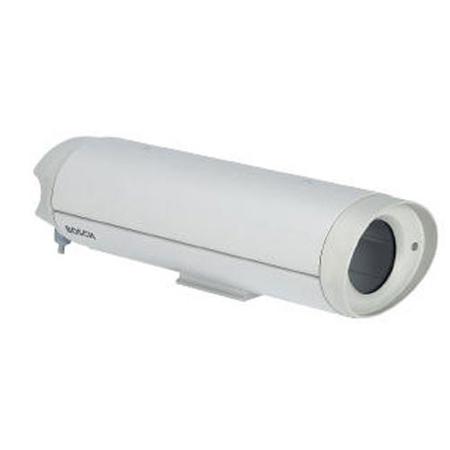

Bosch UHI-OGS-0 Indoor Camera Housing with Sunshield

SKU: BHUHIOGS0

This item is no longer available.

Recommended Alternatives

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Bosch Indoor Housing Specifications

Construction

Construction

Jump to...
  • Rear fitting

    1x Cable diameter 0.16 to 0.28" (4.0 to 7.0mm)
    2x Cable diameter 0.26 to 0.42" (6.5 to 10.5mm)

  • Bottom feeds

    2x Cable diameter 0.16 to 0.28" (4.0 to 7.0mm)

  • Window

    0.12" (3 mm) glass

  • Locking clasps

    Tamper-resistant screws provided

  • Camera power ratings

    24/120/230 VAC, 50/60 Hz, 6.3 A

  • Camera mounting

    Removable camera/lens tray, mounted with two screws

  • Max camera/lens size (H x W x L)

    3.19 x 3.5 x 12.48" (81 x 89 x 317 mm)

  • Material

    Aluminum casing, neoprene gaskets, all stainless steel hardware

  • Mounting

    2x pair of tapped holes
    Thread: 1/4-20
    Inner pair: 2" (50.8 mm) center spread
    Outer pair 2.9" (73.7 mm) center spread

  • Color

    Gray

Environmental

Jump to...
  • Operating Temperature

    -40 - 122 Degree F (-40 - 50 Degree C)

  • Enclosure Rating

    IP66, NEMA-4X

Physical

Jump to...
  • Dimensions (W x H x D)

    6.7 x 6.7 x 18.9" (171 x 171 x 480mm)

  • Weight

    5.1 lb (2.3kg)

About Bosch Indoor Housing

The Indoor Camera Housing is a smartly styled unit, intended for use inside. This housing is both cost-competitive and installer-friendly.

Functions

Easy installation
The unique, hinged, side-opening design provides easy installation of all camera/lens combinations, and allows access to most camera and lens controls when the housing is mounted. Route power, video, and lens control cabling through the liquid-tight fittings in the bottom rear of the housing, or for even better cable management, via the feed-through entry holes in the base. Mounting holes in the base permit installation to a wide range of pan/tilts, adjustable heads, and various camera-mounting brackets.

Dinion ready
This housing supports installation of Dinion style cameras with fixed focal, varifocal, or up to a 15x motorized zoom lens.

Secure
For increased security, the units come with tamper-resistant screws for the locking clasps to prevent illegitimate access to the housing contents. The housing is an optimal solution for protecting your indoor video surveillance applications.

Bosch Indoor Housing Features

  • Protects camera/lens combinations up to 317mm (12.48") length
  • Hinged side opening for easy installation and camera setup
  • Strong aluminum construction
  • Cable routing through base or rear of housing
  • Tamper-resistant

Key Features

  • Protects camera/lens combinations up to 317mm (12.48 in) length
  • Hinged side opening for easy installation and camera setup
  • Strong aluminum construction
  • Cable routing through base or rear of housing
  • Tamper-resistant

What's in the box:

  • UHI-OGS-0 Indoor Camera Housing
  • Sunshield
  • Boach 3 Year Limited Warranty
