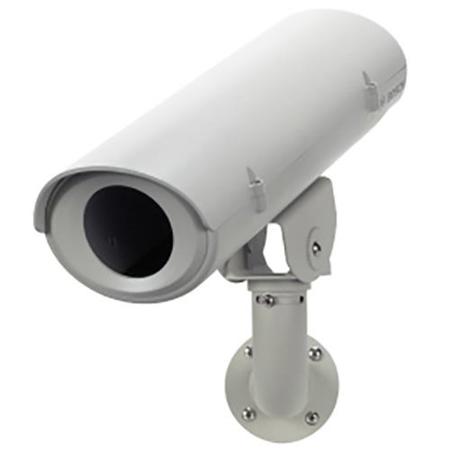

Bosch UHI-SBG-0 Indoor Housing
See all Bosch items

Bosch UHI-SBG-0 Indoor Housing

SKU: BHUHISBG0

This item is no longer available.

Recommended Alternatives

Bosch UHO PoE Housing: Picture 1 regular
Bosch UHO PoE Outdoor Camera Housing for DINION Camera, Gray
$193.19
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Bosch Indoor Housing Specifications

Electrical

Electrical

Jump to...

  • Maximum Camera Power

    Max. 10 W
    24 VAC-230 VAC, 50/60 Hz, 0.5 A

Environmental

Jump to...

  • Temperature

    -10 Degree C (14 Degree F) to 50 Degree C (122 Degree F)

  • Enclosure Protection

    IP30 (indoor use only)

Mechanical

Jump to...

  • Max Camera/Lens Size (W x H x L)

    3.1 x 2.3 x 8.2" (80 x 60 x 210mm)

  • Cable Entry

    Two liquid tight rear fittings accept cable diameters from 6.5 mm to 10.5 mm (0.26" to 0.42"). Two bottom feedthrough liquid tight fittings accept cable diameters from 4.0 mm to 7.0 mm (0.16" to 0.28")

  • Window

    3mm (0.12") thick glass

  • Housing Mounting

    Includes one J-mount. Four (4) available 1/4 -20 tapped holes

  • Camera Mounting

    Includes one J-mount. Four (4) available 1/4 -20 tapped holes

  • Finish

    Dark mushroom

  • Weight

    2.2 lb (1.0kg) including bracket

  • Construction/Finish

    Reinforced with glass fiber ABS, stainless steel hardware

Other

Jump to...

  • UPC Code

    800549085946

About Bosch Indoor Housing

The UHI-SBG-0 Housing is smartly styled for indoor use. This housing meets customers' demands for attractive housings that are both cost competitive and easy to install. They fit a wide range of 1/4 in., 1/3 in., and 1/2 in. format CCD cameras and varifocal lenses.

Functions
The design of these housings is unique. Removal of two tamper-resistant screws is all that is necessary to open the cover and totally expose the camera and lens. This allows access to all camera and lens controls when the camera is in its mounted position. Power and video cabling can be routed through liquid tight fittings in the bottom or rear of the housing. To complete this set, a sturdy aluminum feed-through mount is added.

Bosch Indoor Housing Features

  • Economical indoor housing with mount
  • Aluminum mount included
  • Feed-through wiring option
  • Glass fiber reinforced ABS
  • Accommodates 1/4", 1/3", and 1/2" CCD cameras

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Economical indoor housing with mount
  • Aluminum mount included
  • Feed-through wiring option
  • Glass fiber reinforced ABS
  • Accommodates 1/4-inch, 1/3-inch, and 1/2-inch CCD cameras

What's in the box:

  • UHI-SBG-0 Indoor Housing
  • Aluminum Bracket
  • Bosch 3 Year Limited Warranty
