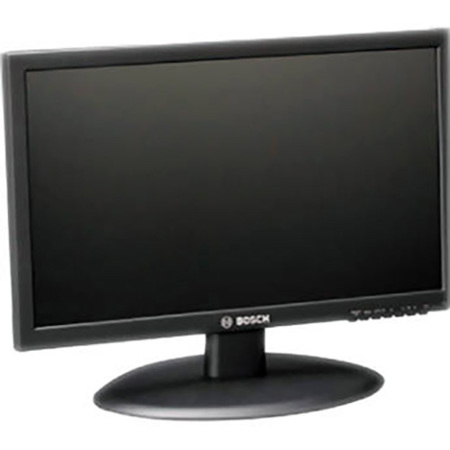

Bosch UML-193-90 19" High Performance HD LED Monitor, Black
See all Bosch items

Bosch UML-193-90 19" High Performance HD LED Monitor, Black

SKU: BHUML19390

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Bosch UML-193-90 LED Monitor Specifications

Electrical

Electrical

Jump to...

  • Rated Voltage

    Monitor: 12 VDC, 3.5 A

  • Power Adapter

    120/230 VAC, 50/60 Hz

  • Voltage Range

    100 to 240 VAC, 50/60 Hz

  • Frequency Range

    Horizontal: 31 to 64 kHz
    Vertical: 50 to 75 Hz

  • Power at Rated Voltage

    42 W (On)
    0.5 W (Active Off)

Video

Jump to...

  • Sync Format

    PAL/NTSC

  • LCD Panel

    LED

  • Viewable Area

    18.51"

  • Active Display Size (H x V)

    16.1 x 9.1" (409.8 x 230.4mm)

  • Pixel Pitch (H x V)

    0.01 x 0.01" (0.30 x 0.30mm)

  • Resolution

    1366 x 768

  • Aspect Ratio

    16:9

  • Display Colors

    16.7 million

  • Response Time

    5 ms (typical)

  • Panel Life

    30,000 hours

LCD Panel

Jump to...

  • Luminance

    250 cd/m2 (typical)

  • Contrast Ratio

    1,000:1 (typical)

  • Viewing Angle

    Horizontal: 170 Degree
    Vertical: 160

  • Input

    VGA (RGB PC): 0.7 Vpp (0.5 to 1 Vrms)

  • Timing

    VGA Input:
    640 x 480 (60 Hz)
    720 x 400 (70 Hz)
    800 x 600 (60 Hz)
    1024 x 768 (60 Hz)
    1280 x 768 (60 Hz)
    1360 x 768 (60 Hz)

    DVI/HDMI Input:
    480i (60 Hz)
    576i (50 Hz)
    480p (60 Hz)
    576p (50 Hz)
    720p (50/60 Hz)
    1080i (50/60 Hz)
    1080p (24/25/30/50/60 Hz)
    640 x 480 (60 Hz)
    720 x 400 (70 Hz)
    800 x 600 (60 Hz)
    1024 x 768 (60 Hz)
    1280 x 768 (60 Hz)
    1360 x 768 (60 Hz)

Input

Jump to...

  • Control Panel

    Push-buttons

  • Source

    HDMI, DVI-D, and VGA

  • Menu Select

    On-screen display (OSD), up cursor, down cursor/auto adjust, left cursor, right cursor

  • Power

    On/Off

  • Control Panel Lockout

    Multiple push-button combination

  • Video Mode

    Input source, Screen, OSD, Utility

  • Indicators

    LED: Power On, Standby (blue)
    Power Off (LED off)

  • Connectors

    Digital: 1 x DVI-D input
    HDMI: 1 x input
    VGA: 1 x RGB 15-pin D-sub input

Environmental

Jump to...

  • Relative Humidity

    0 to 90%

  • Operating Humidity

    32 to 122 Degree F (0 to 50 Degree C)

  • Storage Temperature

    32 to 122 Degree F (0 to 50 Degree C)

Mechanical

Jump to...

  • Cabinet

    Material:SECC

  • Mount

    Wall mounting compatible with standard bracket or desktop mounting with included stand

  • VESA Mount Compatible

    100 x 100mm

  • Dimensions

    Monitor: 17.62 x 10.71 x 1.77" (447.54 x 272.03 x 45.95mm)
    With Stand: 17.62 x 13.07 x 7.16" (447.54 x 331.97 x 181.86mm)

  • Weight

    Monitor: 6.6 lb (2.9kg)

Other

Jump to...

  • UPC Code

    800549697064

About Bosch UML-193-90 LED Monitor

The Bosch High Performance LED monitors offer HD resolution (up to 1080p) and precise color reproduction. These monitors are ideal for use with analog video, digital video recorders (DVRs), and with PC applications. The monitors feature a color LED flat-screen panel and are available with 18.5-inch or 21.5-inch viewable picture areas. Each monitor features a wide range of horizontal and vertical viewing angles that provide comfortable, clear viewing - whether you place it on a desktop or mount it to a wall or to a ceiling.

These monitors use advanced gamma curve correction and enhanced color temperature calibration to deliver a crisp, clear picture with precise color reproduction.

Bosch UML-193-90 LED Monitor Features

  • Support up to 1366 x 768
  • HDMI, DVI, and VGA inputs
  • High contrast ratio 1,000:1
  • Precise color reproduction
  • LED backlight panel for higher luminance and lower power consumption

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Support up to 1366 x 768
  • HDMI, DVI, and VGA inputs
  • High contrast ratio 1,000:1
  • Precise color reproduction
  • LED backlight panel for higher luminance and lower power consumption

What's in the box:

  • UML-193-90 19 " High Performance HD LED Monitor
  • Monitor Stand
  • 2x FS4 x 12 Screws for Monitor Stand
  • 2x 6' (18 m) Power Cords (3-Wire with Grounded Plug : 1 with a U.S Plug Type and 1 with a European Continental Plug Type)
  • Power Adapter
  • 6' (1.8m) DVI-D to DVI-D Cable
  • 6' (1.8m) VGA to VGA (D-Sub) Cable
  • 6' (1.8m) Stereo Cable
  • Installation Manual (English)
  • CD-ROM with Multi-language Installation Manual
  • Bosch 3 Year Limited Warranty
